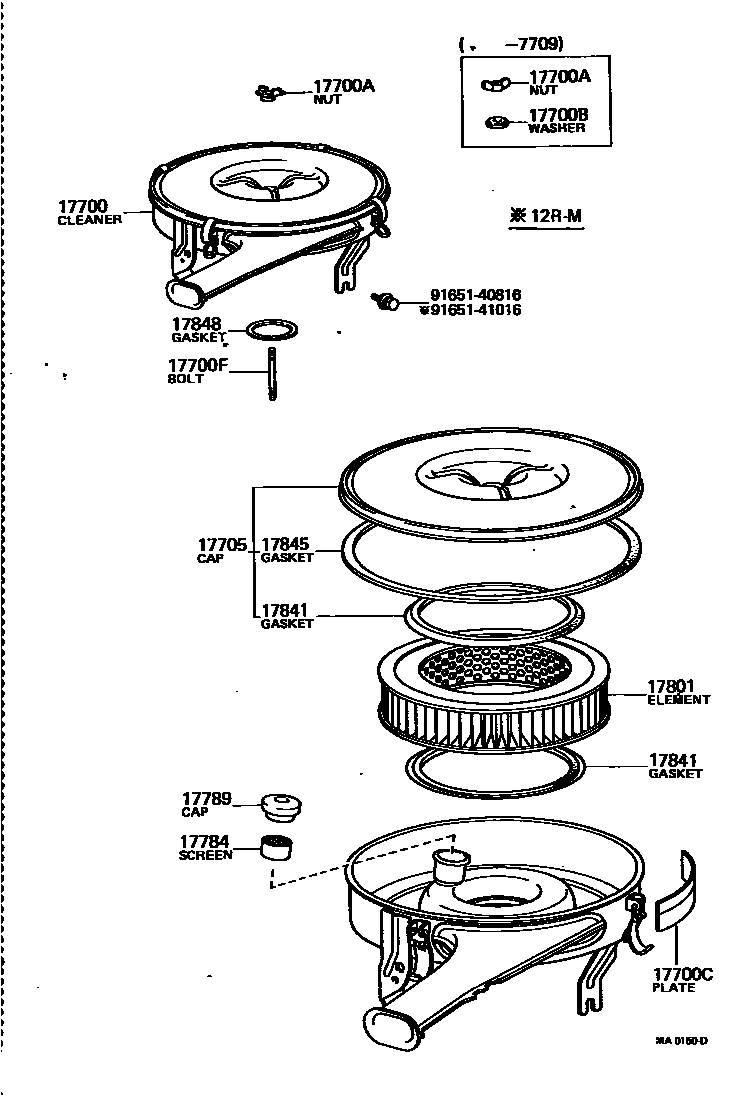

AIR CLEANER

0001 1 0002 1 0004 1 0005 1

17700CLEANER ASSY, AIR

main17700-31163i12R..RT100,116197308-197511

W/PCV

main17700-31164i12R..RT100,116197511-197709

main17700-31165i12R..RT100,116197709-197808

main17700-31182i12R..RT100,110,116197308-197511

L/PCV

main17700-31260i12RM..RT100,110,116197512-197709

main17700-31261i12RM..RT100,116197709-197808

main17700-34192i16R..RT102,112,117..EUR,GEN197308-197404

ARCTIC

main17700-34193i16R..RT102,112,117..EUR,GEN197404-197506

ARCTIC

main17700-34194i16R..RT102,112,117..EUR,GEN197506-197509

ARCTIC

main17700-34202i16R,18R..RT102,104,112,117,118..ARL,EUR,GEN197308-197404

main17700-34203i16R,18R..RT102,104,112,117,118..ARL,EUR,GEN197404-197509

sub17700-34204

main17700-34354i18RC..RT104,118197704-197808

sub17700-34355

main17700-34370i18R#..RT104,114,118..ARL,EUR,GEN197508-197512

L/HOT AIR INTAKE

sub90917-07069

main17700-34371i18RC..RT104,118197701-197704

L/HOT AIR INTAKE

main17700-34380i16R,18R..RT102,104,112,114,117,118197508-197607

W/HOT AIR INTAKE

sub90917-07069

main17700-34381i16R,18R..RT102,104,114,118197607-197701

W/HOT AIR INTAKE

main17700-34410i18R..RT104,118..ARL197704-197905

18RC

sub17700-34630

main17700-36190i18R..RT104,114,118197701-197905

L/HOT AIR INTAKE

sub17700-34550

main17700-36200i18R..RT104,114,118197701-197905

W/HOT AIR INTAKE

17700ANUT, WING(FOR AIR CLEANER)

main90175-06003i12R#,16R,18R#..RT10#,11#197709-197905

main90175-06026i16R,18R#..RT102,104,114,118197701-197706

main94271-00600i12R#..RT100,116197701-197709

17700BWASHER, SEAL(FOR AIR CLEANER)

main90210-06023i12R,16R,18R..RT10#,11#197308-197509

main90210-09026i16R,18R#..RT102,104,114,118197701-197706

17700CPLATE, AIR CLEANER CAUTION (FOR ENGINE MODEL)

main90917-07052i16R,18R..RT102,104,112,114,117,118197308-197404

main90917-07053i12R,16R,18R..RT10#,11#197404-197509

sub90917-07079

main90917-07070i16R,18R#..RT102,104,114,118197607-197905

sub90917-07084

17700FBOLT, STUD(FOR AIR CLEANER SETTING)

main90116-06142i12R#..RT100,110,116197308-197808

L=88,S=12&25

main90116-06143i16R,18R..RT102,104,112,114,117,118197404-197509

L=62,S=12&25

main90116-06222i16R,18R..RT102,104,112,114,117,118197308-197404

L=80,S=12&28

17705CAP SUB-ASSY, AIR CLEANER

main17705-31030i12R..RT100,110,116197308-197511

L/PCV

sub17705-23040

main17705-31031i12R#..RT100,110,116197512-197709

main17705-31032i12R#..RT100,116197709-197808

sub17705-31033

main17705-34070i16R,18R..RT102,104,112,114,117,118197308-197404

main17705-34071i16R,18R..RT102,104,112,114,117,118197404-197509

main17705-34141i18RC..RT104,118197704-197808

sub17705-34191

main17705-34160i18RC..RT104,118197701-197704

main17705-34190i16R,18R..RT102,104,114,118197701-197905

17784SCREEN, AIR CLEANER

main17784-31010i16R,18R..RT102,104,112,117,118..ARL,EUR,GEN197308-197509

17789CAP, AIR CLEANER SCREEN

main17789-31010i16R,18R..RT102,104,112,117,118..ARL,EUR,GEN197308-197509

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-25010i12R..RT100,116197608-197808

main17801-31010i12R#..RT100,110,116197308-197608

main17801-33030i16R,18R..RT102,104,112,114,117,118197308-197509

main17801-34060i16R,18R#..RT102,104,114,118197708-197905

17841GASKET, FILTER ELEMENT

main17841-21010i12R..RT100,110,116197308-197511

CASE SIDE L/PCV

main17841-31020×2i12R#..RT100,110,116197308-197808

main17841-33011×2i16R,18R..RT102,104,112,114,117,118197308-197509

17845GASKET, AIR CLEANER CAP

main17845-31020i12R#..RT100,110,116197308-197808

sub17845-25010

main17845-33010i16R,18R#..RT102,104,114,118197509-197607

main17845-33011i16R,18R#..RT102,104,114,118197607-197905

sub17845-42010

17848GASKET, AIR CLEANER TO CARBURETOR

main90430-63187i12R#..RT100,110,116197308-197808

main90430-72114i16R,18R..RT102,104,112,114,117,118197308-197509

9165140816

main91651-40816

9165141016

main91651-41016

14 parts on this diagram · 4 diagrams in section
