CRANKSHAFT & PISTON

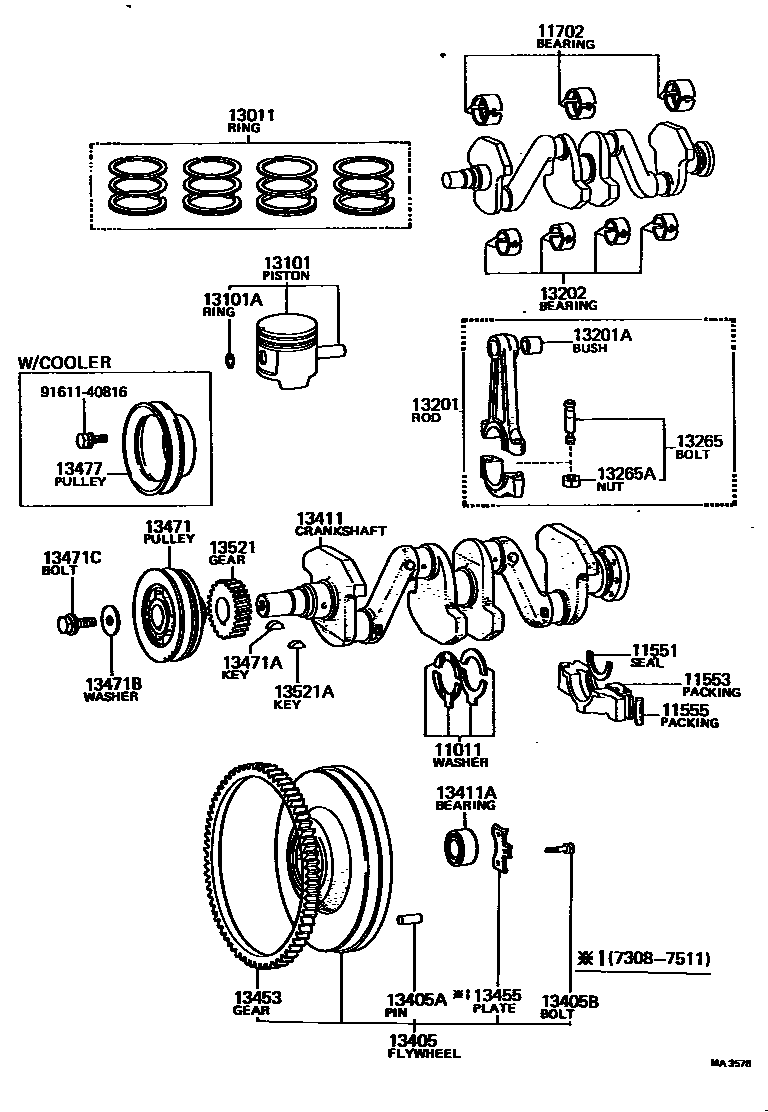

Parts diagram
11011WASHER SET, CRANKSHAFT THRUST
main11011-31020i197308-197804
STD
main11011-31030i197804-197808
STD
main11011-38010i197701-197905
STD,STD
main11012-31020i197308-197804
O/S 0.125
main11012-31030i197804-197808
O/S 0.125
main11012-38010i197701-197905
O/S 0.125,O/S 0.125
main11013-31020i197308-197804
O/S 0.25
main11013-31030i197804-197808
O/S 0.25
main11013-38010i197701-197905
O/S 0.250,O/S 0.25
main11014-31020i197308-197804
O/S 0.50
main11014-31030i197804-197808
O/S 0.50
11551SEAL, CRANKSHAFT OIL, REAR
main11551-31010×2i197308-197808
GP-672 -1B
11553PACKING, BEARING CAP
main11553-31010×2i197308-197808
11555PACKING, BEARING CAP SIDE, NO.1
main11555-23010×2i197308-197808
11702BEARING SET, CRANKSHAFT
main11702-31020i197308-197808
STD
main11702-33011i197308-197509
STD
main11702-33012i197701-197905
STD
main11703-31020i197308-197808
U/S 0.05
main11704-31020i197308-197808
U/S 0.25
main11704-33011i197308-197509
U/S 0.25
main11704-33012i197701-197905
U/S 0.25
main11705-31020i197308-197808
U/S 0.50
main11705-33011i197509-197701
U/S 0.50
main11705-33012i197701-197905
U/S 0.50
main11706-31020i197308-197511
U/S 0.75
main11706-33011i197308-197509
U/S 0.75
main11707-31020i197308-197511
U/S 1.00
main11707-33011i197308-197509
U/S 1.00
13011RING SET, PISTON
main13011-31060i197308-197701
STD
main13011-31061i197701-197808
STD
main13011-31070i197308-197701
STD 3PCS.
main13011-34022i197509-197701
STD
main13011-34023i197701-197704
STD
main13011-38020i197704-197905
STD,STD
main13012-31060i197308-197511
O/S 0.25
main13012-31070i197308-197511
O/S 0.25 3PCS.
main13012-34022i197308-197509
O/S 0.25
main13013-31060i197308-197701
O/S 0.50
main13013-31061i197701-197808
O/S 0.50
main13013-31070i197308-197701
O/S 0.50 3PCS.
main13013-34022i197509-197701
O/S 0.50
main13013-34023i197701-197704
O/S 0.50
main13013-38010i197704-197905
O/S 0.50,O/S 0.50
main13014-31060i197308-197701
O/S 0.75
main13014-31061i197701-197808
O/S 0.75
main13014-31070i197308-197701
O/S 0.75 3PCS.
main13014-34022i197308-197509
O/S 0.75
main13015-31060i197308-197701
O/S 1.00
main13015-31061i197701-197808
O/S 1.00
main13015-31070i197308-197701
O/S 1.00 3PCS.
main13015-34022i197308-197509
O/S 1.00
main13015-34023i197701-197704
O/S 1.00
main13015-38010i197704-197905
O/S 1.00,O/S 1.00
main13016-31060i197308-197511
O/S 1.25
main13016-31070i197308-197511
O/S 1.25 3PCS.
main13017-31060i197308-197511
O/S 1.50
main13017-31070i197308-197511
O/S 1.50 3PCS.
13101PISTON SUB-ASSY, W/PIN
main13101-31020×4i197308-197701
STD
main13101-31021×4i197701-197805
STD
main13101-31022×4i197805-197808
STD
main13101-34010×4i197308-197509
STD
main13101-34030×4i197703-197905
STD
main13101-36020×4i197308-197509
STD
main13101-36030×4i197703-197905
STD
main13102-31020×4i197308-197511
O/S 0.25
main13102-34010×4i197509-197605
O/S 0.25
main13103-31020×4i197308-197701
O/S 0.50
main13103-31021×4i197701-197805
O/S 0.50
main13103-31022×4i197805-197808
O/S 0.50
main13103-34010×4i197308-197509
O/S 0.50
main13103-34030×4i197605-197703
O/S 0.50
main13103-36020×4i197308-197509
O/S 0.50
main13103-36030×4i197703-197905
O/S 0.50
main13104-31020×4i197308-197701
O/S 0.75
main13104-31021×4i197701-197805
O/S 0.75
main13104-31022×4i197805-197808
O/S 0.75
main13104-34010×4i197308-197509
O/S 0.75
main13105-31020×4i197308-197701
O/S 1.00
main13105-31021×4i197701-197805
O/S 1.00
main13105-31022×4i197805-197808
O/S 1.00
main13105-34010×4i197509-197605
O/S 1.00
main13105-34030×4i197703-197905
O/S 1.00
main13105-36020×4i197308-197509
O/S 1.00
main13105-36030×4i197703-197905
O/S 1.00
main13106-31020×4i197308-197511
O/S 1.25
main13107-31020×4i197308-197511
O/S 1.50
13101ARING, HOLE SNAP(FOR PISTON PIN)
main90521-23051×8i197308-197808
main90521-25105×8i197509-197905
13201ROD SUB-ASSY, CONNECTING
main13201-31010×4i197308-197808
main13201-34012×4i197509-197905
main13201-36020×4i197509-197905
13201ABUSH(FOR CONNECTING ROD SMALL END)
main90999-73027×4i197308-197808
main90999-73048×4i197308-197509
main90999-73072×4i197510-197905
13202BEARING SET, CONNECTING ROD
main13202-31020i197308-197808
STD
main13202-33011i197308-197509
STD
main13203-31020i197308-197808
U/S 0.05
main13204-31020i197308-197808
U/S 0.25
main13204-33011i197308-197509
U/S 0.25
main13205-31020i197308-197808
U/S 0.50
main13205-33011i197509-197905
U/S 0.50
main13206-31020i197308-197511
U/S 0.75
main13206-33011i197308-197509
U/S 0.75
main13207-31020i197308-197511
U/S 1.00
main13207-33011i197308-197509
U/S 1.00
13265BOLT, CONNECTING ROD
main13265-39015×8i197308-197808
main13265-39025×8i197509-197905
13265ANUT, HEXAGON(FOR CONNECTING ROD BOLT)
main90170-09195×8i197308-197808
main90170-10198×8i197308-197509
13405FLYWHEEL SUB-ASSY
main13405-39016i197509-197511
N=115
main13405-39017i197511-197905
N=115
main13405-39025i197308-197311
N=125
main13405-39026i197311-197401
N=125
main13405-39036i197308-197312
N=115
main13405-39037i197509-197905
N=115
main13405-39055i197401-197512
N=125
main13405-39056i197803-197808
N=125
13405APIN, STRAIGHT(FOR FLYWHEEL)
main90250-08054×2i197308-197509
L=23,OD=8,L=23,OD=8
13405BBOLT, FLYWHEEL SETTING
main90105-10042×6i197308-197509
main90913-01001×6i197308-197311
main90913-01010×6i197311-197808
13411CRANKSHAFT
main13411-31902i197308-197808
main13411-34903i197308-197509
main13411-34905i197807-197905
main13411-36021i197509-197905
13411ABEARING(FOR INPUT SHAFT FRONT)
main97143-06201i197509-197905
6201 VV C3
13453GEAR, FLYWHEEL RING
main13453-20010i197509-197905
N=115
main13453-30010i197308-197808
N=125
13455PLATE, FLYWHEEL BOLT LOCK, NO.1
main13455-31010×2i197308-197311
13471PULLEY, CRANKSHAFT
main13407-31021i197308-197409
main13407-31022i197409-197511
main13407-31023i197511-197804
main13407-31024i197804-197807
main13407-31025i197807-197905
main13471-33010i197308-197404
main13471-34012i197509-197701
main13471-34013i197701-197905
main13471-34023i197308-197412
W/COOLER
main88451-20041i197308-197511
W/COOLER
13471AKEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET)
main90280-05010i197411-197509
main95161-10519i197411-197808
13471BWASHER, PLATE(FOR CRANKSHAFT PULLEY SET)
main90209-13059i197308-197808
13471CBOLT(FOR CRANKSHAFT PULLEY SET)
main90105-12050i197308-197808
main90105-14003i197702-197905
main90105-14048i197308-197509
13477PULLEY, CRANKSHAFT, NO.2
main13477-31010i197511-197808
W/COOLER
main88451-20060i197701-197905
W/COOLER
13521GEAR OR SPROCKET, CRANKSHAFT TIMING
main13521-31010i197308-197511
N=25
main13521-31011i197511-197808
N=25
main13521-33010i197308-197509
N=18
13521AKEY(FOR CRANKSHAFT TIMING GEAR)
main90280-05010i197308-197411
main95161-10519i197411-197808
9161140816
main91611-40816
