ENGINE OVERHAUL GASKET KIT

0001 1 0002 1

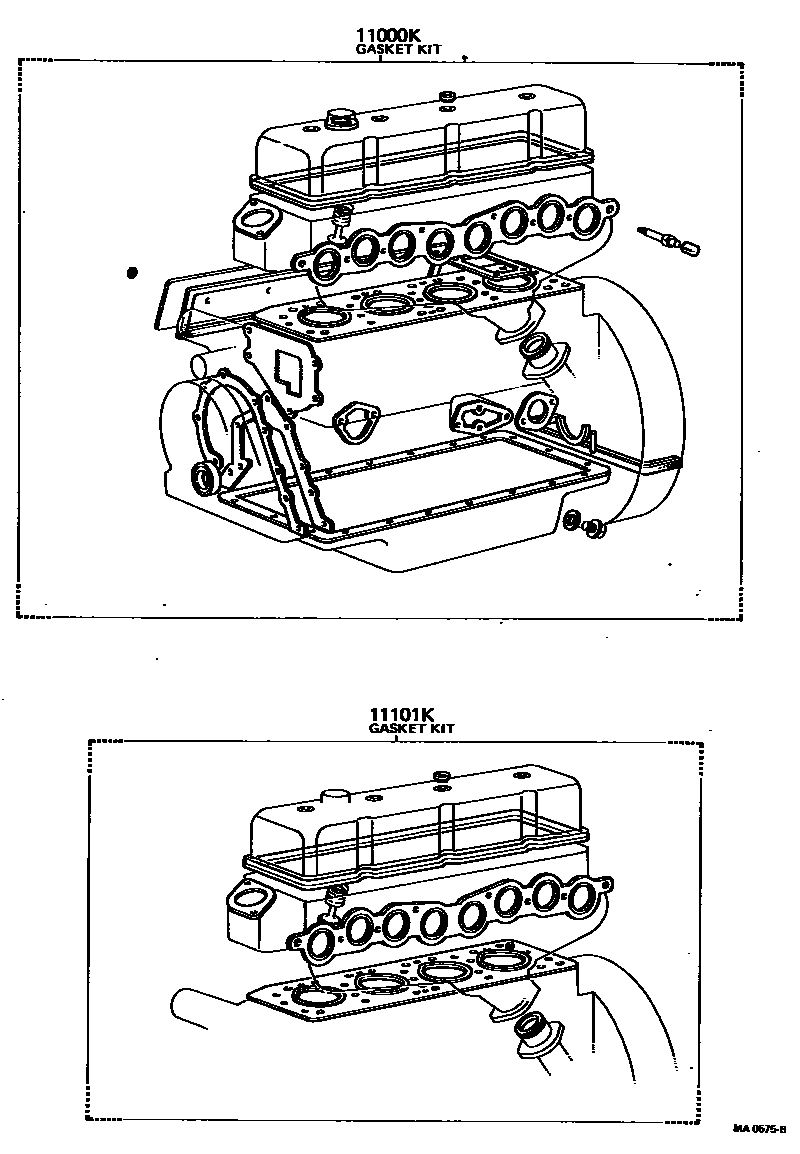

11000KGASKET KIT, ENGINE OVERHAUL

main04111-31020i12R..RT100,110,116197308-197511

main04111-31030i12R#..RT100,110,116197511-197701

main04111-31031i12R#..RT100,116197701-197802

main04111-31032i12R#..RT100,116197802-197808

main04111-34061i18RC..RT104,118197704-197708

main04111-34062i16R,18R#..RT102,104,114,118197712-197905

main04111-34080i16R,18R#..RT102,104,114,118197708-197712

main04111-36010i16R,18R..RT102,104,112,114,117,118197308-197509

main04111-36011i18RC..RT104,118197701-197704

main04111-36012i16R,18R..RT102,104,114,118197701-197708

11101KGASKET KIT, ENGINE VALVE GRIND

main04112-31020i12R..RT100,110,116197308-197511

main04112-31030i12R#..RT100,110,116197511-197701

main04112-31031i12R#..RT100,116197701-197802

main04112-31032i12R#..RT100,116197802-197808

main04112-34051i18RC..RT104,118197704-197708

main04112-34060i16R,18R#..RT102,104,114,118197708-197905

main04112-36010i16R,18R..RT102,104,114,118197704-197708

2 parts on this diagram · 2 diagrams in section
