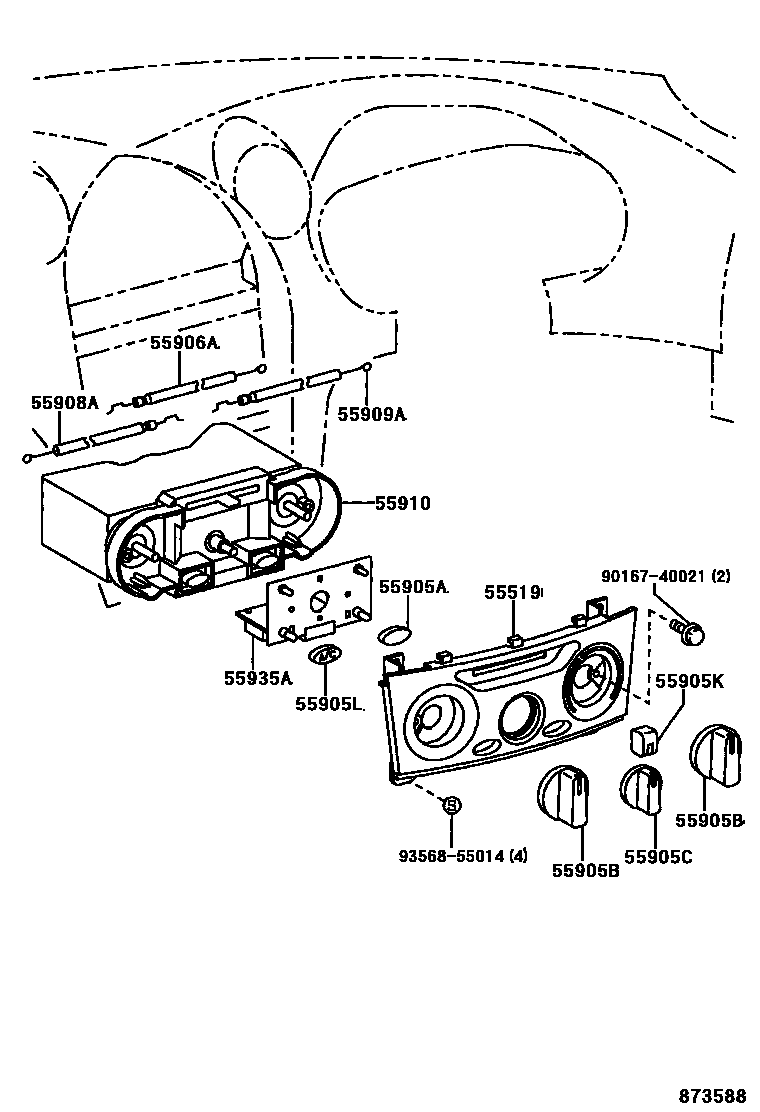

HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

0001 1CONTROL 0002 1AIR DUCT

55519PLATE, HEATER CONTROL NAME

main55519-20330iZZT231199908-200208

main55519-20350iZZT231200208-200509

55905AKNOB, HEATER CONTROL

main55905-2B730iZZT231199908-200208

main55905-2B820iZZT231200208-200509

55905BKNOB, HEATER CONTROL, NO.2

main55905-2B080×2iZZT231199908-200208

main55905-2B750×2iZZT231200208-200509

55905CKNOB, HEATER CONTROL, NO.3

main55905-2B090iZZT231199908-200208

main55905-2B760iZZT231200208-200509

55905KKNOB, HEATER CONTROL, NO.4

main55905-2B700iZZT231199908-200208

main55905-2B790iZZT231200208-200509

55905LKNOB, HEATER CONTROL, NO.5

main55905-2B710iZZT231199908-200208

main55905-2B800iZZT231200208-200509

55906ACABLE SUB-ASSY, DEFROSTER DAMPER CONTROL

main55906-20310iZZT231199908-200208

55908ACABLE SUB-ASSY, AIR INLET DAMPER CONTROL

main55908-20190iZZT231199908-200208

55909ACABLE SUB-ASSY, AIRMIX DAMPER CONTROL

main55909-20260iZZT231199908-200208

55910CONTROL ASSY, HEATER OR BOOST VENTILATOR

main55910-20680iZZT231199908-200208

main55910-20700iZZT231200208-200509

55935ACIRCUIT, CENTER CLUSTER MODULE

main84020-20040iZZT231199908-200208

main84020-20080iZZT231200208-200509

9016740021

main90167-40021

9356855014

main93568-55014

13 parts on this diagram · 2 diagrams in section
