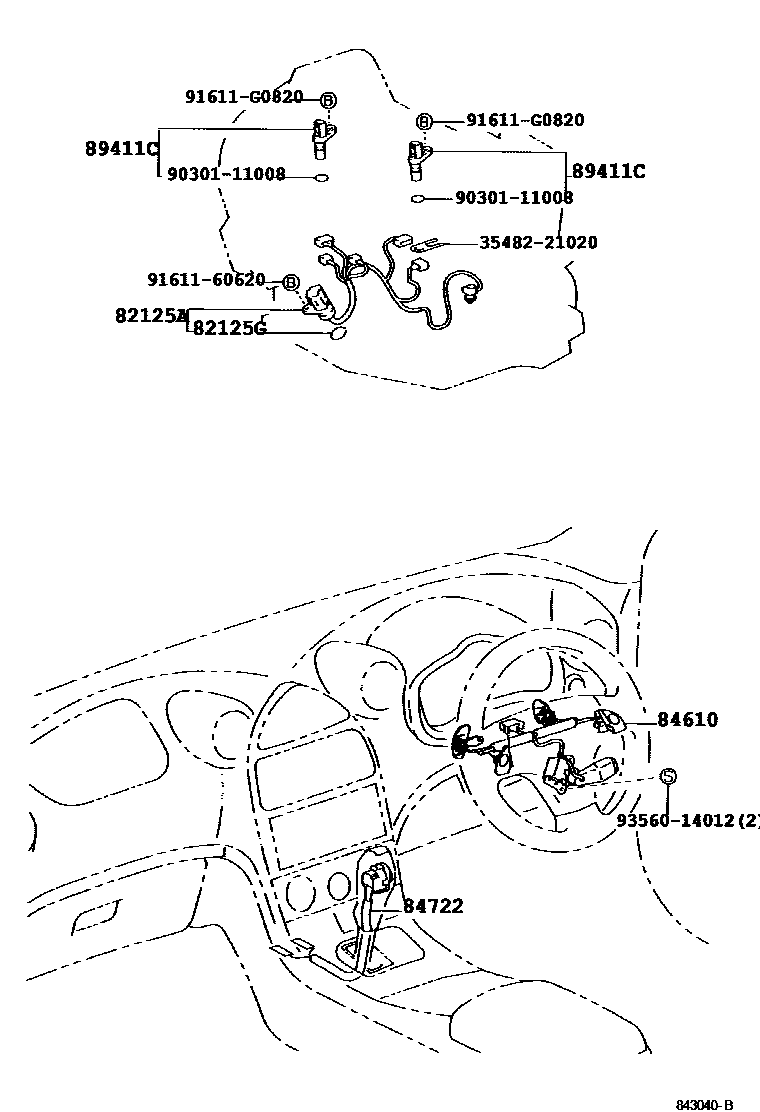

OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION

82125AWIRE, TRANSMISSION

main82125-21030iZZT231..4FC199908-200110

main82125-28180iZZT231..4FC200110-200208

82125GRING, O(FOR TRANSMISSION WIRE)

main90301-21009iZZT231..4FC199908-200208

84610SWITCH ASSY, TRANSMISSION SHIFT

main84610-20020iZZT231..4FC199908-200208

main84610-20021iZZT231..4FC200409-200509

84722SWITCH, TRANSMISSION CONTROL

main84722-20200iZZT231..4FC199908-200206

main84722-20201iZZT231..4FC200206-200208

89411CSENSOR, SPEED

main89411-33010×2iZZT231..4FC199908-200208

TOYOTA

main89413-24010×2iZZT231..4FC200208-200509

AISIN

3548221020VALVE, GOVERNOR

main35482-21020

9030111008

main90301-11008

9161160620

main91611-60620

91611G0820

main91611-G0820

9356014012

main93560-14012

10 parts on this diagram · 1 diagram in section
