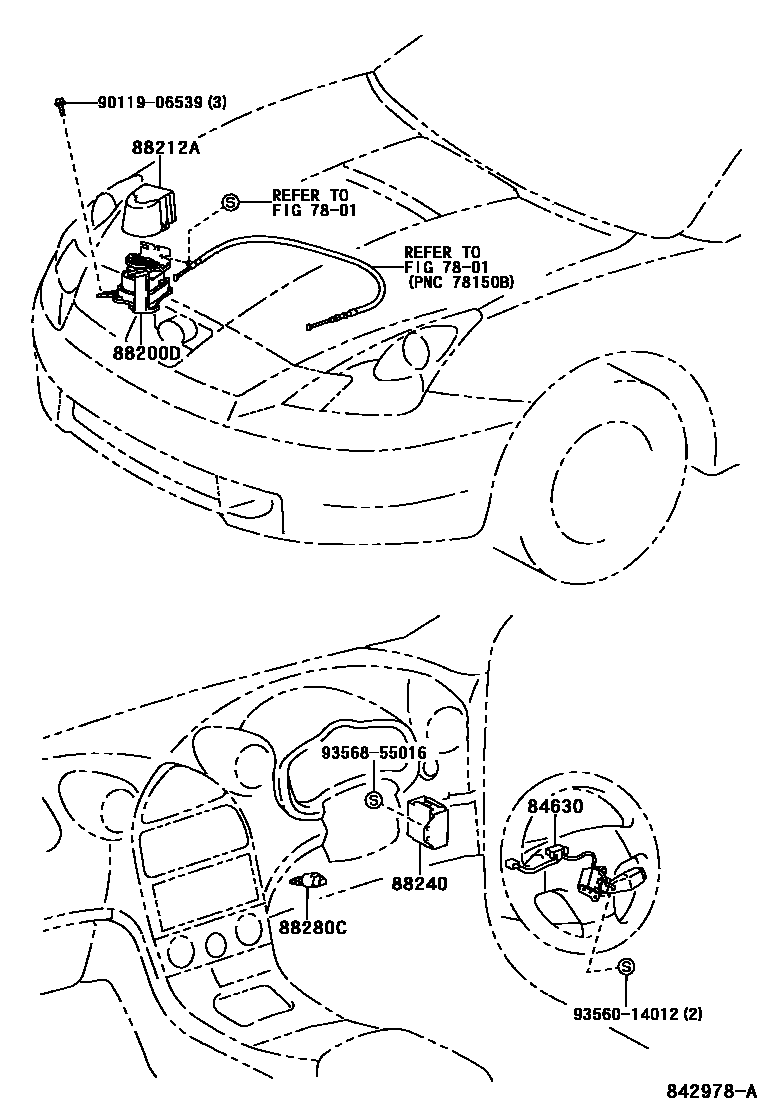

CRUISE CONTROL (AUTO DRIVE)

7801ACCELERATOR LINK

→ Go to FIG 78-01

84630SWITCH ASSY, CRUISE CONTROL MAIN

main84630-20150iZZT231..6F199908-200208

main84630-20151iZZT231..6F200409-200509

88200DACTUATOR ASSY, CRUISE CONTROL

main88200-20170iZZT231199908-200208

88212ACOVER, CRUISE CONTROL ACTUATOR

main88212-42010iZZT231199908-200208

88240COMPUTER ASSY, CRUISE CONTROL

main88240-20450iZZT231..6F199908-199912

main88240-20451iZZT231..6F200208-200509

main88240-20460iZZT231..4FC199908-199912

main88240-20461iZZT231..4FC199912-200208

88280CSWITCH ASSY, CLUTCH

main88280-14030iZZT231..6F199908-200208

9011906539

main90119-06539

9356014012

main93560-14012

9356855016

main93568-55016

9 parts on this diagram · 1 diagram in section
