WIRING & CLAMP

0001 1ENGINE ROOM 0002 1ENGINE 0003 1COWL & INSTRUMENT PANEL 0004 1DOOR & ROOF 0005 1FLOOR & LUGGAGE 0006 1CABLE BOND 0007 1CLAMP & BRACKET 0008 1CONNECTOR

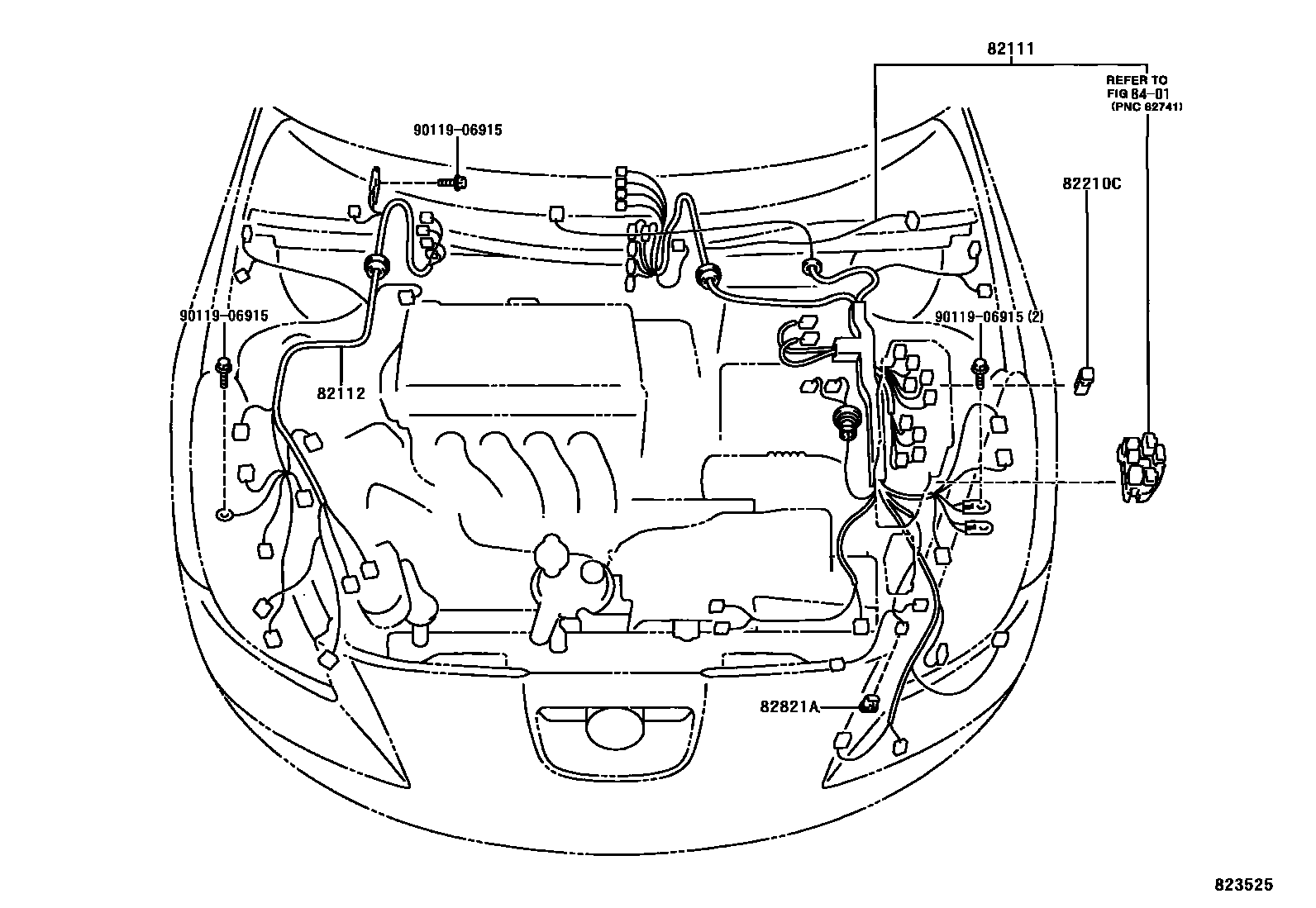

82111WIRE, ENGINE ROOM MAIN

main82111-2L540iZZT231199908-200009

main82111-2L541iZZT231200009-200108

main82111-2L542iZZT231200108-200208

main82111-2L543iZZT231200208-200509

main82111-2L550iZZT231199908-200009

W(ABS)

main82111-2L551iZZT231200009-200108

W(ABS)

main82111-2L552iZZT231200108-200208

W(ABS)

main82111-2L553iZZT231200208-200509

W(ABS)

main82115-20160iZZT231200208-200509

W(DISCHARGE HEADLAMP)

main82115-20170iZZT231200208-200509

W(ABS & DISCHARGE HEADLAMP)

82112WIRE, ENGINE ROOM, NO.2

main82112-20400iZZT231199908-200208

main82112-20401iZZT231200208-200509

main82112-20490iZZT231200208-200509

W(DISCHARGE HEADLAMP)

82210CFUSIBLE LINK

main90982-08283iZZT231199908-200208

30A,TERM.:FEMALE,PNK

main90982-08284iZZT231199908-200208

40A,TERM.:FEMALE,GRN

main90982-08285iZZT231199908-200208

50A,FEMALE,RED,32VDC

82821ACOVER, CONNECTOR

main82821-10050iZZT231199908-200208

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9011906915

main90119-06915

6 parts on this diagram · 8 diagrams in section
