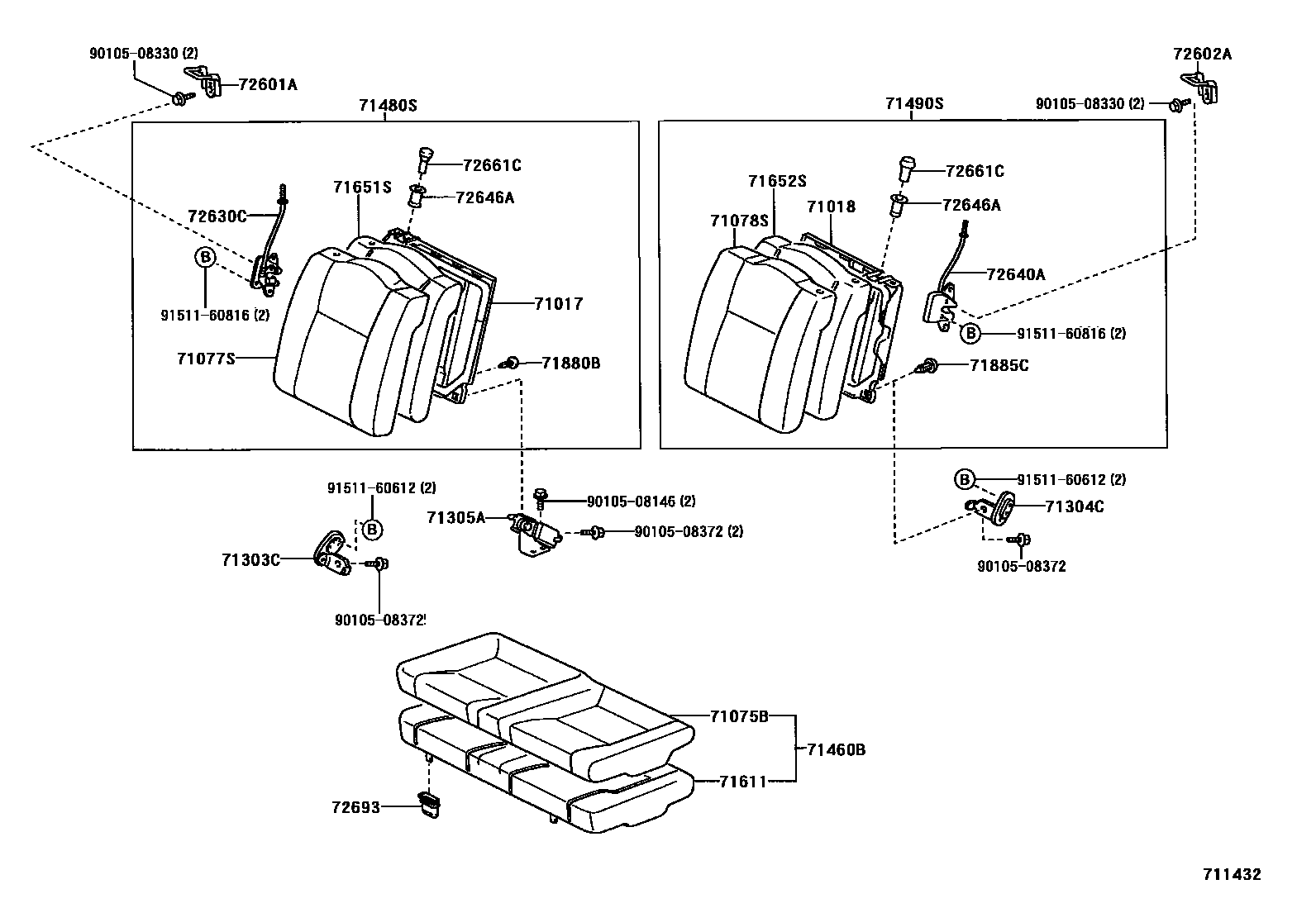

REAR SEAT & SEAT TRACK

0001 1 0002 1

71017FRAME SUB-ASSY, REAR SEATBACK, RH

main71017-20640iZZT231199908-200208

71018FRAME SUB-ASSY, REAR SEATBACK, LH

main71018-20270iZZT231199908-200208

71075BCOVER, REAR SEAT CUSHION (FOR BENCH TYPE)

main71075-2D010-B0iZZT231199908-200208

AMETHYST,TRIM20,21,22

main71075-2D130-C1iZZT231200208-200407

BLACK,TRIM20,21,22

main71075-2D131-C2iZZT231200408-200509

BLACK,TRIM20,21,22

71077SCOVER, REAR SEATBACK, RH (FOR SEPARATE TYPE)

main71077-2H060-B1iZZT231199908-200208

AMETHYST,TRIM20,21,22

main71077-2H061-C1iZZT231200208-200509

BLACK,TRIM20,21,22

71078SCOVER, REAR SEATBACK, LH(FOR SEPARATE TYPE)

main71078-2B740-B1iZZT231199908-200208

AMETHYST,TRIM20,21,22

main71078-2B741-C1iZZT231200208-200509

BLACK,TRIM20,21,22

71303CHINGE SUB-ASSY, REAR SEATBACK, RH

main71303-20140iZZT231199908-200208

71304CHINGE SUB-ASSY, REAR SEATBACK, LH

main71303-20140iZZT231199908-200208

71305AHINGE SUB-ASSY, REAR SEATBACK, CENTER

main71305-20250iZZT231199908-200208

71460BCUSHION ASSY, REAR SEAT (FOR BENCH TYPE)

main71460-2D180-C0iZZT231199908-200208

BLACK,TRIM20,21,22

71480SBACK ASSY, REAR SEAT, RH (FOR SEPARATE TYPE)

main71480-2H500-C0iZZT231199908-200208

BLACK,TRIM20

71490SBACK ASSY, REAR SEAT, LH (FOR SEPARATE TYPE)

main71490-2D260-C0iZZT231199908-200208

BLACK,TRIM20

71611PAD, REAR SEAT CUSHION

main71503-20200iZZT231199908-200208

main71503-20210iZZT231200208-200509

71651SPAD, REAR SEATBACK, RH(FOR SEPARATE TYPE)

main71651-20760iZZT231199908-200208

71652SPAD, REAR SEATBACK, LH(FOR SEPARATE TYPE)

main71652-20500iZZT231199908-200208

71880BCLIP(FOR REAR SEATBACK CARPET)

main90467-06016-B9×5iZZT231199908-200208

AMETHYST,TRIM20,21,22

main90467-06016-P2×5iZZT231200208-200509

DK.GRAY,TRIM20,21,22

71885CCLIP(FOR REAR SEATBACK CARPET)

main90467-06016-B9×5iZZT231199908-200208

AMETHYST,TRIM20,21,22

main90467-06016-P2×5iZZT231200208-200509

DK.GRAY,TRIM20,21,22

72601ASTRIKER SUB-ASSY, REAR SEATBACK LOOK, RH

main72601-20100iZZT231199908-200208

72602ASTRIKER SUB-ASSY, REAR SEATBACK LOCK, LH

main72601-20100iZZT231199908-200208

72630CLOCK ASSY, REAR SEATBACK, RH

main72630-20270iZZT231199908-200208

72640ALOCK ASSY, REAR SEATBACK, LH

main72640-20220iZZT231199908-200208

72646AGROMMET, REAR SEATBACK STOP BUTTON

main72646-20020-B0×2iZZT231199908-200208

AMETHYST,TRIM20,21,22

main72646-20020-B1×2iZZT231200208-200509

DK.GRAY,TRIM20,21,22

72661CBUTTON, REAR SEATBACK LOCK RELEASE

main72661-32030-B1×2iZZT231199908-200208

AMETHYST,TRIM20,21,22

main72661-32030-B3×2iZZT231200208-200509

DK.GRAY,TRIM20,21,22

72693HOOK, REAR SEAT CUSHION LOCK

main72693-20060×2iZZT231199908-200208

9010508146

main90105-08146

9010508330

main90105-08330

9010508372

main90105-08372

9151160612

main91511-60612

9151160816

main91511-60816

28 parts on this diagram · 2 diagrams in section
