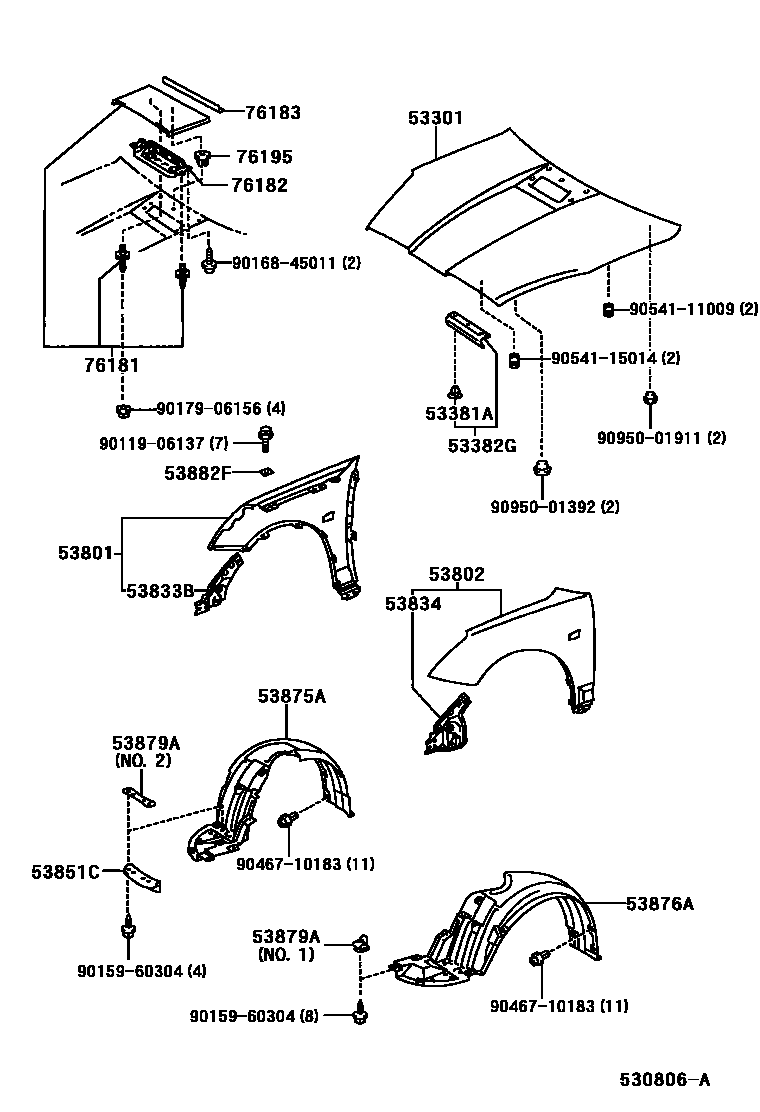

HOOD & FRONT FENDER

53301HOOD SUB-ASSY

main53301-20580iZZT231200208-200509

53381ACLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)

main90467-08011×3iZZT231199908-200001

53382GSEAL, HOOD TO RADIATOR SUPPORT, LH

main53382-20060iZZT231199908-200001

main53382-20080iZZT231200208-200509

53801FENDER SUB-ASSY, FRONT RH

main53801-2B450iZZT231199908-200208

53802FENDER SUB-ASSY, FRONT LH

main53802-2B450iZZT231199908-200208

53833BPANEL, FRONT FENDER SIDE, RH

main53831-20160iZZT231199908-200208

53834PANEL, FRONT FENDER SIDE, LOWER LH

main53832-20160iZZT231199908-200208

53851CPAD, FRONT WHEEL OPENING EXTENSION, NO.1

main53851-47010×2iZZT231199908-200208

53875ALINER, FRONT FENDER, RH

main53875-20350iZZT231200208-200509

53876ALINER, FRONT FENDER, LH

main53876-20380iZZT231200208-200509

53879ARETAINER, FRONT FENDER LINER

main53879-17020×6iZZT231200208-200509

NO.1

main53879-47010×2iZZT231199908-200208

NO.2

53882FSEAL, FRONT FENDER

main53882-16030×2iZZT231199908-200208

76181BULGE, HOOD

main76181-20902iZZT231199908-200208

76182GUIDE, HOOD AIR INTAKE

main76182-20040iZZT231199908-200208

76183PROTECTOR, HOOD BULGE, NO.1

main76183-20040iZZT231199908-200208

76195CLIP, HOOD BULGE

main76195-20030iZZT231199908-200208

9011906137

main90119-06137

9015960304

main90159-60304

9016845011

main90168-45011

9017906156

main90179-06156

9046710183

main90467-10183

9054111009

main90541-11009

9054115014

main90541-15014

9095001392

main90950-01392

9095001911

main90950-01911

25 parts on this diagram · 1 diagram in section
