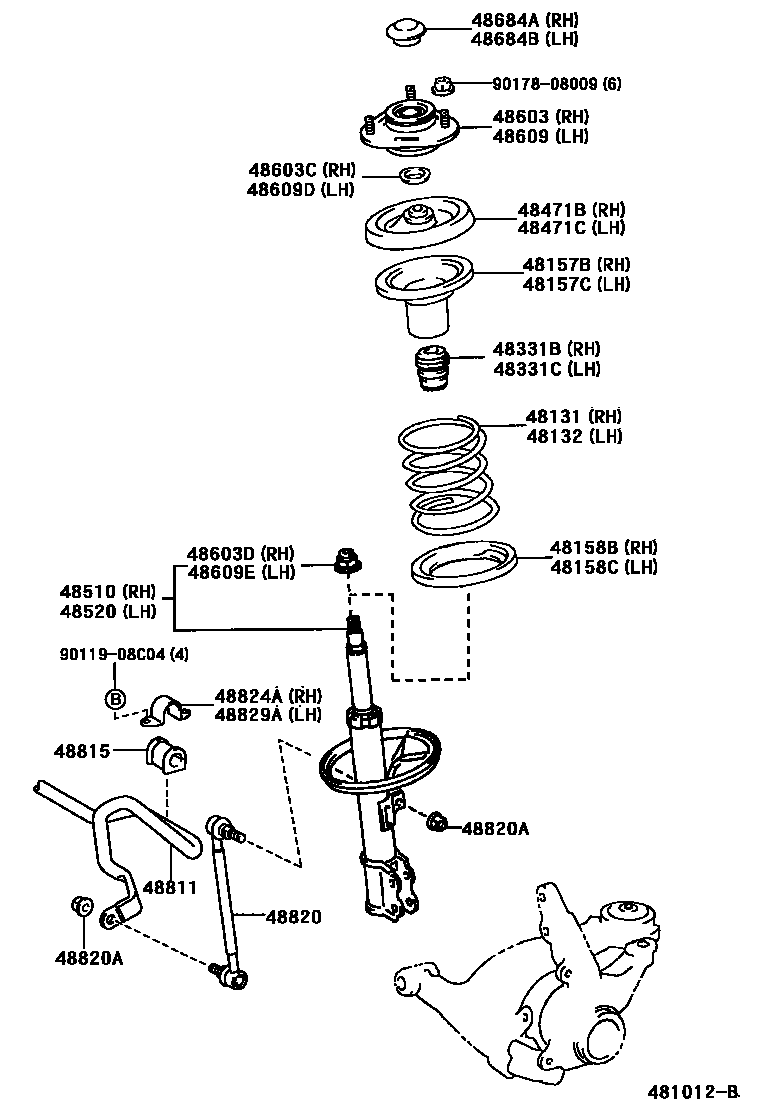

FRONT SPRING & SHOCK ABSORBER

48131SPRING, FRONT COIL, RH

main48131-2T330iZZT231..6F199908-200008

L=312

main48131-2T340iZZT231..4FC199908-200008

L=318.5

main48131-2T380iZZT231..6F200008-200509

main48131-2T390iZZT231..4FC200008-200509

48132SPRING, FRONT COIL, LH

main48131-2T330iZZT231..6F199908-200008

L=312

main48131-2T340iZZT231..4FC199908-200008

L=318.5

main48131-2T380iZZT231..6F200008-200509

main48131-2T390iZZT231..4FC200008-200509

48157BINSULATOR, FRONT COIL SPRING, UPPER RH

main48157-47010iZZT231199908-200509

48157CINSULATOR, FRONT COIL SPRING, UPPER LH

main48157-47010iZZT231199908-200509

48158BINSULATOR, FRONT COIL SPRING, LOWER RH

main48158-47010iZZT231199908-200509

48158CINSULATOR, FRONT COIL SPRING, LOWER LH

main48158-47010iZZT231199908-200509

48331BBUMPER, FRONT SPRING, RH

main48331-20150iZZT231199908-200509

48331CBUMPER, FRONT SPRING, LH

main48331-20150iZZT231199908-200509

48471BSEAT, FRONT COIL SPRING, UPPER RH

main48044-47010iZZT231199908-200509

48471CSEAT, FRONT COIL SPRING, UPPER LH

main48044-47010iZZT231199908-200509

48510ABSORBER ASSY, SHOCK, FRONT RH

main48510-29755iZZT231199908-200008

sub48510-80071

main48510-29756iZZT231200008-200208

sub48510-80072

main48510-80072iZZT231200208-200406

MARK 48510-2B360

sub48510-80221

main48510-80221iZZT231200406-200508

MARK 48510-2B361

sub48510-80325

main48510-80325iZZT231200508-200509

MARK 48510-2B361

sub48510-80324

48520ABSORBER ASSY, SHOCK, FRONT LH

main48520-29465iZZT231199908-200008

sub48520-29665

main48520-29466iZZT231200008-200208

sub48520-29675

main48520-29675iZZT231200208-200406

sub48520-80047

main48520-80047iZZT231200406-200508

MARK 48520-2B361

sub48520-80102

main48520-80102iZZT231200508-200509

MARK 48520-2B361

sub48520-80101

48603SUPPORT SUB-ASSY, FRONT SUSPENSION, RH

main48609-20470iZZT231199908-200012

sub48609-20471

main48609-20471iZZT231200012-200509

48603CSEAL, DUST(FOR FRONT SUSPENSION SUPPORT RH)

main90303-22002iZZT231200205-200509

main90303-22049iZZT231199908-200205

48603DNUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER RH)

main94182-11400iZZT231199908-200509

48609SUPPORT SUB-ASSY, FRONT SUSPENSION, LH

main48609-20470iZZT231199908-200012

sub48609-20471

main48609-20471iZZT231200012-200509

48609DSEAL, DUST(FOR FRONT SUSPENSION SUPPORT LH)

main90303-22002iZZT231200205-200509

main90303-22049iZZT231199908-200205

48609ENUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER LH)

main94182-11400iZZT231199908-200509

48684ACOVER, FRONT SUSPENSION SUPPORT DUST, RH

main48684-12070iZZT231199908-200212

main48684-52010iZZT231200212-200509

48684BCOVER, FRONT SUSPENSION SUPPORT DUST, LH

main48684-12070iZZT231199908-200212

main48684-52010iZZT231200212-200509

48811BAR, STABILIZER, FRONT

main48811-2B060iZZT231199908-200509

48815BUSH, FRONT STABILIZER BAR, NO.1

main48815-20280iZZT231199908-200509

48820LINK ASSY, FRONT STABILIZER

main48820-32010iZZT231199908-200509

48820ANUT(FOR FRONT STABILIZER LINK)

main90179-10183iZZT231199908-200509

48824ABRACKET, FRONT STABILIZER, NO.1 RH

main48824-26210iZZT231199908-200509

48829ABRACKET, FRONT STABILIZER, NO.1 LH

main48824-26210iZZT231199908-200509

9011908C04

main90119-08C04

9017808009

main90178-08009

9161160822

main91611-60822

29 parts on this diagram · 1 diagram in section
