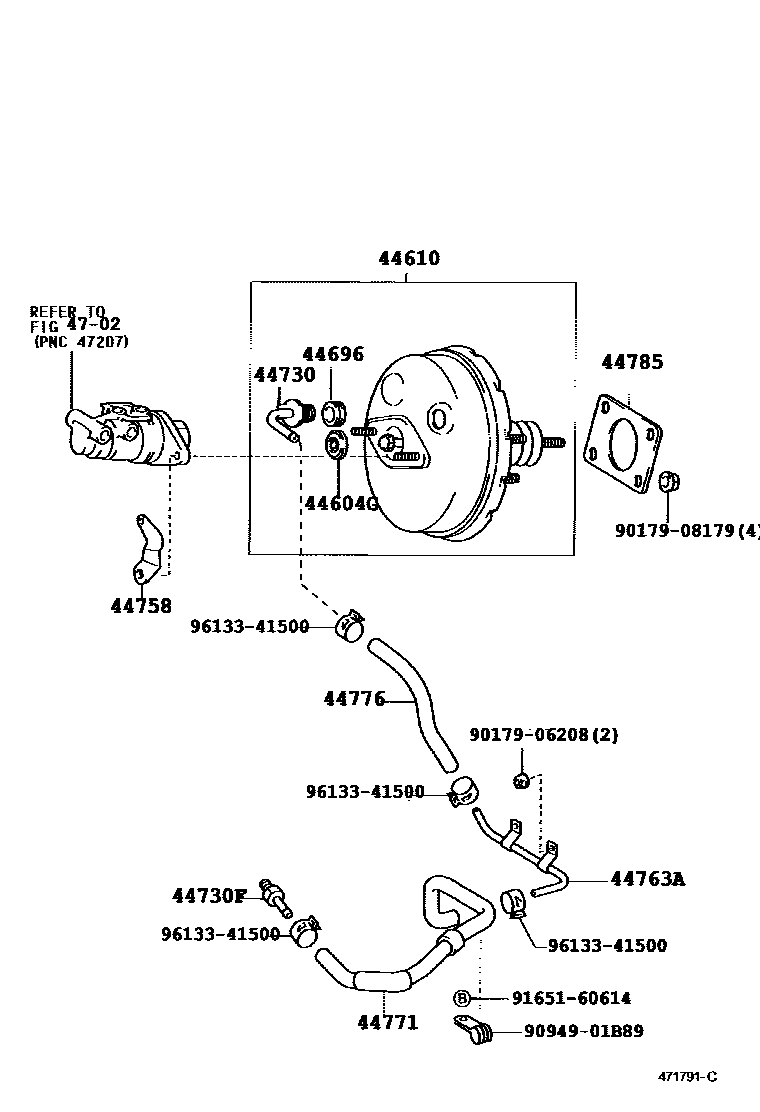

BRAKE BOOSTER & VACUUM TUBE

44604GSEAL, BRAKE BOOSTER BODY

main44604-52070iZZT231200208-200509

44610BOOSTER ASSY, BRAKE

main44610-2G010iZZT231199908-199910

main44610-2G090iZZT231199910-200208

44696GROMMET, CHECK VALVE

main90480-24015iZZT231199908-200208

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-10020iZZT231200503-200509

main44730-20160iZZT231199908-200208

44730FUNION, VACUUM HOSE(FOR MANIFOLD SIDE)

main90404-51319iZZT231200208-200509

44758BRACKET, VACUUM CHECK VALVE

main44758-20340iZZT231199908-200208

44763ATUBE, HOSE TO HOSE, NO.1

main44763-20220iZZT231199908-200208

44771HOSE, VACUUM TUBE CONNECTOR

main44771-20050iZZT231199908-200205

main44771-20060iZZT231200205-200208

44776HOSE, BRAKE BOOSTER

main44776-20170iZZT231199908-200208

44785GASKET, BRAKE BOOSTER

main44785-20020iZZT231199908-200208

4702BRAKE MASTER CYLINDER

→ Go to FIG 47-02

9017906208

main90179-06208

9017908179

main90179-08179

9094901B89

main90949-01B89

9165160614

main91651-60614

9613341500

main96133-41500

16 parts on this diagram · 1 diagram in section
