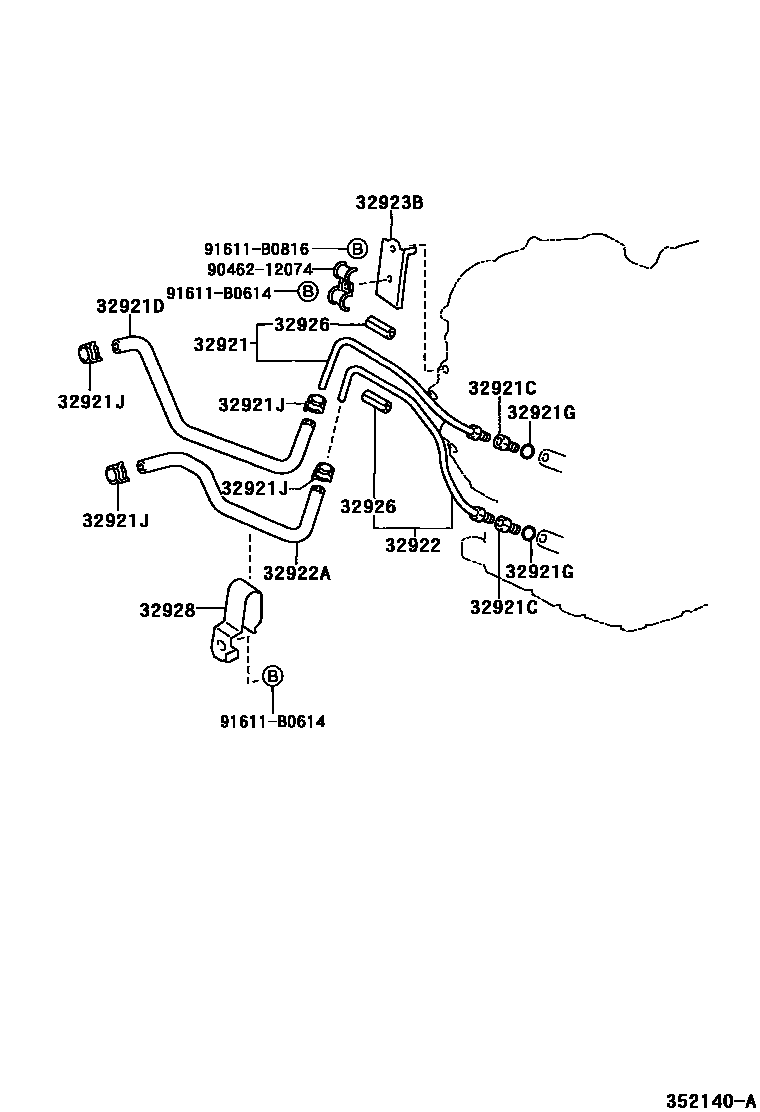

OIL COOLER & TUBE (ATM)

32921TUBE, OIL COOLER INLET, NO.1

main32921-20500iZZT231..4FC199908-200208

32921CUNION(FOR OIL COOLER TUBE)

main90404-16021×2iZZT231..4FC199908-200208

main90404-16031×2iZZT231..4FC200208-200509

32921DHOSE(FOR OIL COOLER INLET)

main32941-20140iZZT231..4FC199908-199912

main32941-20141iZZT231..4FC199912-200208

32921GRING, O(FOR OIL COOLER TUBE UNION)

main90301-10189×2iZZT231..4FC199908-200208

32921JCLIP(FOR OIL COOLER HOSE)

main90467-16013×4iZZT231..4FC199908-200204

main90467-16022×4iZZT231..4FC200204-200208

32922TUBE, OIL COOLER OUTLET, NO.1

main32922-20510iZZT231..4FC199908-200208

32922AHOSE(FOR OIL COOLER OUTLET)

main32942-20050iZZT231..4FC199908-199912

main32942-20051iZZT231..4FC199912-200208

32923BCLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.1

main32923-32100iZZT231..4FC199908-200208

32926CUSHION, OIL COOLER TUBE(ATM)

main32926-30020×2iZZT231..4FC199908-200208

L=35,ID=10

32928CLAMP, FLEXIBLE HOSE, NO.1

main32928-20130iZZT231..4FC199908-200208

9046212074

main90462-12074

91611B0614

main91611-B0614

91611B0816

main91611-B0816

13 parts on this diagram · 1 diagram in section
