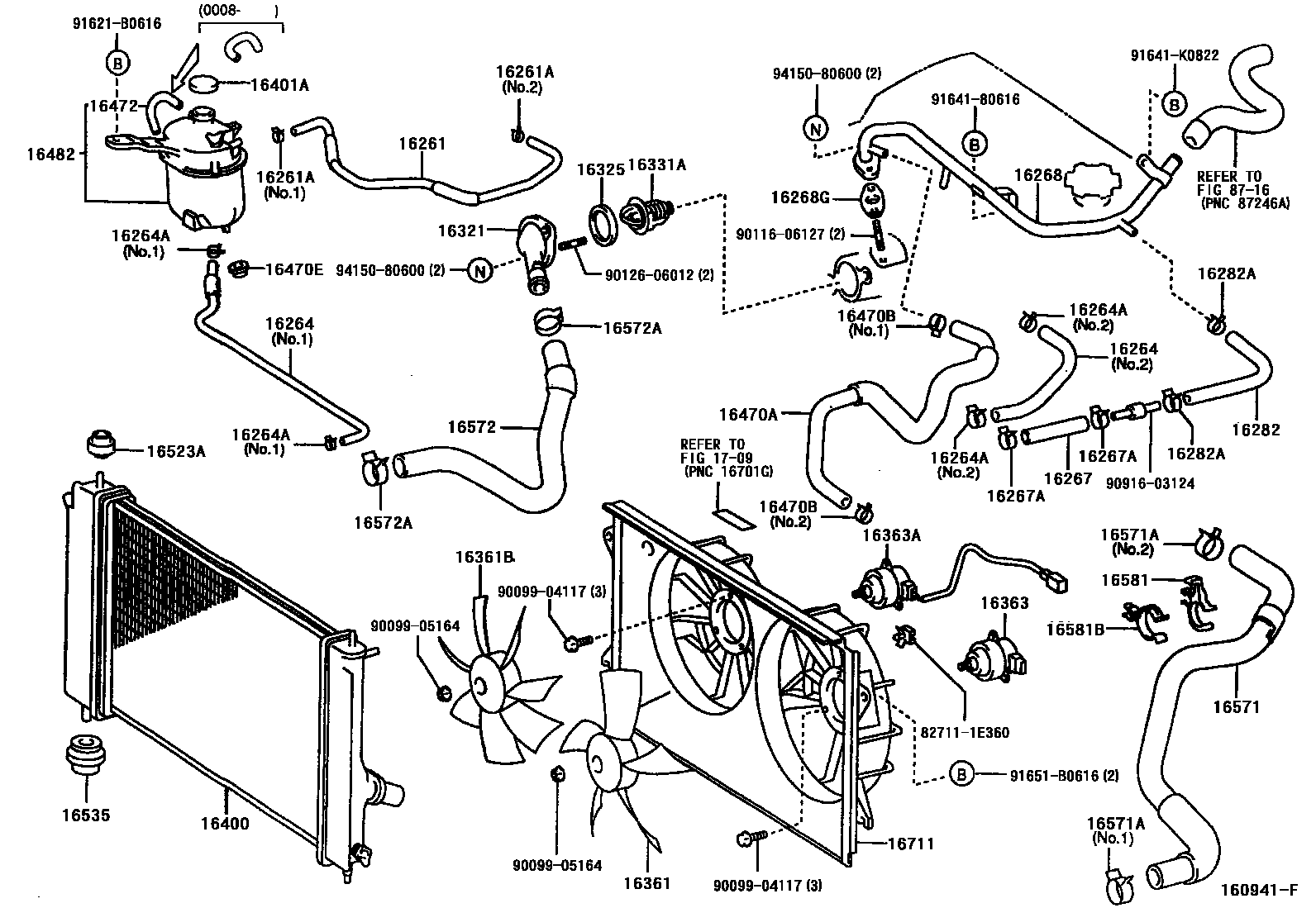

RADIATOR & WATER OUTLET
16261HOSE, WATER BY-PASS
16261ACLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)
NO.2
NO.1
16264HOSE, WATER BY-PASS, NO.2
NO.1
NO.2
16264ACLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)
NO.2
NO.1
16267HOSE, WATER BY-PASS, NO.3
16268GGASKET(FOR WATER BY-PASS PIPE)
16282HOSE, WATER BY-PASS, NO.5
16321INLET, WATER
16325GASKET, WATER INLET HOUSING, NO.1
16331ATHERMOSTAT
*WAX 82-95
16361FAN
16361BFAN, NO.2
16363MOTOR, COOLING FAN
16363AMOTOR, COOLING FAN, NO.2
16400RADIATOR ASSY
16401ACAP SUB-ASSY, RADIATOR RESERVE TANK
sub16475-51010
16470TANK ASSY, RADIATOR RESERVE
16470AHOSE OR PIPE(FOR RADIATOR RESERVE TANK)
16470BCLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)
NO.1
NO.2
16470EGROMMET, RADIATOR RESERVE TANK HOSE
16472HOSE, BREATHER
16482TANK SUB-ASSY, RADIATOR RESERVE
16523ACUSHION, RADIATOR SUPPORT
16535SUPPORT, RADIATOR, LOWER
16571HOSE, RADIATOR, INLET
16571ACLAMP OR CLIP, HOSE(FOR RADIATOR INLET)
NO.1
NO.2
16572HOSE, RADIATOR, OUTLET
16581CLAMP, HOSE(FOR WATER HOSE)
16581BCLAMP, HOSE(FOR RADIATOR HOSE)
16711SHROUD, FAN
1709
8716
827111E360WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-1E360
9009904117
main90099-04117
9009905164
main90099-05164
9011606127
main90116-06127
9012606012
main90126-06012
9091603124
main90916-03124
91621B0616
main91621-B0616
9164180616
main91641-80616
91641K0822
main91641-K0822
91651B0616
main91651-B0616
9415080600
main94150-80600
47 parts on this diagram · 4 diagrams in section
