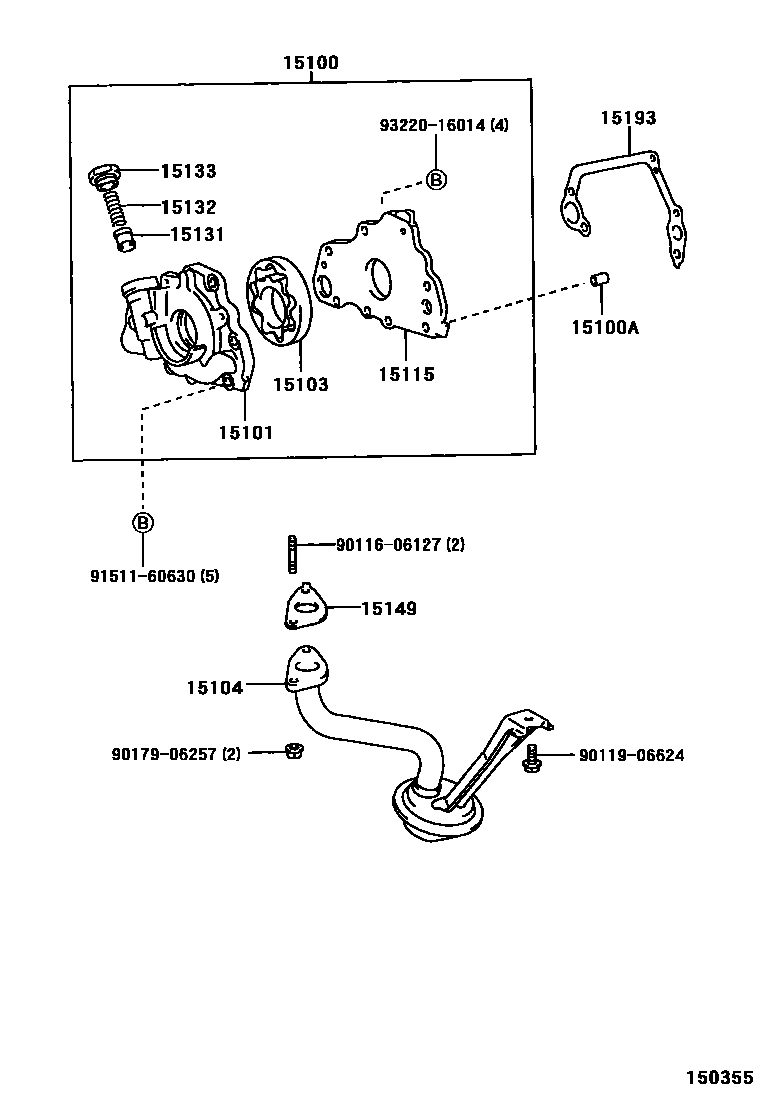

ENGINE OIL PUMP

0001 1 0002 1

15100PUMP ASSY, OIL

main15100-88600i2ZZGE..ZZT231199908-200208

15100APIN, RING(FOR OIL PUMP SET)

main90253-09003×2i2ZZGE..ZZT231199908-200208

15101BODY SUB-ASSY, OIL PUMP

main15111-88600i2ZZGE..ZZT231199908-200208

15103GEAR SET, OIL PUMP

main15103-88600i2ZZGE..ZZT231199908-200208

15104STRAINER SUB-ASSY, OIL

main15104-88601i2ZZGE..ZZT231199908-200208

15115COVER, OIL PUMP

main15115-88600i2ZZGE..ZZT231199908-200208

15131VALVE, OIL PUMP RELIEF

main15131-46040i2ZZGE..ZZT231199908-200208

15132SPRING, OIL PUMP RELIEF VALVE

main15132-46020i2ZZGE..ZZT231199908-200208

15133PLUG, OIL PUMP RELIEF VALVE

main15133-17010i2ZZGE..ZZT231199908-200208

15149GASKET, OIL STRAINER FLANGE

main15149-88600i2ZZGE..ZZT231199908-200208

15193GASKET, OIL PUMP

main15193-88600i2ZZGE..ZZT231199908-200208

9011606127

main90116-06127

9011906624

main90119-06624

9017906257

main90179-06257

9151160630

main91511-60630

9322016014

main93220-16014

16 parts on this diagram · 2 diagrams in section
