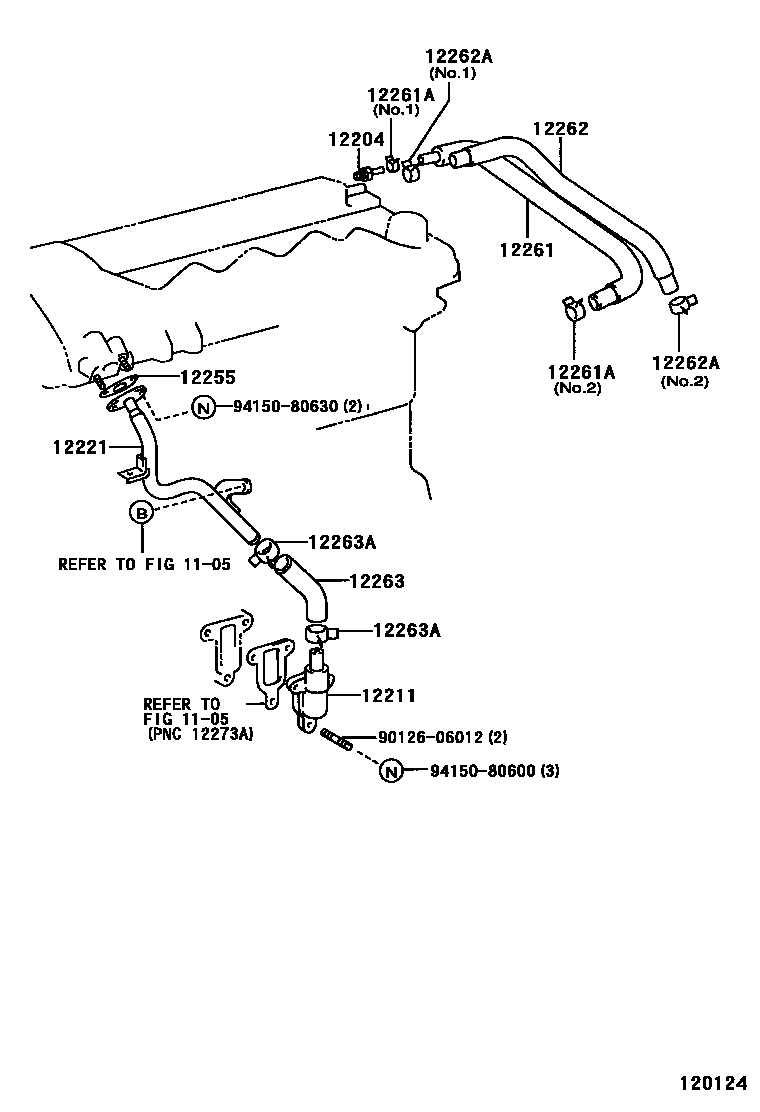

VENTILATION HOSE
1105CYLINDER BLOCK
12204VALVE SUB-ASSY, VENTILATION
12211CASE, VENTILATION, NO.1
12221TUBE, VENTILATION NO.1
12255GASKET, VENTILATION
12261HOSE, VENTILATION
12261ACLIP OR CLAMP(FOR VENTILATION HOSE)
NO.2
NO.1
12262HOSE, VENTILATION, NO.2
12262ACLIP(FOR VENTILATION HOSE NO.2)
NO.1
NO.1
NO.2
NO.2
12263HOSE, VENTILATION, NO.3
12263ACLIP(FOR VENTILATION HOSE)
9012606012
main90126-06012
9415080600
main94150-80600
9415080630
main94150-80630
14 parts on this diagram · 1 diagram in section
