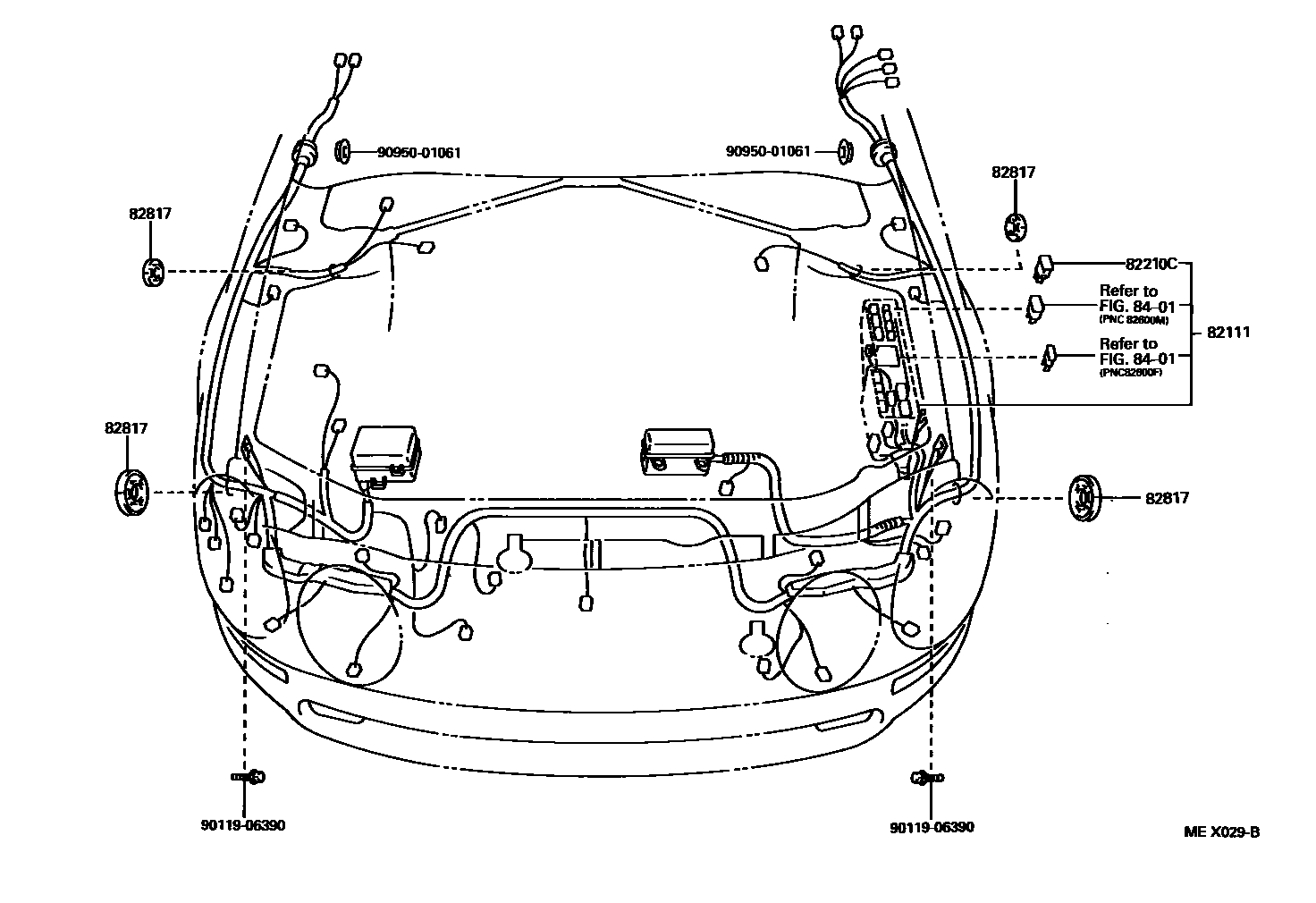

WIRING & CLAMP

0001 1ENGINE ROOM WIRE 0002 1ENGINE WIRE 0003 1ENGINE WIRE 0004 1ENGINE WIRE 0005 1COWL,INSTRUMENT WIRE 0006 1DOOR,ROOF WIRE 0007 1FLOOR,LUGGAGE WIRE 0008 1CABLE BOND 0009 1CLAMP & PROTECTOR 0010 1CLAMP & PROTECTOR

82111WIRE, ENGINE ROOM MAIN

main82111-2G760iST202,204..RHD199311-199508

main82111-2G770iST202,204..RHD199311-199508

W(ABS)

main82111-2G780iST205199402-199508

main82111-2H020iST202..LHD199311-199508

main82111-2H030iST202..LHD199311-199508

W(ABS)

main82111-2H810iST202,204..RHD199508-199711

main82111-2H811iST202,204..RHD199711

main82111-2H820iST202,204..RHD199508-199606

W(ABS)

main82111-2H821iST202,204..RHD199606-199712

W(ABS)

main82111-2H822iST202,204..RHD199712

W(ABS)

main82111-2H830iST205199508-199606

main82111-2H831iST205199606-199712

main82111-2H832iST205199712

main82111-2H860iST202..LHD199508-199606

main82111-2H861iST202..LHD199606-199711

main82111-2H862iST202..LHD199711

main82111-2H870iST202..LHD199508-199606

W(ABS)

main82111-2H871iST202..LHD199606-199712

W(ABS)

main82111-2H872iST202..LHD199712

W(ABS)

82210CFUSIBLE LINK

main90982-08189iST20#199311

40A,TERM.:FEMALE,GRN

main90982-08190iST20#199311

60A,TERM.:FEMALE,YEL

main90982-08227iST20#199311

50A,TERM.:FEMALE,RED

main90982-08246iST20#199311

100A,TERM.:MALE,BLUE

82817PROTECTOR, WIRING HARNESS, NO.1

main82817-2B730×2iST20#199311

REAR

main82817-2D840×2iST20#199311

FRONT

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9011906390

main90119-06390

9095001061

main90950-01061

6 parts on this diagram · 10 diagrams in section
