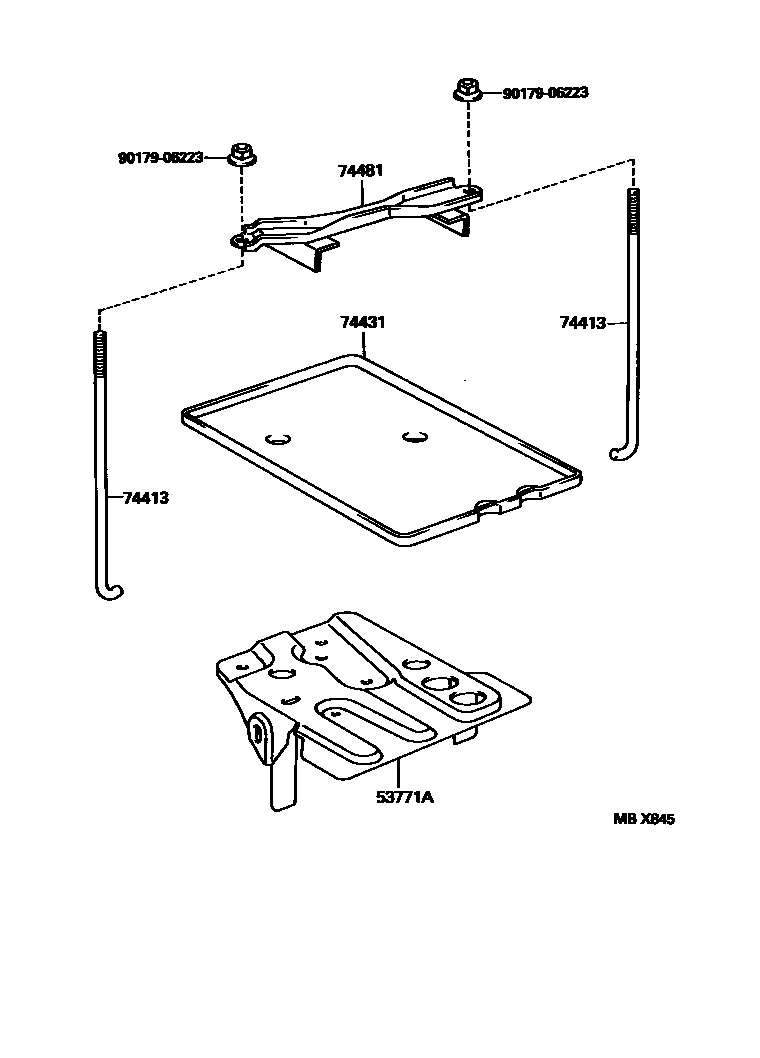

BATTERY CARRIER

53771ASUPPORT, BATTERY CARRIER

main53771-20070iST20#199311

74413BOLT, BATTERY CLAMP

main74451-10060iST20#199311

74431TRAY, BATTERY

main74431-20060iST20#199311

74481CLAMP, BATTERY HOLD DOWN

main74404-20460iST20#..ARL,GEN199311-199411

W(BATTERY=55D23L OR 65D23L)

main74404-20470iST202199311-199508

W(BATTERY=32C24L)

main74404-20480iST202199311

9017906223

main90179-06223

5 parts on this diagram · 1 diagram in section
