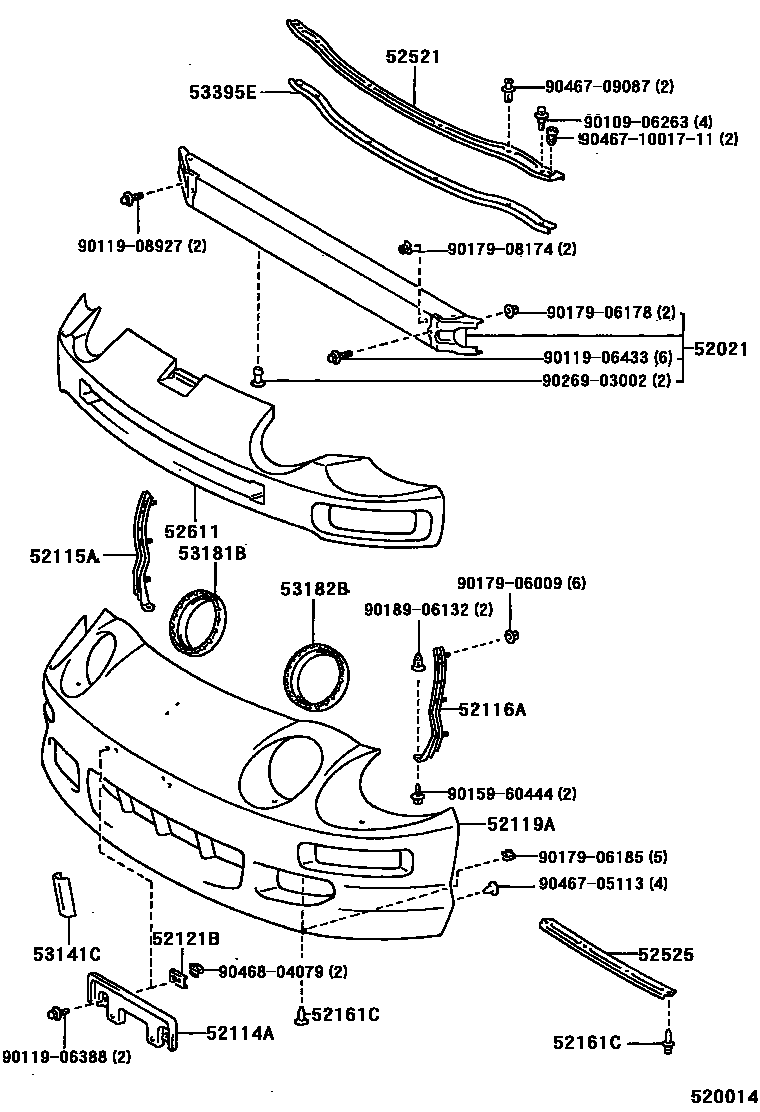

FRONT BUMPER & BUMPER STAY
52021REINFORCEMENT SUB-ASSY, FRONT BUMPER
52114ABRACKET, FRONT BUMPER EXTENSION MOUNTING
52115ASUPPORT, FRONT BUMPER SIDE, RH
52116ASUPPORT, FRONT BUMPER SIDE, LH
52119ACOVER, FRONT BUMPER
52121BBRACKET, FRONT LICENCE PLATE MOUNTING
52161CPIECE, FRONT BUMPER
W(FOG LAMP)
RH,LH
BLACK,040 ,199 ,202 ,3K6 ,3L2 ,6R0 ,933; BLACK,040 ,199 ,202 ,3K6 ,3L2 ,8M2 ,933
52521RETAINER, FRONT BUMPER, UPPER CENTER
52525RETAINER, FRONT BUMPER, LOWER CENTER
52611ABSORBER, FRONT BUMPER ENERGY
53141CGARNISH, RADIATOR GRILLE
53181BSEAL, HEADLAMP COVER, NO.1, RH
53182BSEAL, HEADLAMP COVER, NO.1, LH
9010906263
main90109-06263
9011906388
main90119-06388
9011906433
main90119-06433
9011908927
main90119-08927
9015960444
main90159-60444
9017906009
main90179-06009
9017906178
main90179-06178
9017906185
main90179-06185
9017908174
main90179-08174
9018906132
main90189-06132
9026903002
main90269-03002
9046705113
main90467-05113
9046709087
main90467-09087
904671001711
main90467-1001711
9046804079
main90468-04079
29 parts on this diagram · 3 diagrams in section
