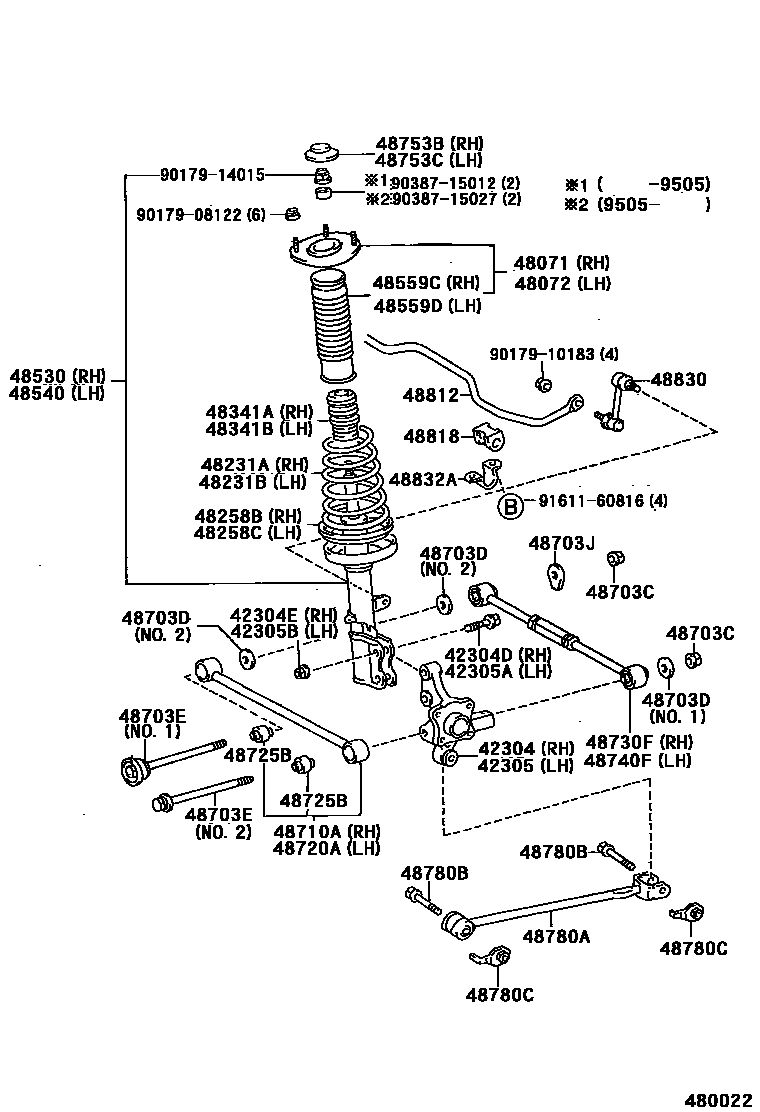

REAR SPRING & SHOCK ABSORBER
42304CARRIER SUB-ASSY, REAR AXLE, RH
W(ABS)
42304DBOLT (FOR REAR AXLE CARRIER RH)
42304ENUT (FOR REAR AXLE CARRIER RH)
42305CARRIER SUB-ASSY, REAR AXLE, LH
W(ABS)
42305ABOLT (FOR REAR AXLE CARRIER LH)
42305BNUT (FOR REAR AXLE CARRIER LH)
48231ASPRING, COIL, REAR RH
48231BSPRING, COIL, REAR LH
48258BINSULATOR, REAR COIL SPRING, LOWER RH
48258CINSULATOR, REAR COIL SPRING, LOWER LH
48559CCOVER, REAR SHOCK ABSORBER DUST, RH NO.1
sub48559-12080
48559DCOVER, REAR SHOCK ABSORBER DUST, LH NO.1
sub48559-12080
48703DWASHER(FOR REAR SUSPENSION ARM)
NO.1
NO.2
48703EBOLT(FOR REAR SUSPENSION ARM)
*12-1.25PX80-25
*12-1.25PX94-35
*14-1.50PX73-67
*14-1.50PX260-26,NO.1
*14-1.50PX260-26,NO.2
48703JWASHER, NO.2(FOR REAR SUSPENSION ARM)
48710AARM ASSY, REAR SUSPENSION, NO.1 RH
48720AARM ASSY, REAR SUSPENSION, NO.1 LH
48725BBUSH, REAR SUSPENSION ARM, NO.1
48753BCOVER, REAR SUSPENSION SUPOPORT, NO.1 RH
48753CCOVER, REAR SUSPENSION SUPOPORT, NO.1 LH
48780BBOLT(FOR STRUT ROD)
48780CNUT(FOR STRUT ROD)
48812BAR, STABILIZER, REAR
48818BUSH, STABILIZER, REAR
48830LINK ASSY, REAR STABILIZER
9017908122
main90179-08122
9017910183
main90179-10183
9017914015
main90179-14015
9038715012
main90387-15012
9038715027
main90387-15027
9161160816
main91611-60816
42 parts on this diagram · 2 diagrams in section
