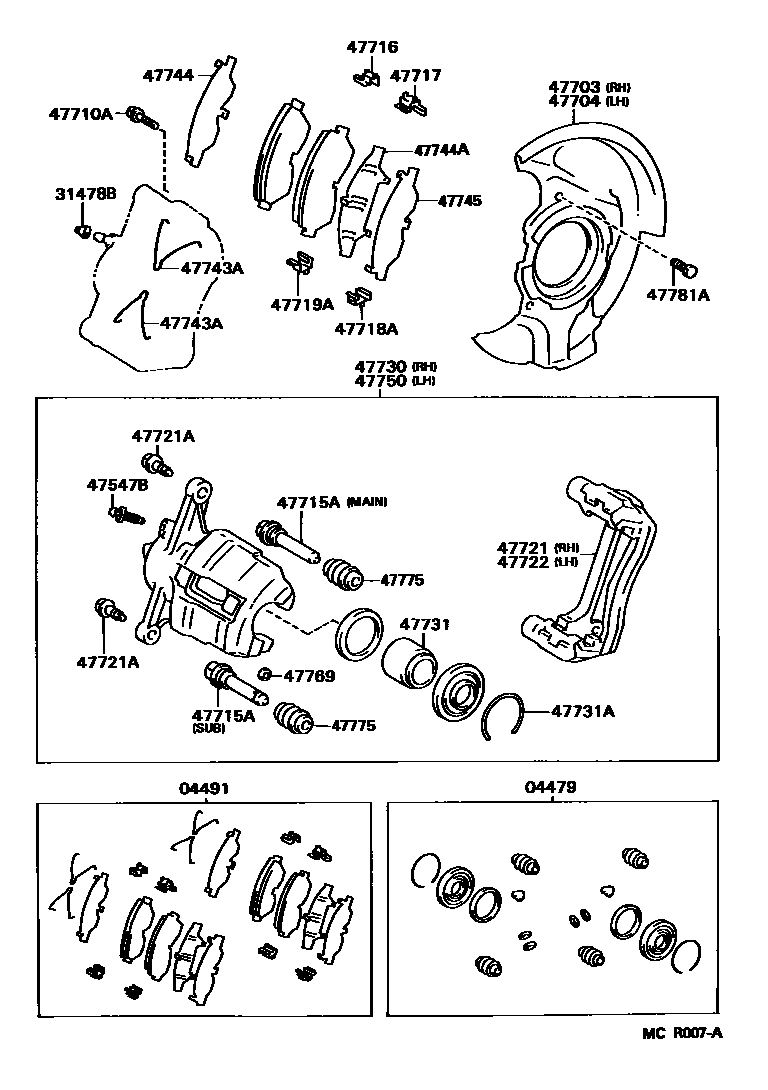

FRONT DISC BRAKE CALIPER & DUST COVER

0001 1 0002 1 0003 1 0004 1 0005 1

04479CYLINDER KIT, DISC BRAKE, FRONT

main04479-20170iST202199311

main04479-20220iST205199402-199508

main04479-20260iST205199508

main04479-33010iST204199311

04491PAD KIT, DISC BRAKE, FRONT

main04491-20890iST202..LHD199311-199505

sub04465-20120

main04491-2B040iST205199402-209505

sub04465-20100

main04491-2B050iST202..RHD199311-199505

sub04465-20140

main04491-33100iST204199311-199505

sub04465-33060

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-14010iST205199402

main31478-30010iST202,204199311

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-20010iST202,204199311

main47547-20030iST205199402

47703COVER SUB-ASSY, DISC BRAKE DUST, FRONT RH

main47781-20310iST205199402

main47781-20320iST204199311

main47781-20330iST202199311

47704COVER SUB-ASSY, DISC BRAKE DUST, FRONT LH

main47782-20310iST205199402

main47782-20320iST204199311

main47782-20330iST202199311

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90105-12131iST202,204199311

*12-1.25PX25.5-23

main90105-12228iST205199402

*12-1.25PX32-24

47715APIN, FRONT DISC BRAKE CYLINDER SLIDE

main47715-50010iST202,204199311

SUB PIN SIDE

main47715-50030iST202,204199311

MAIN PIN SIDE

47716PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)

main47716-20180iST204199704

main47716-33010iST202199311-199608

main47716-33031iST204199311-199704

main47716-33050iST202199608

47717PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE)

main47716-20190iST204199704

main47716-33020iST202199311-199608

main47716-33041iST204199311-199704

main47716-33060iST202199608

47718APLATE, PAD SUPPORT, NO.3(FOR FRONT DISC BRAKE)

main47717-20080iST204199704

main47717-20150iST202199608

main47717-33010iST202199311-199608

main47717-33031iST204199311-199704

47719APLATE, PAD SUPPORT, NO.4(FOR FRONT DISC BRAKE)

main47717-20090iST204199704

main47717-20160iST202199608

main47717-33020iST202199311-199608

main47717-33041iST204199311-199704

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-20370iST202199311-199608

main47721-20371iST202199608

main47721-20420iST204199311

47721ABOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING)

main90105-08164iST202,204199311

*8-1.00PX23-15

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47722-20080iST202199311-199608

main47722-20081iST202199608

main47722-20120iST204199311

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-20480iST202199311-199608

main47730-20481iST202199608

main47730-20520iST204199311

main47730-20560iST205199402-199508

main47730-20561iST205199508

47731PISTON, FRONT DISC BRAKE

main47731-14120iST205199402

main47731-20190iST202199311

main47731-33010iST204199311

47731ARING, SET(FOR FRONT DISC BRAKE PISTON)

main90522-45002iST205199402

main90522-66001iST202,204199311

47743ASPRING, ANTI-SQUEAL(FOR FRONT DISC BRAKE)

main47743-50010iST202199311

main47743-50030iST204199311

47744SHIM, ANTI-SQUEAL, NO.1(FOR FRONT DISC BRAKE)

main47744-20120iST202..RHD199311-199508

main47744-32090iST202..RHD199504-199508

main47745-33020iST204199311-199908

47744ASHIM, ANTI-SQUEAL, NO.3(FOR FRONT DISC BRAKE)

main47744-33010iST202..RHD199311-199508

main47744-33020iST204199311-199908

47745SHIM, ANTI-SQUEAL, NO.2(FOR FRONT DISC BRAKE)

main47745-33010iST202..RHD199311-199508

main47745-33020iST204199311-199908

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-20480iST202199311-199608

main47750-20481iST202199608

main47750-20520iST204199311

main47750-20560iST205199402-199508

main47750-20561iST205199508

47769BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)

main47769-50010iST202,204199311

47775BOOT, BUSH DUST(FOR FRONT DISC BRAKE)

main47775-20080iST202199311

sub47775-30070

main47775-50010iST204199311

47781ABOLT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)

main90109-06134iST205199402-199506

main90109-06192iST202,204199311-199506

sub90109-06134

26 parts on this diagram · 5 diagrams in section
