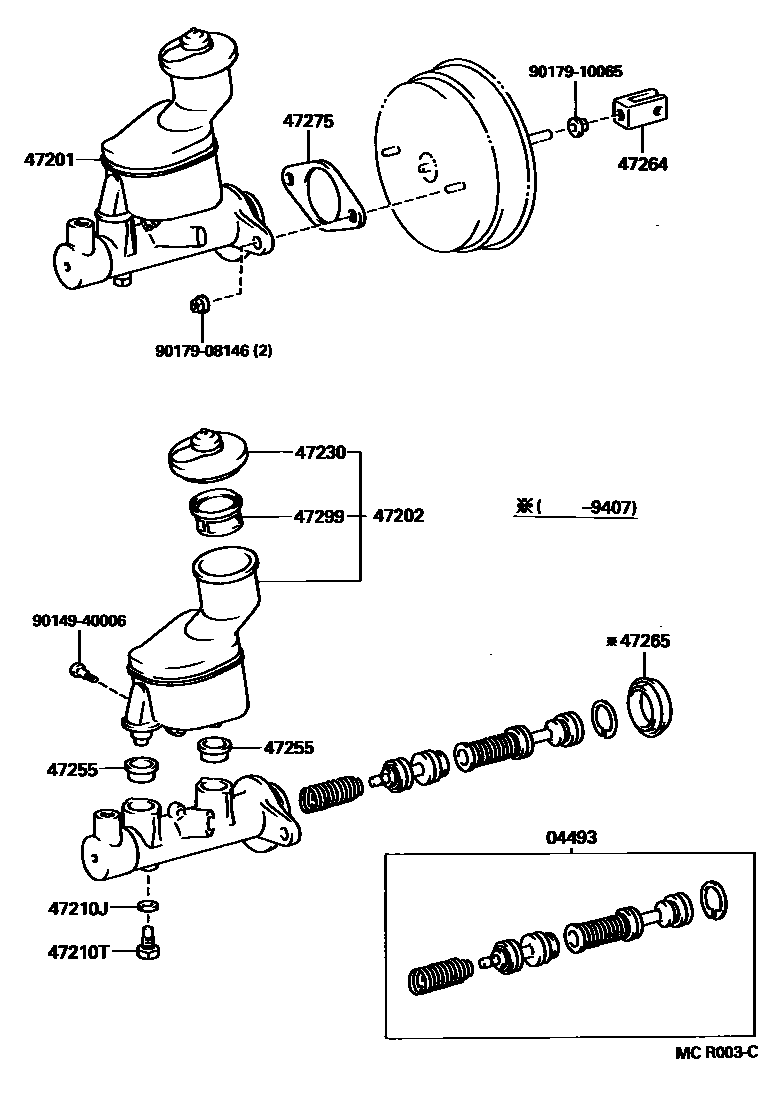

BRAKE MASTER CYLINDER

0001 1 0002 1

04493CYLINDER KIT, BRAKE MASTER

main04493-20270iST20#199311-199706

W(ABS)

sub04493-2B010

main04493-2B010iST202,204199706

W(ABS)

main04493-2B020iST202,204199508

main04493-33030iST202,204199311-199508

main04493-33060iST205199508

sub04493-33160

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47201-20800iST205199508

main47201-2B050iST202..LHD199311

W(ABS)

main47201-2B070iST202,204..RHD199311

main47201-2B080iST20#..RHD199311-199508

W(ABS)

main47201-2B090iST202..LHD199311

47202RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER

main47202-20420iST202..LHD199311-199508

sub47220-20160

main47202-20480iST20#..RHD199311-199508

sub47220-20150

main47220-20150iST20#..RHD199508

main47220-20160iST202..LHD199508

47210JGASKET(FOR MASTER CYLINDER)

main90430-06104iST20#199311

47210TBOLT(FOR BRAKE MASTER CYLINDER)

main90109-06077iST20#199311

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-12040iST20#199311

47255GROMMET, MASTER CYLINDER RESERVOIR

main47255-16010iST20#199311

47264CLEVIS, MASTER CYLINDER PUSH ROD

main47264-20060iST202,204199311-199405

W(ABS)

main47264-20070iST202..LHD199311-199405

47265BOOT, MASTER CYLINDER

main47265-20050iST20#199311-199407

47275GASKET, BRAKE MASTER CYLINDER

main47275-12020iST20#199311

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-17010iST20#..RHD199311-199409

sub47299-20060

main47299-20060iST20#..RHD199409

main47299-24010iST202..LHD199311

9014940006

main90149-40006

9017908146

main90179-08146

9017910065

main90179-10065

14 parts on this diagram · 2 diagrams in section
