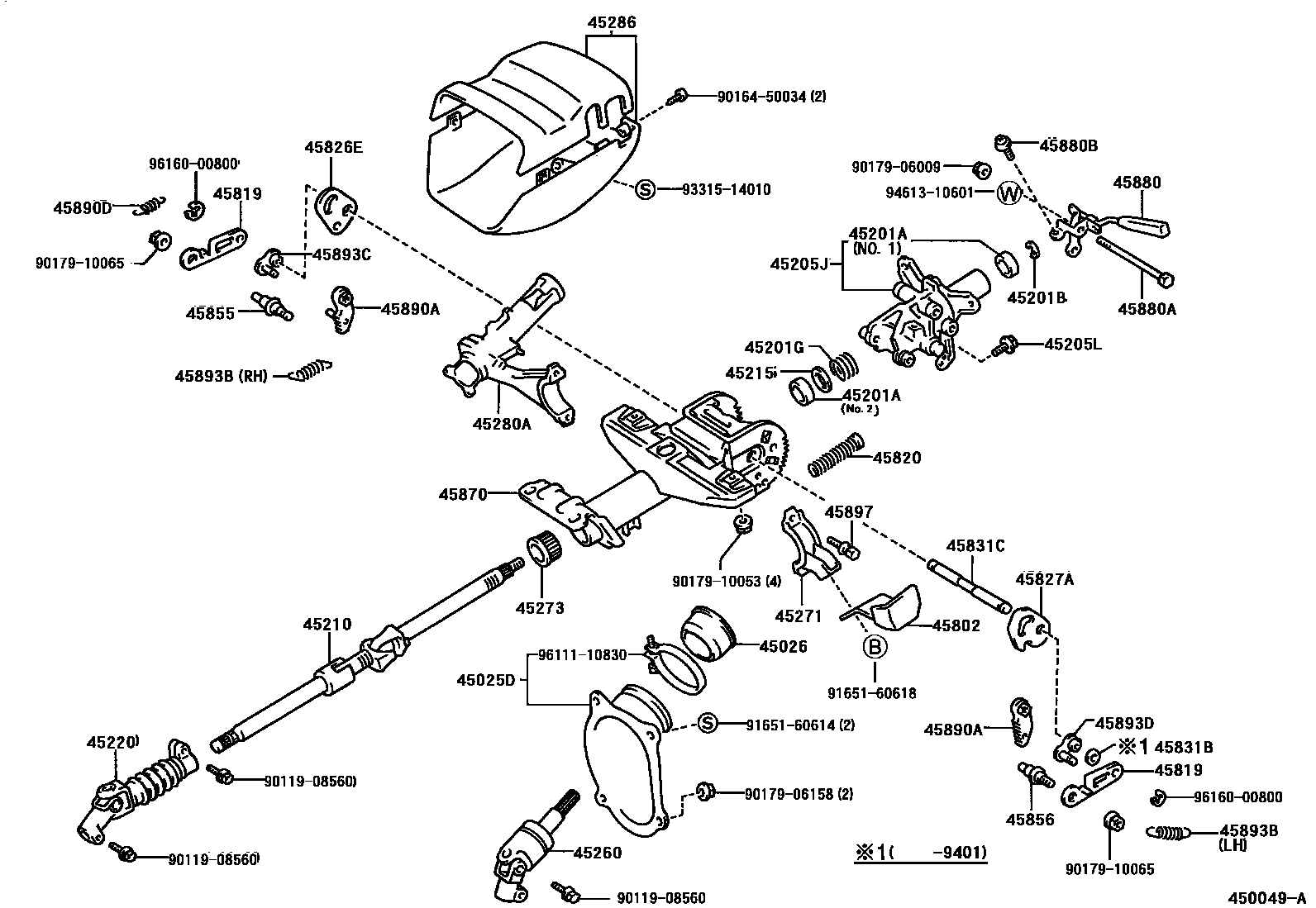

STEERING COLUMN & SHAFT

0001 1 0002 1

45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1

main45025-20450iST20#..RHD199311

main45025-20460iST202..LHD199311

45026COVER SUB-ASSY, STEERING COLUMN HOLE, NO.2

main45026-20110iST20#199311-199508

main45026-20111iST20#199508

45201ABEARING(FOR STEERING MAIN SHAFT)

main90363-18005iST20#199311

NO.1

main90363-18012iST20#199311-199508

NO.2

45201BRING, SHAFT SNAP(FOR STEERING MAIN SHAFT)

main90520-17042iST20#199311

T=1.20

45201GSPRING, COMPRESSION(FOR STEERING MAIN SHAFT)

main90501-40017iST20#199311

45205JTUBE SUB-ASSY, STEERING COLUMN, UPPER

main45205-20330iST20#199311

45205LSCREW(FOR STEERING COLUMN TUBE)

main90159-60429iST20#199311-199806

main91633-60625iST20#199806

45210SHAFT ASSY, STEERING MAIN

main45210-20310iST20#199311-199712

main45210-20311iST20#199712

45215COLLAR, MAIN SHAFT BEARING THRUST

main45215-12010iST20#199311

45220SHAFT ASSY, STEERING INTERMEDIATE

main45220-20140iST20#199311

45260SHAFT ASSY, STEERING INTERMEDIATE, NO.2

main45260-20340iST202,204..RHD199311

main45260-20350iST202..LHD199311

main45260-20370iST205199402

45271CLAMP, STEERING COLUMN, UPPER

main45271-12080iST20#199311

45273BUSH, STEERING MAIN SHAFT

main45273-20020iST20#199311-199409

main45273-20021iST20#199409

45280ABRACKET ASSY, STEERING COLUMN, UPPER

main45280-20620iST20#199311

45286COVER, STEERING COLUMN

main45287-20923-C0iST20#199311-199508

BLACK,TRIM2#

main45287-20926-C0iST20#199508

BLACK,TRIM2#

45802PROTECTOR SUB-ASSY, STEERING COLUMN, NO.1

main45874-12060iST20#199311

45819RETAINER, TILT LEVER

main45819-22060×2iST20#199311

45820SPRING ASSY, TILT STEERING SUPPORT

main45820-12020iST20#199311

45826ELEVER, STEERING TILT(FOR TILT ADJUST)

main45826-22050iST20#199311

45827ALEVER, STEERING TILT SUB

main45827-22030iST20#199311

45831BSPACER(FOR TILT LEVER LOCK SHAFT)

main90560-10062iST20#199311-199401

45831CSHAFT, TILT LEVER LOCK

main45831-20030iST20#199311-199401

main45831-22020iST20#199401

45855BOLT, TILT STEERING, NO.1

main45856-22010iST20#199311

OD=9.989-9.998

45856BOLT, TILT STEERING, NO.2

main45856-22010iST20#199311

OD=9.989-9.998

45870TUBE ASSY, STEERING COLUMN

main45870-20480iST20#..RHD199311

main45870-20490iST202..LHD199311

45880LEVER ASSY, STEERING TILT

main45880-20020iST20#199311

45880ABOLT(FOR STEERING TILT LEVER)

main90109-06162iST20#199311

45880BSCREW(FOR STEERING TILT LEVER)

main93382-15014iST20#199311-199706

main93383-15014iST20#199706

45890APAWL ASSY, TILT STEERING

main45890-20110iST20#199311

RH

main45890-22090iST20#199311

LH

45890DSPRING, TENSION(FOR TILT STEERING PAWL ASSY)

main90507-07003iST20#199311

45893BSPRING, TENSION(FOR TILT STEERING PAWL STOPPER)

main90507-08010iST20#199311

LH

main90507-10019iST20#199311

RH

45893CSTOPPER, STEERING PAWL, RH

main45893-24010iST20#199311

MARK 1

main45893-24020iST20#199311

MARK 2

main45893-24030iST20#199311

MARK 3

main45893-24040iST20#199311

MARK 4

main45893-24050iST20#199311

MARK 5

main45893-24060iST20#199311

MARK 6

main45893-24070iST20#199311

MARK 7

45893DSTOPPER, STEERING PAWL, LH

main45893-20260iST20#199311

MARK A

main45893-20270iST20#199311

MARK B

main45893-20280iST20#199311

MARK C

main45893-20290iST20#199311

MARK D

main45893-20300iST20#199311

MARK E

main45893-20310iST20#199311

MARK F

main45893-20320iST20#199311

MARK G

45897BOLT, STEERING LOCK SET

main45897-12020×2iST20#199311

9011908560

main90119-08560

9016450034

main90164-50034

9017906009

main90179-06009

9017906158

main90179-06158

9017910053

main90179-10053

9017910065

main90179-10065

9165160614

main91651-60614

9165160618

main91651-60618

9331514010

main93315-14010

9461310601

main94613-10601

9611110830

main96111-10830

9616000800

main96160-00800

46 parts on this diagram · 2 diagrams in section
