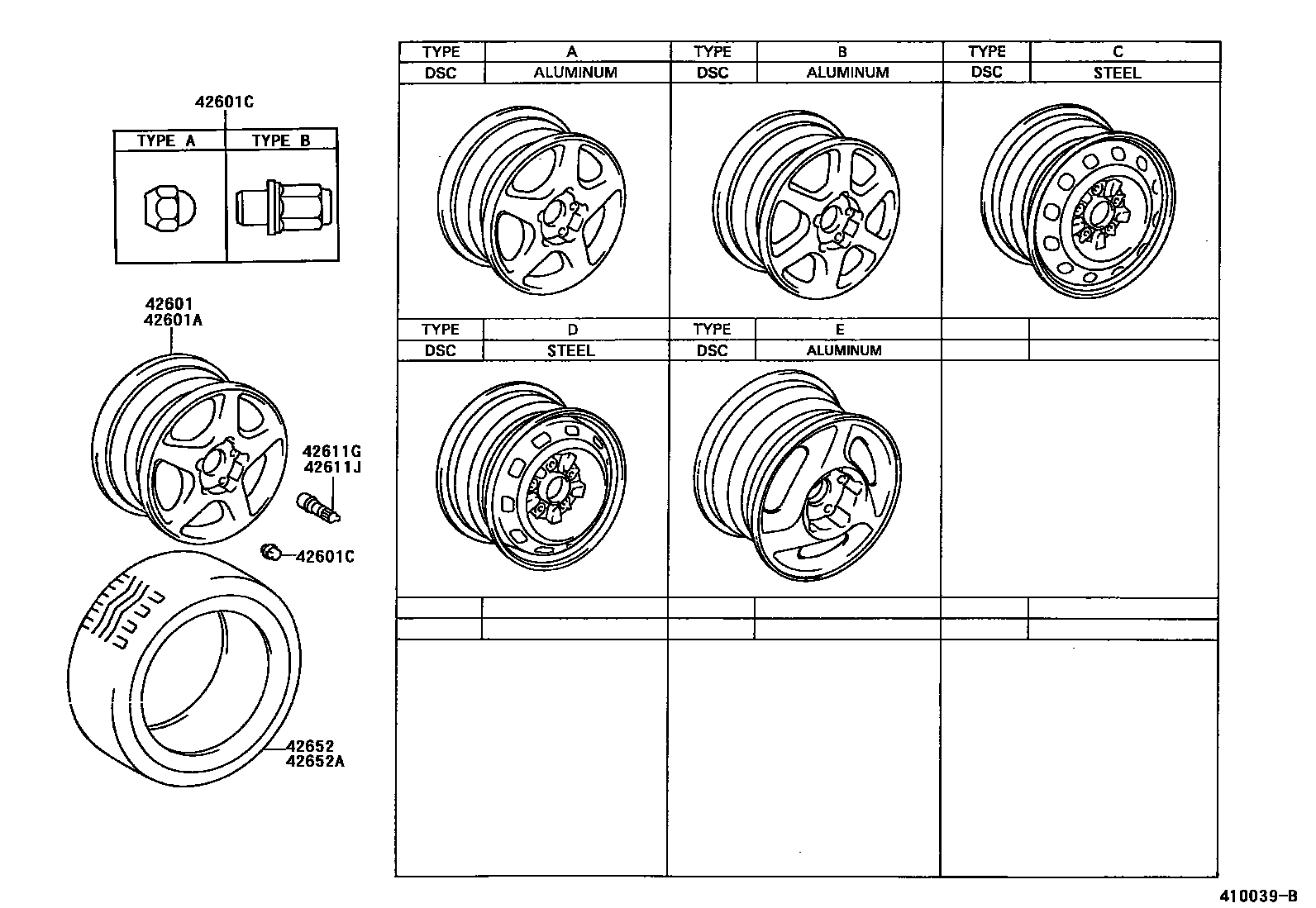

DISC WHEEL & WHEEL CAP

0001 1 0002 1 0003 1

42601WHEEL, DISC

main42611-20880-01×4iST202199311

14X6JJ,TYPE D:REFER TO ILLUSTRATION,BLACK

main42611-2B060×4iST204;ST202..LHD..GEN199311-199508

15X7JJ TMH,TYPE A:REFER TO ILLUSTRATION

main42611-2B090×4iST205199402-199508

16X7.5JJ,TYPE E:REFER TO ILLUSTRATION

main42611-2B100×4iST202199311

14X6JJ NO MARK,TYPE B:REFER TO ILLUSTRATION

main42611-2B110×4iST204199311

15X6.5JJ,TYPE C:REFER TO ILLUSTRATION

main42611-2B130×4iST204;ST202..LHD199508

15X7JJ TMH,TYPE A:REFER TO ILLUSTRATION

main42611-2B140×4iST205199508-199712

16X7.5JJ,TYPE B:REFER TO ILLUSTRATION

main42611-2B190×4iST202199606

14X6JJ TMH,TYPE B:REFER TO ILLUSTRATION

main42611-2B200×4iST205199712

16X7.5JJ,TYPE B:REFER TO ILLUSTRATION

42601AWHEEL, DISC (FOR SPARE)

main42611-20880-01iST202199311

14X6JJ,TYPE D:REFER TO ILLUSTRATION,BLACK

main42611-2B060iST204;ST202..LHD..GEN199311-199508

15X7JJ TMH,TYPE A:REFER TO ILLUSTRATION

main42611-2B090iST205199402-199508

16X7.5JJ,TYPE E:REFER TO ILLUSTRATION

main42611-2B100iST202199311

14X6JJ NO MARK,TYPE B:REFER TO ILLUSTRATION

main42611-2B110iST204199311

15X6.5JJ,TYPE C:REFER TO ILLUSTRATION

main42611-2B130iST204;ST202..LHD199508

15X7JJ TMH,TYPE A:REFER TO ILLUSTRATION

main42611-2B140iST205199508-199712

16X7.5JJ,TYPE B:REFER TO ILLUSTRATION

main42611-2B190iST202199606

14X6JJ TMH,TYPE B:REFER TO ILLUSTRATION

main42611-2B200iST205199712

16X7.5JJ,TYPE B:REFER TO ILLUSTRATION

42601CNUT, HUB (FOR AXLE)

main90942-01021×20iST202,204199311

TYPE A:REFER TO ILLUSTRATION

main90942-01058×20iST202,204199311-199508

TYPE B:REFER TO ILLUSTRATION

main90942-01062×20iST205199402-199508

TYPE B:REFER TO ILLUSTRATION

42611GVALVE (FOR TUBELESS TIRE)

main90942-05009×4iST20#199311

42611JVALVE (FOR TUBELESS TIRE SPARE)

main90942-05009iST20#199311

42652TIRE

main42652-2B340×4iST204199311-199508

205/55R15,*D/L,*T/Y

main42652-2B341×4iST204199508

205/55R15,*D/L,*T/Y

main42652-2B350×4iST202..LHD..GEN199311-199508

205/55R15

main42652-2B380×4iST202199311-199508

195/65R14

main42652-2B381×4iST202199508

195/65R14

main42652-2B390×4iST205199402

215/50ZR16

main42652-2B610×4iST204199408-199508

205/55R15,*B/S

main42652-2B611×4iST204199508

205/55R15,*B/S

42652ATIRE (FOR SPARE)

main42652-2B340iST204199311-199508

205/55R15,*D/L,*T/Y

main42652-2B341iST204199508

205/55R15,*D/L,*T/Y

main42652-2B350iST202..LHD..GEN199311-199508

205/55R15

main42652-2B380iST202199311-199508

195/65R14

main42652-2B381iST202199508

195/65R14

main42652-2B390iST205199402

215/50ZR16

main42652-2B610iST204199408-199508

205/55R15,*B/S

main42652-2B611iST204199508

205/55R15,*B/S

7 parts on this diagram · 3 diagrams in section
