TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (ATM)

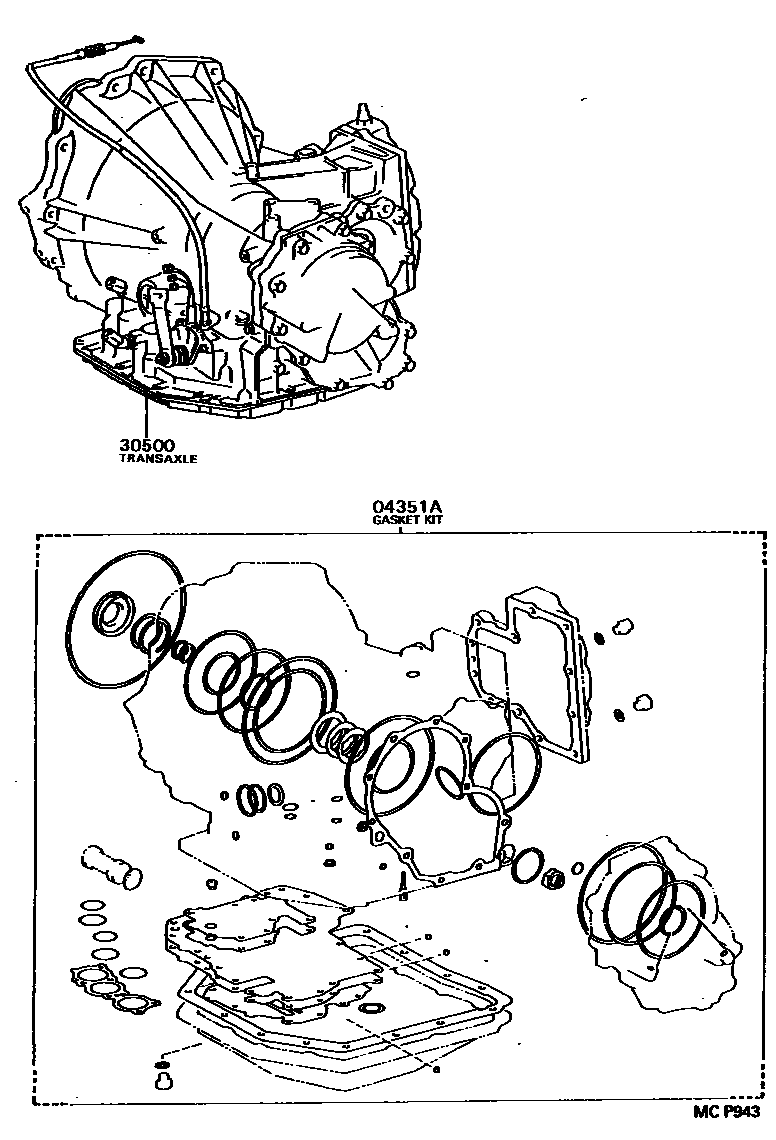

Parts diagram

04351AGASKET KIT, TRANSAXLE OVERHAUL(ATM)

main04351-20090i199311-199402

main04351-20110i199402

main04351-33010i199311

30500TRANSAXLE ASSY, AUTOMATIC

main30500-2B400i199311

main30500-2B420i199311

2 parts on this diagram · 1 diagram in section
