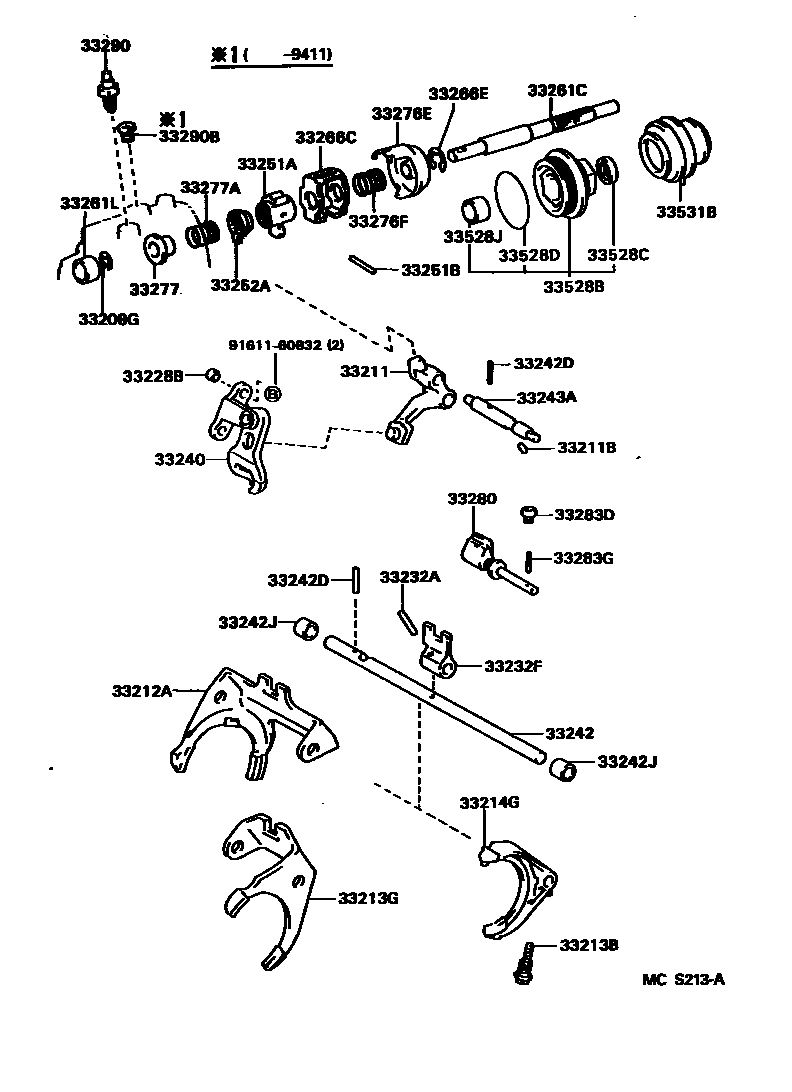

GEAR SHIFT FORK & LEVER SHAFT (MTM)
33208GRING, E(FOR REVERSE RESTRICT PIN)
33213GFORK, GEAR SHIFT, NO.2
33228BPIN, RING(FOR REVERSE SHIFT ARM BRACKET)
33232APIN, SLOTTED SPRING (FOR SHIFT HEAD SET)
33242DPIN, SLOTTED SPRING (FOR SHIFT FORK SHAFT)
33242JBUSH (FOR SHIFT FORK SHAFT)
L=12.0
L=10.1
33243ASHAFT, GEAR SHIFT FORK, NO.2
33251ALEVER, SHIFT, INNER NO.1
33251BPIN, SLOTTED SPRING (FOR SHIFT INNER LEVER)
L=32
L=47.0
L=25.5
33261LBUSH, BIMETAL FORMED (FOR SHIFT & SELECT LEVER SHAFT)
33266ERING, E (FOR SHIFT INTERLOCK PLATE)
33276FSPRING, COMPRESSION, NO.1 (FOR SELECT RETURN)
33277ASPRING, COMPRESSION, NO.2 (FOR SELECT RETURN)
33283DPLUG (FOR REVERSE RESTRICT PIN)
33283GPIN, SLOTTED SPRING (FOR REVERSE RESTRICT PIN)
33290BALL ASSY, LOCK, NO.1
33290BBALL ASSY, LOCK, NO.2
33528CSEAL, OIL (FOR CONTROL SHAFT COVER)
33528DRING, O (FOR CONTROL SHAFT COVER)
33528JBUSH, BIMETAL FORMED (FOR CONTROL SHAFT COVER)
33531BBOOT, DUST (FOR SHIFT & SELECT LEVER SHAFT)
9161160832
main91611-60832
37 parts on this diagram · 2 diagrams in section
