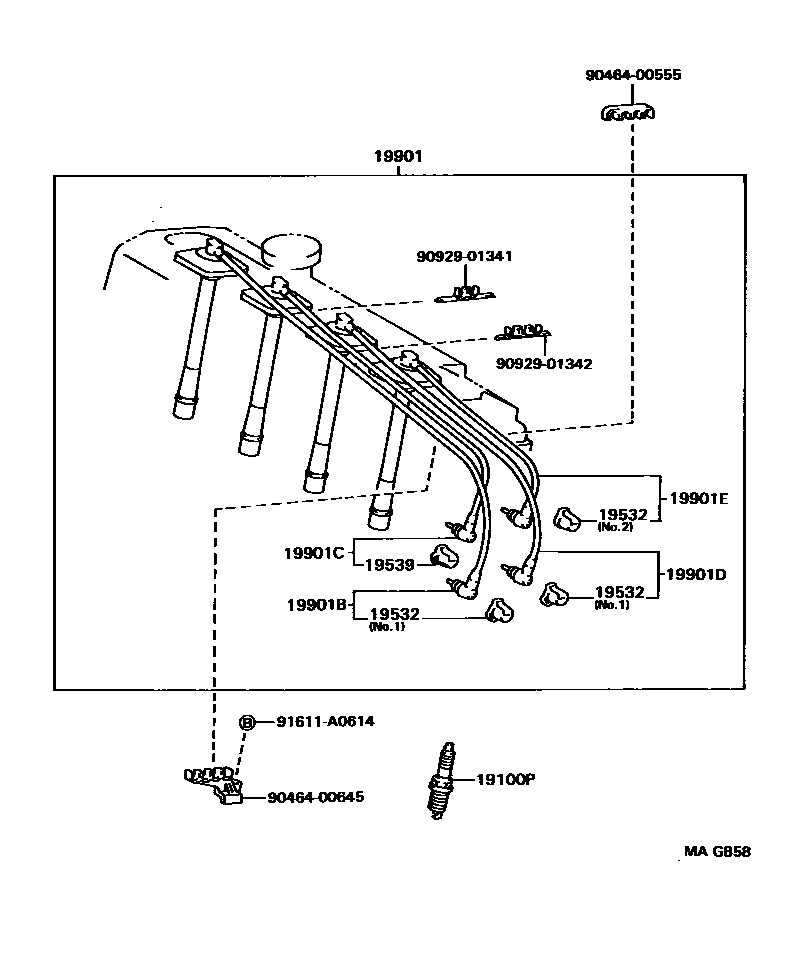

IGNITION COIL & SPARK PLUG / GLOW PLUG

0001 1 0002 1

19100PPLUG, SPARK

main90919-01178i5SFE..ST204199311

PK20R11

sub90919-01210

main90919-01180i3SGTE..ST205199402

PK20R8

sub90919-01231

main90919-01184i3SFE..ST202199311

K20R-U11

19532HOLDER, RESISTIVE CODE, NO.2

main19532-46010i3SFE,5SFE..ST202,204199311

NO.1

main19532-50010i3SFE,5SFE..ST202,204199311-199412

NO.2

main19539-74030i3SFE,5SFE..ST202,204199412

NO.2

19539HOLDER, RESISTIVE CODE, NO.4

main19539-62020i3SFE,5SFE..ST202,204199311-199412

main19539-74040i3SFE,5SFE..ST202,204199412

19901CORD SET, COIL & SPARK, W/RESISTIVE

main90919-21578i3SGTE..ST205199402

main90919-22369i3SFE,5SFE..ST202,204199311-199407

SUMITOMO

sub90919-22370

main90919-22370i3SFE,5SFE..ST202,204199408

main90919-22370i3SFE,5SFE..ST202,204199311-199408

YAZAKI

19901BCORD, SPARK PLUG RESISTIVE, NO.1

main90919-15392i3SGTE..ST205199402

main90919-15406i3SFE,5SFE..ST202,204199311-199407

SUMITOMO

sub90919-15409

main90919-15409i3SFE,5SFE..ST202,204199311-199408

YAZAKI

main90919-15409i3SFE,5SFE..ST202,204199408

19901CCORD, SPARK PLUG RESISTIVE, NO.2

main90919-15393i3SGTE..ST205199402

main90919-15408i3SFE,5SFE..ST202,204199311-199407

SUMITOMO

sub90919-15411

main90919-15411i3SFE,5SFE..ST202,204199408

main90919-15411i3SFE,5SFE..ST202,204199311-199408

YAZAKI

19901DCORD, SPARK PLUG RESISTIVE, NO.3

main90919-15394i3SGTE..ST205199402

main90919-15407i3SFE,5SFE..ST202,204199311-199407

SUMITOMO

sub90919-15410

main90919-15410i3SFE,5SFE..ST202,204199408

main90919-15410i3SFE,5SFE..ST202,204199311-199408

YAZAKI

19901ECORD, SPARK PLUG RESISTIVE, NO.4

main90919-15259i3SFE,5SFE..ST202,204199311-199407

SUMITOMO

sub90919-15261

main90919-15261i3SFE,5SFE..ST202,204199311-199408

YAZAKI

main90919-15261i3SFE,5SFE..ST202,204199408

main90919-15395i3SGTE..ST205199402

9046400555

main90464-00555

9046400645

main90464-00645

9092901341

main90929-01341

9092901342

main90929-01342

91611A0614

main91611-A0614

13 parts on this diagram · 2 diagrams in section
