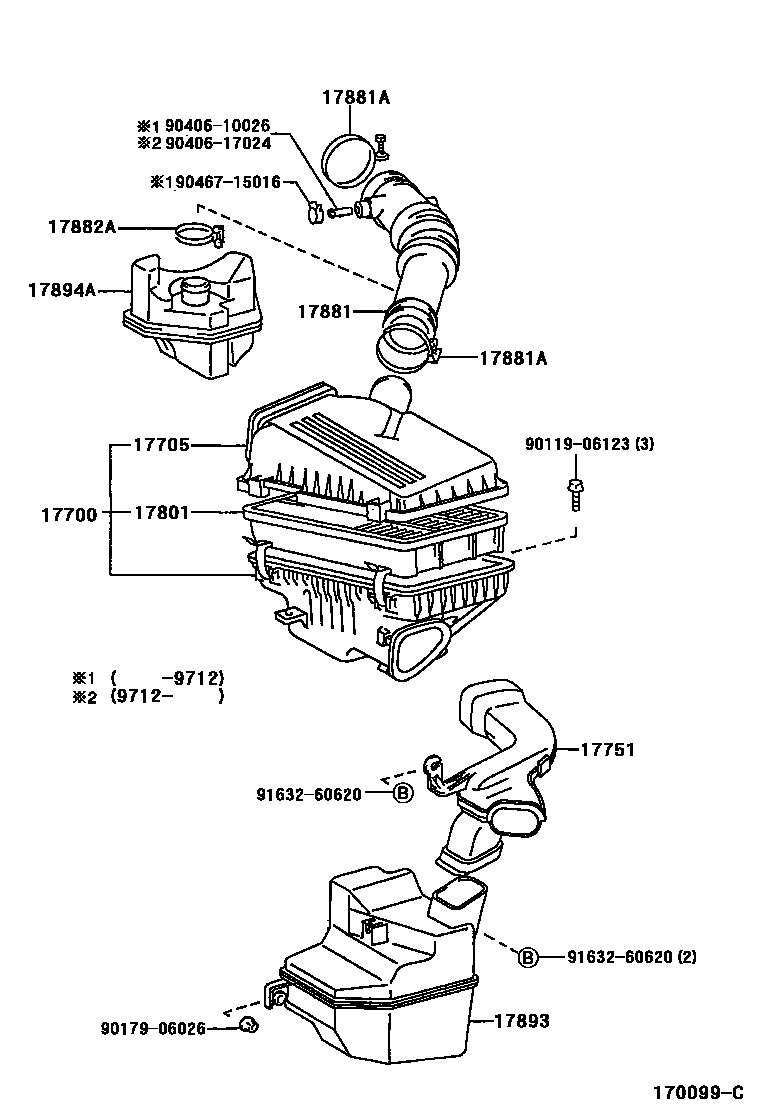

AIR CLEANER

0001 1 0002 1

17700CLEANER ASSY, AIR

main17700-74480i3SFE,5SFE..ST202,204199311

main17700-74490i3SGTE..ST205199402

17705CAP SUB-ASSY, AIR CLEANER

main17705-74320i3SFE,5SFE..ST202,204199311

main17705-74330i3SGTE..ST205199402

17751INLET, AIR CLEANER, NO.1

main17751-74030i3S#,5SFE..ST20#199311-199501

main17751-74040i3S#,5SFE..ST20#199501

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-74060i3S#,5SFE..ST20#199311

17881HOSE, AIR CLEANER, NO.1

main17659-88381i3SGTE..ST205199402

NO.1

main17881-74520i3SFE,5SFE..ST202,204199311-199508

main17881-74590i3SGTE..ST205199402

NO.2

main17881-74690i3SFE,5SFE..ST202,204199508-199712

main17881-74691i3SFE,5SFE..ST202,204199712

17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)

main90460-67004i3SGTE..ST205199402

INTERCOOLER SIDE

main90929-01340i3SGTE..ST205199402

TURBOCHARGER SIDE

main96111-10710×2i3SFE,5SFE..ST202,204199311

17882ACLAMP(FOR AIR CLEANER HOSE, NO.2)

main96111-10400i3SFE,5SFE..ST202,204199311

17893RESONATOR, INTAKE AIR

main17893-74290i3SFE,5SFE..ST202,204199311

main17893-74300i3SGTE..ST205199402

17894ARESONATOR, INTAKE AIR, NO.2

main17894-74040i3SFE,5SFE..ST202,204199311

9011906123

main90119-06123

9017906026

main90179-06026

9040610026

main90406-10026

9040617024

main90406-17024

9046715016

main90467-15016

9163260620

main91632-60620

15 parts on this diagram · 2 diagrams in section
