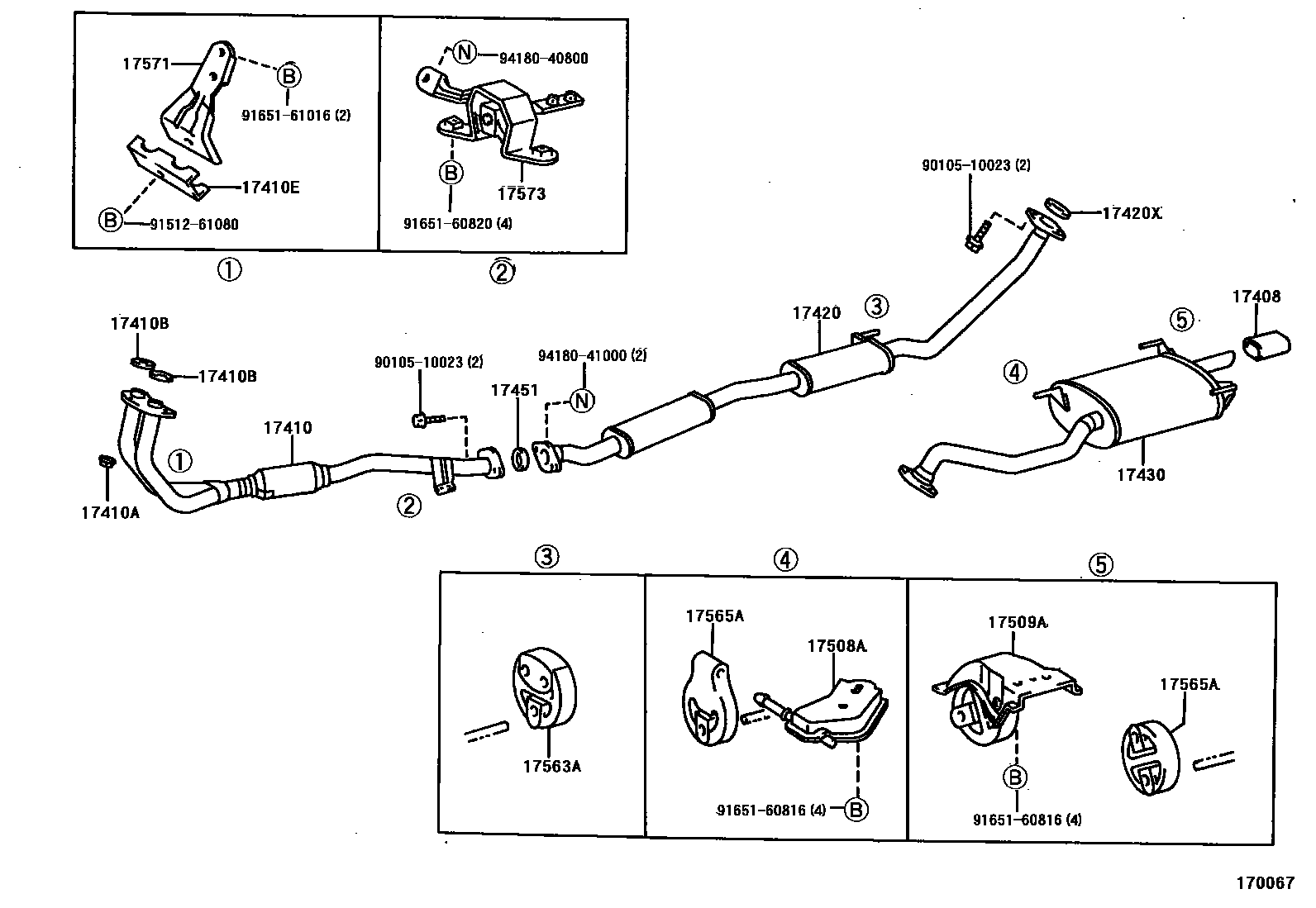

EXHAUST PIPE
17408BAFFLE SUB ASSY, EXHAUST TAILPIPE
17410PIPE ASSY, EXHAUST, FRONT
17410ANUT, EXHAUST PIPE SET STUD BOLT
17410BGASKET, EXHAUST PIPE
17410ECLAMP NO.1, EXHAUST PIPE FRONT (FOR FRONT)
17420PIPE ASSY, EXHAUST, CENTER
17420XGASKET, EXHAUST PIPE, CENTER
17430PIPE ASSY, EXHAUST, TAIL
17451GASKET, EXHAUST PIPE
17508ABRACKET SUB-ASSY, EXHAUST PIPE NO.3 SUPPORT
17509ABRACKET SUB-ASSY, EXHAUST PIPE NO.4 SUPPORT
17563ASUPPORT, EXHAUST PIPE, NO.3
17565ASUPPORT, EXHAUST PIPE, NO.4
FRONT
REAR
17571BRACKET, EXHAUST PIPE SUPPORT, NO.1
17573BRACKET, EXHAUST PIPE NO.1 SUPPORT, LOWER
9010510023
main90105-10023
9151261080
main91512-61080
9165160816
main91651-60816
9165160820
main91651-60820
9165161016
main91651-61016
9418040800
main94180-40800
9418041000
main94180-41000
22 parts on this diagram · 3 diagrams in section
