V-BELT

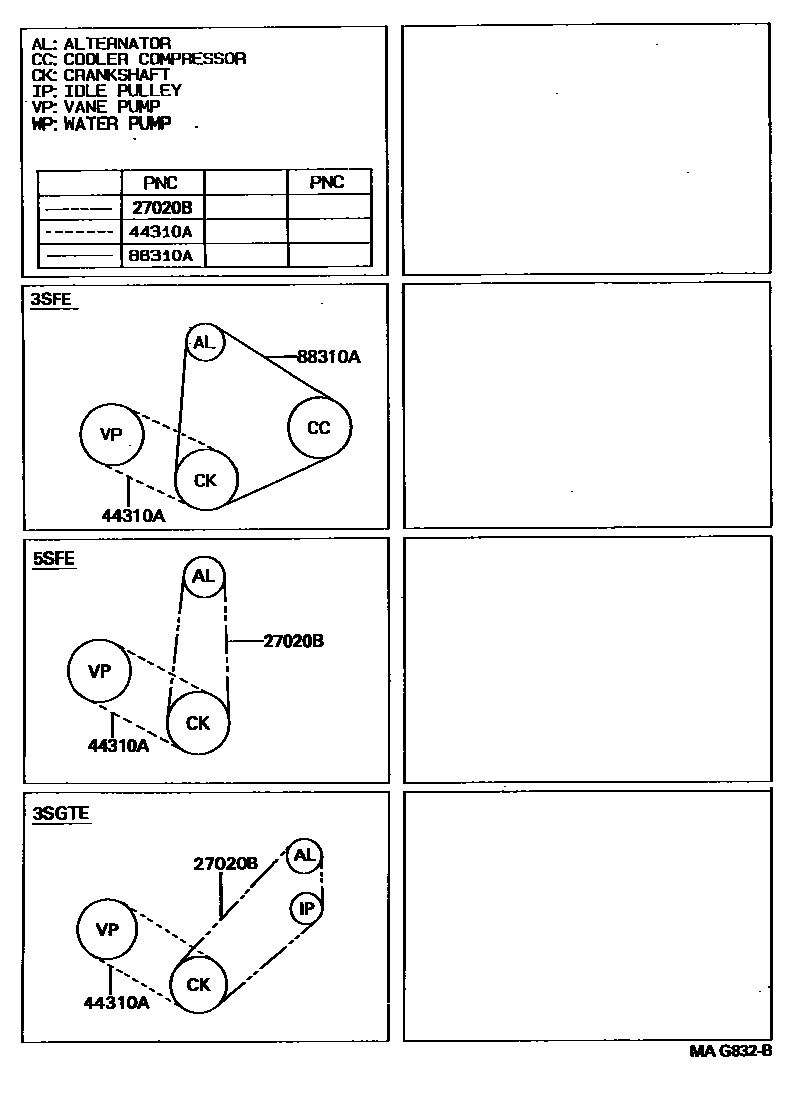

Parts diagram

27020BBELT, V(FOR ALTERNATOR)

main90916-02355i199311-199408

MITSUBOSHI

main90916-02356i199311-199402

BANDO

main90916-02402i199402-199508

MITSUBOSHI

main90916-02403i199402-199508

BANDO

44310ABELT, V(FOR VANE PUMP)

main90916-02205i199311-199406

main99363-80760i199406-199604

main99363-90760i199604

88310ABELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1

main90080-91099i199601

GOOD YEAR

main90916-02395i199402-199508

BANDO

main90916-02396i199402-199508

MITSUBOSHI

main99365-71110i199311-199508

BANDO

main99365-81110i199601-199612

BANDO

3 parts on this diagram · 1 diagram in section
