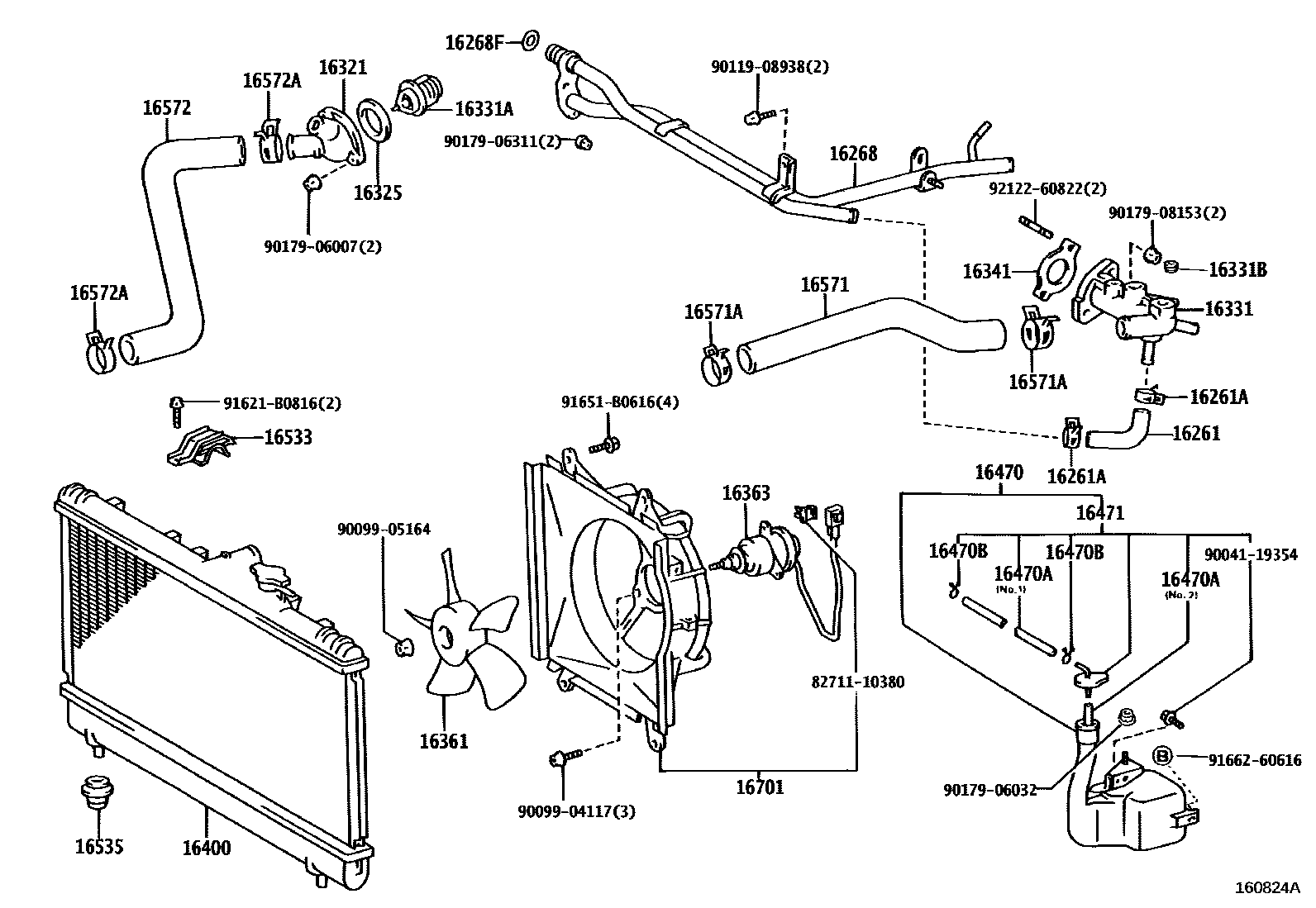

RADIATOR & WATER OUTLET

0001 1 0002 1 0003 1 0004 1

16261HOSE, WATER BY-PASS

main16261-74010i3SFE,5SFE..ST202,204199311-199508

main16261-74091i3SGTE..ST205199402-199508

GROUP A SPEC

main16261-74100i3SFE,5SFE..ST202,204199508

main16261-88460i3SGTE..ST205199402

16261ACLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)

main90467-22003×2i3SFE,5SFE..ST202,204199311

main90467-23013×2i3SGTE..ST205199402

16268PIPE, WATER BY-PASS, NO.1

main16268-74152i3SFE..ST202..GEN;5SFE..ST204..ATM199311-199502

main16268-74153i3SFE..ST202..GEN;5SFE..ST204..ATM199502-199508

main16268-74163i3SFE..ST202..GCC199311-199508

main16268-74171i5SFE..ST204..MTM199311-199508

main16268-74190i3SFE..ST202..GEN;5SFE..ST204..ATM199508

main16268-74200i3SFE..ST202..GCC199508

main16268-74230i5SFE..ST204..MTM199508

main16268-88480i3SGTE..ST205199402

16268FRING, O(FOR WATER BY-PASS PIPE)

main96761-24017i3SFE,5SFE..ST202,204199311

main96761-24019i3SGTE..ST205199402

16321INLET, WATER

main16321-74030i3SFE..ST202199311-199508

main16321-74050i3SFE..ST202199508

main16321-88381i5SFE..ST204199311

main16321-88460i3SGTE..ST205199402

16325GASKET, WATER INLET HOUSING, NO.1

main16325-62010i5SFE..ST204199311

main16325-63011i3SFE..ST202199311

16331OUTLET, WATER

main16304-88481i3SGTE..ST205199402

main16331-74170i3SFE,5SFE..ST202,204199311-199508

main16331-74210i3SFE,5SFE..ST202,204199508-199607

main16331-74220i3SFE..ST202199607

main16331-74260i3SFE..ST202; 5SFE..ST204199707

W(WATER OUTLET PLUG)

16331ATHERMOSTAT

main90916-03046i3SFE..ST202199311-199603

*WAX 82-95

main90916-03075i5SFE..ST204199311

*WAX 82-95

main90916-03090i3SFE..ST202199603

*WAX 82-95

main90916-03100i3SGTE..ST205199402

*WAX 82-95

16331BPLUG(FOR WATER OUTLET)

main90345-53007i3SFE..ST202199607

main90345-53009i3SFE..ST202199311-199607

16341GASKET, WATER OUTLET

main16341-74020i3SFE,5SFE..ST202,204199311

main16341-88460i3SGTE..ST205199402

16361FAN

main16361-64020i3SGTE..ST205199402

main16361-74060i3SFE,5SFE..ST202,204199311

16363MOTOR, COOLING FAN

main16363-11020i3SFE,5SFE..ST202,204199311

main16363-74030i3SGTE..ST205199402

16400RADIATOR ASSY

main16400-7A060i3SFE..ST202..MTM..GEN199311

main16400-7A070i3SFE..ST202..ATM199311

main16400-7A080i3S#,5SFE..ST20#..MTM..(ARL,GCC)199311

main16400-7A090i5SFE..ST204..ATM199311

16470TANK ASSY, RADIATOR RESERVE

main16470-74260i3SFE,5SFE..ST202,204199311

main16470-74270i3SGTE..ST205199402

16470AHOSE OR PIPE(FOR RADIATOR RESERVE TANK)

main90445-12066i3SFE,5SFE..ST202,204199311

L=600(*H,L=300),NO.2

main90445-12078i3S#,5SFE..ST20#199311

L=600(*H,L=210),NO.1

16470BCLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)

main90467-11085×2i3S#,5SFE..ST20#199311

16471CAP SUB-ASSY, RESERVE TANK

main16405-74250i3SFE,5SFE..ST202,204199311

main16405-74260i3SGTE..ST205199402

16533SUPPORT, RADIATOR, UPPER

main16533-74260×2i3S#,5SFE..ST20#199311

16535SUPPORT, RADIATOR, LOWER

main90916-04002×2i3S#,5SFE..ST20#199311

16571HOSE, RADIATOR, INLET

main16571-74280i3SFE,5SFE..ST202,204199311-199508

main16571-74290i3SGTE..ST205199402

main16571-74340i3SFE,5SFE..ST202,204199508

16571ACLAMP OR CLIP, HOSE(FOR RADIATOR INLET)

main90467-34003×2i3S#,5SFE..ST20#199311

16572HOSE, RADIATOR, OUTLET

main16572-74230i3SFE,5SFE..ST202,204199311

main16572-74240i3SGTE..ST205199402

16572ACLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)

main90467-34003×2i3S#,5SFE..ST20#199311

16701SHROUD SUB-ASSY, FAN

main16711-74500i3SFE,5SFE..ST202,204199311-199505

main16711-74501i3SFE,5SFE..ST202,204199505

main16711-74520i3SGTE..ST205199402

8271110380WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-10380

9004119354

main90041-19354

9009904117

main90099-04117

9009905164

main90099-05164

9011908938

main90119-08938

9017906007

main90179-06007

9017906032

main90179-06032

9017906311

main90179-06311

9017908153

main90179-08153

91621B0816

main91621-B0816

91651B0616

main91651-B0616

9166260616

main91662-60616

9212260822

main92122-60822

37 parts on this diagram · 4 diagrams in section
