ENGINE OVERHAUL GASKET KIT

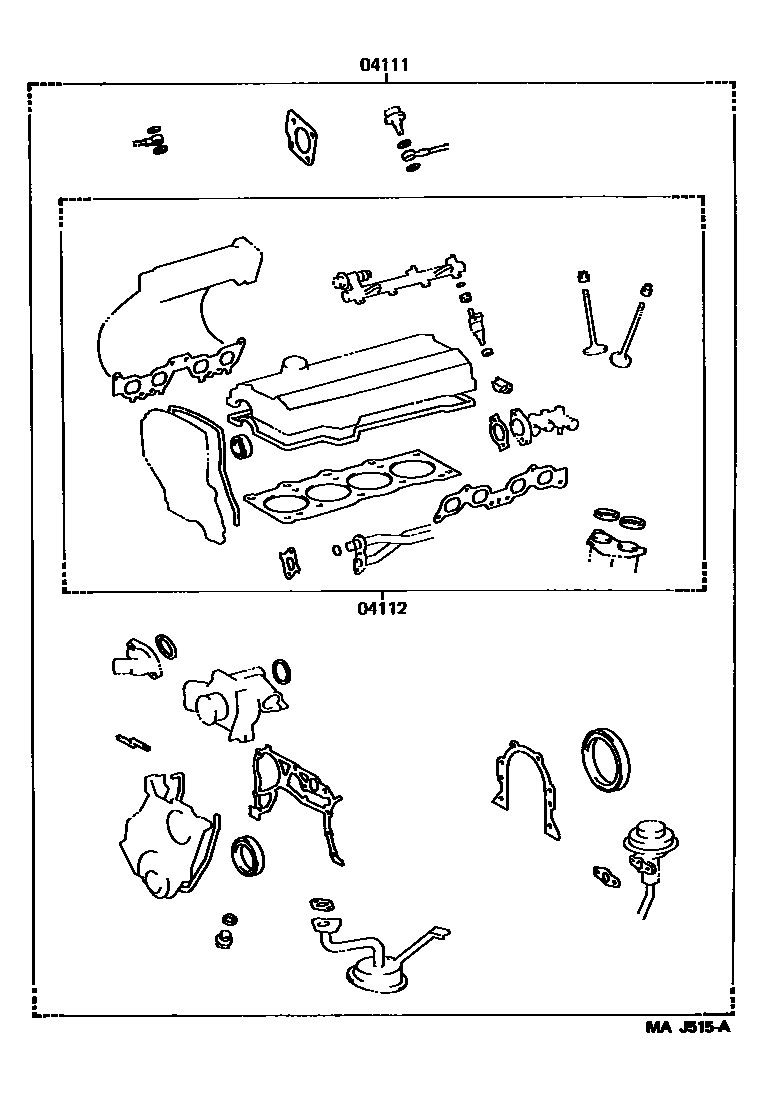

Parts diagram

04111GASKET KIT, ENGINE OVERHAUL

main04111-74490i199311-199508

main04111-74500i199311-199508

main04111-74540i199402-199702

main04111-74541i199702

main04111-74590i199508-199601

main04111-74591i199601-199612

main04111-74592i199612

main04111-74610i199508-199612

main04111-74611i199612

04112GASKET KIT, ENGINE VALVE GRIND

main04112-74490i199311-199508

main04112-74500i199311-199508

main04112-74520i199402-199702

main04112-74521i199702

main04112-74560i199508-199601

main04112-74561i199601-199612

main04112-74562i199612

main04112-74580i199508-199612

main04112-74581i199612

2 parts on this diagram · 5 diagrams in section
