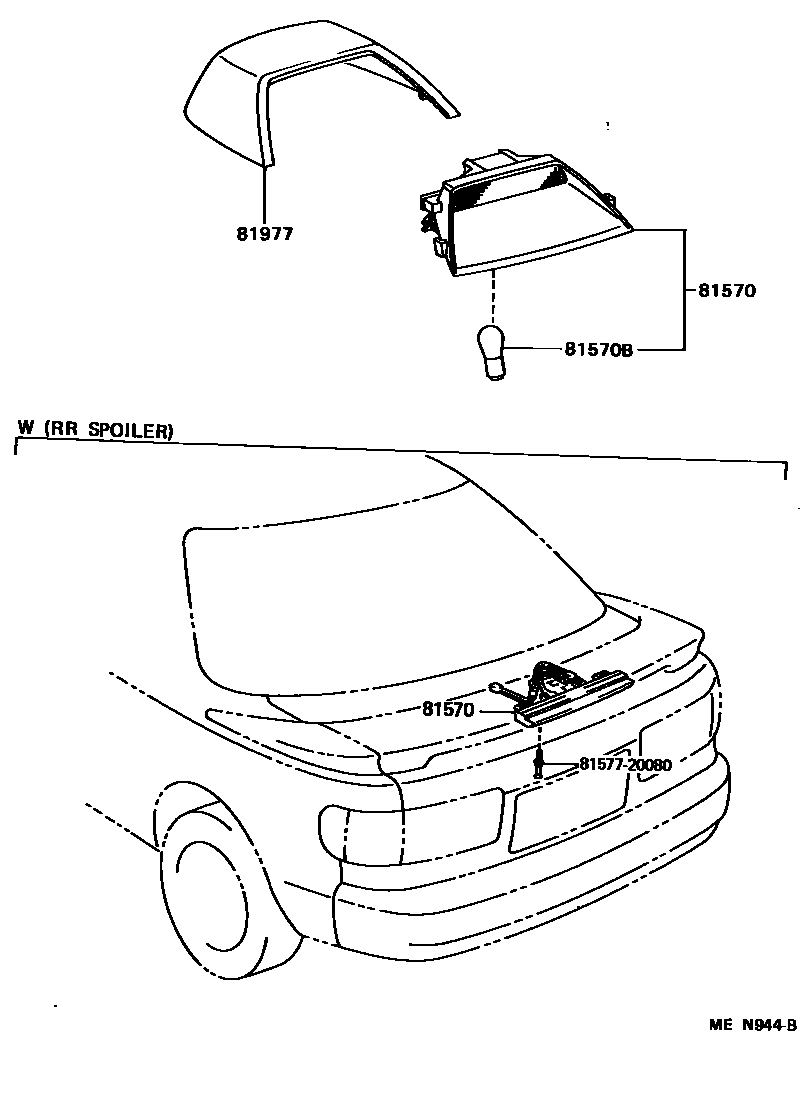

CENTER STOP LAMP

0001 1 0002 1

81570LAMP ASSY, CENTER STOP

main81570-20060iST184..CP198910-199311

main81570-20070iST184..LB..NOB198910-199311

main81570-20080iST182,185;ST184..WIB199108-199311

main81570-20120iST184..CP199008-199311

W(REAR SPOILER)

81570BBULB (FOR CENTER STOP LAMP)

main99132-11270iST184..CP; ST184..LB..NOB198910-199311

12V 27W

81977COVER, CENTER STOP LAMP

main81977-20030-03iST184..CP198910-199311

SHADOW GRAY,TRIM1#

main81977-20030-04iST184..CP198910-199208

DARK BLUE,TRIM8#

main81977-20040-03iST184..LB..NOB198910-199311

SHADOW GRAY,TRIM1#

main81977-20040-04iST184..LB..NOB198910-199208

DARK BLUE,TRIM8#

8157720080

main81577-20080

4 parts on this diagram · 2 diagrams in section
