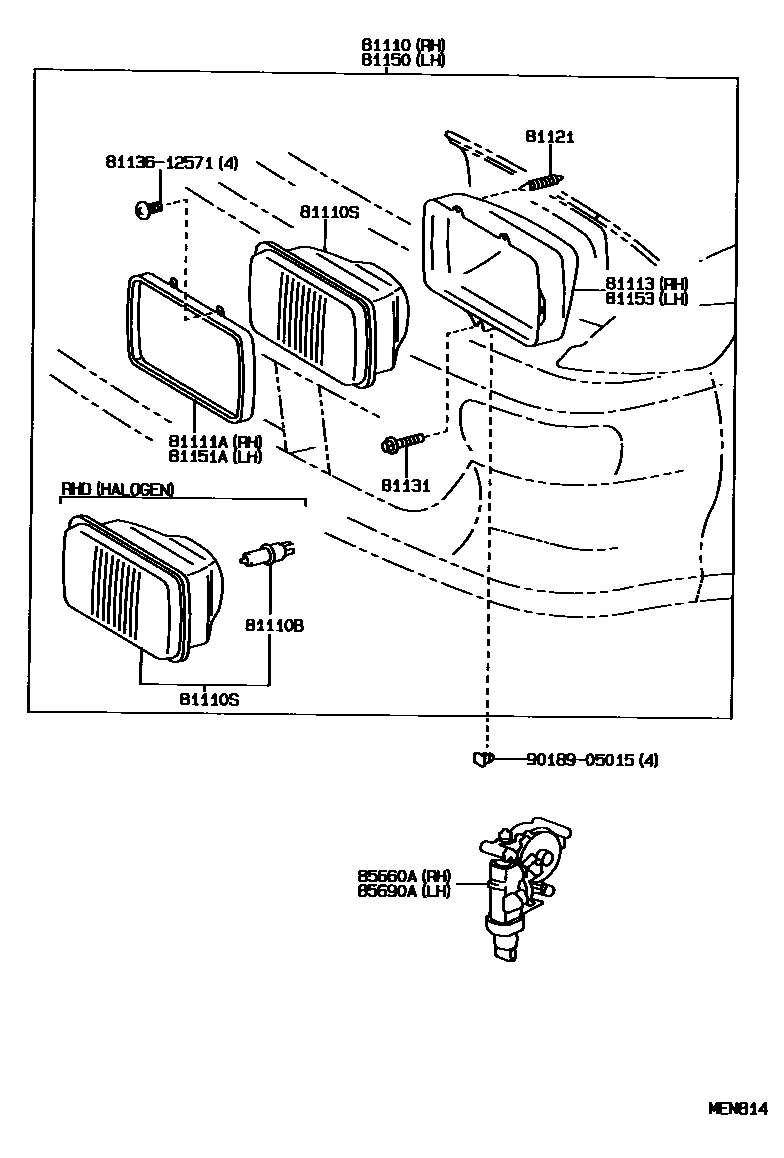

HEADLAMP
81110HEADLAMP ASSY, RH
LH TRAFFIC SPEC
W(SEMI SEALED HALOGEN WHITE HEADLAMP)
W(SEMI SEALED HALOGEN YELLOW HEADLAMP)
81110BBULB(FOR HEADLAMP, NO.1)
12V 60/55W,*HAL *WH
12V 60/55W,*HAL *YE
81110SSEALED BEAM UNIT, NO.1
12V 65/55W,*WB
12V 65/35W,*HAL,*WB,W(SEALED HALOGEN WHITE HEADLAMP)
12V 65/55W,*WB; 12V 65/55W,*WB,LH TRAFFIC SPEC
12V 60/55W,*HWS; 12V 60/55W,*HWS,W(SEMI SEALED HALOGEN WHITE HEADLAMP)
12V 70/55W,*HAL,*WB
81111ARING, SEALED BEAM RETAINING, NO.1 RH
81113RING, SEALED BEAM MOUNTING, NO.1 RH
81121SPRING, HEADLAMP TENSION
81131SCREW, HEADLAMP ADJUSTING
81150HEADLAMP ASSY, LH
LH TRAFFIC SPEC
W(SEMI SEALED HALOGEN WHITE HEADLAMP)
W(SEMI SEALED HALOGEN YELLOW HEADLAMP)
W(SEALED HALOGEN WHITE HEADLAMP)
81151ARING, SEALED BEAM RETAINING, NO.1 LH
81153RING, SEALED BEAM MOUNTING, NO.1 LH
85660AMOTOR ASSY, LIGHT RETRACTOR, RH
85690AMOTOR ASSY, LIGHT RETRACTOR, LH
8113612571PROTECTOR, HEADLAMP, NO.1 RH
main81136-12571
9018905015
main90189-05015
14 parts on this diagram · 2 diagrams in section
