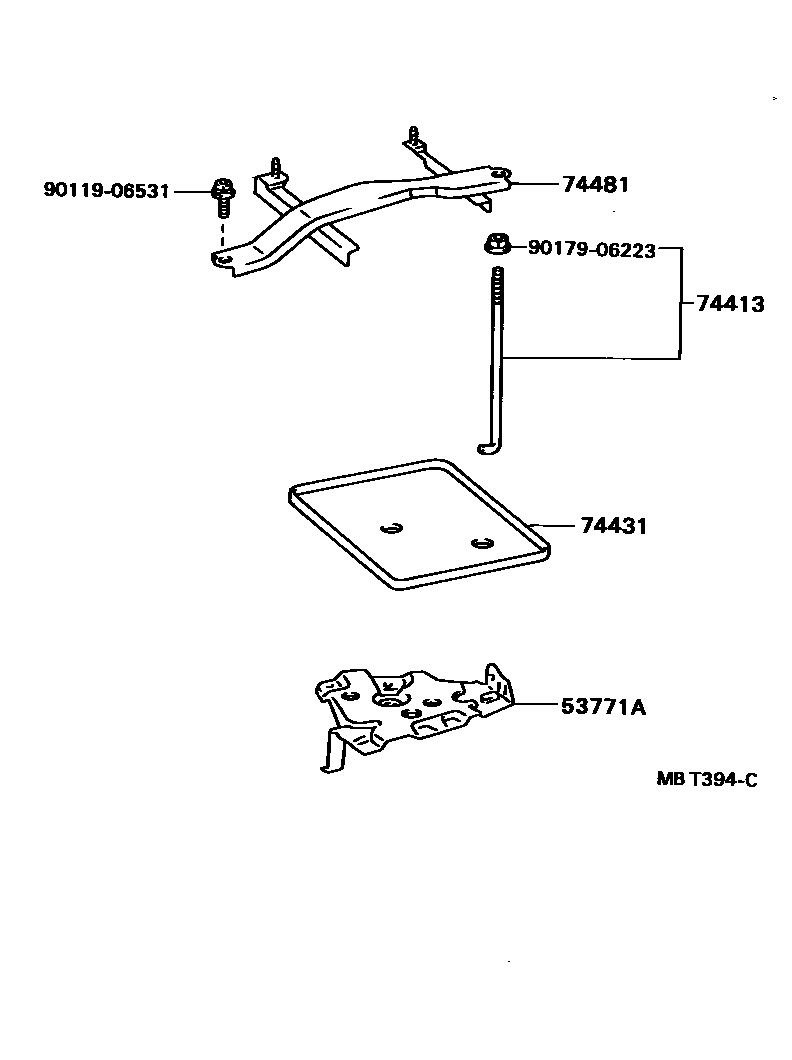

BATTERY CARRIER

53771ASUPPORT, BATTERY CARRIER

main53771-20050iAT180,ST18#198910-199311

74413BOLT, BATTERY CLAMP

main74451-20070iST185198910-198911

74431TRAY, BATTERY

main74431-20050iST185198910-198911

main74431-20060iAT180,ST18#199108-199311

74481CLAMP, BATTERY HOLD DOWN

main74404-20370iST184,185199108-199311

main74404-20380iAT180,ST182198911-199311

(N40L)32C24L

main74404-20390iAT180,ST182198911-199311

9011906531

main90119-06531

9017906223

main90179-06223

6 parts on this diagram · 1 diagram in section
