INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING

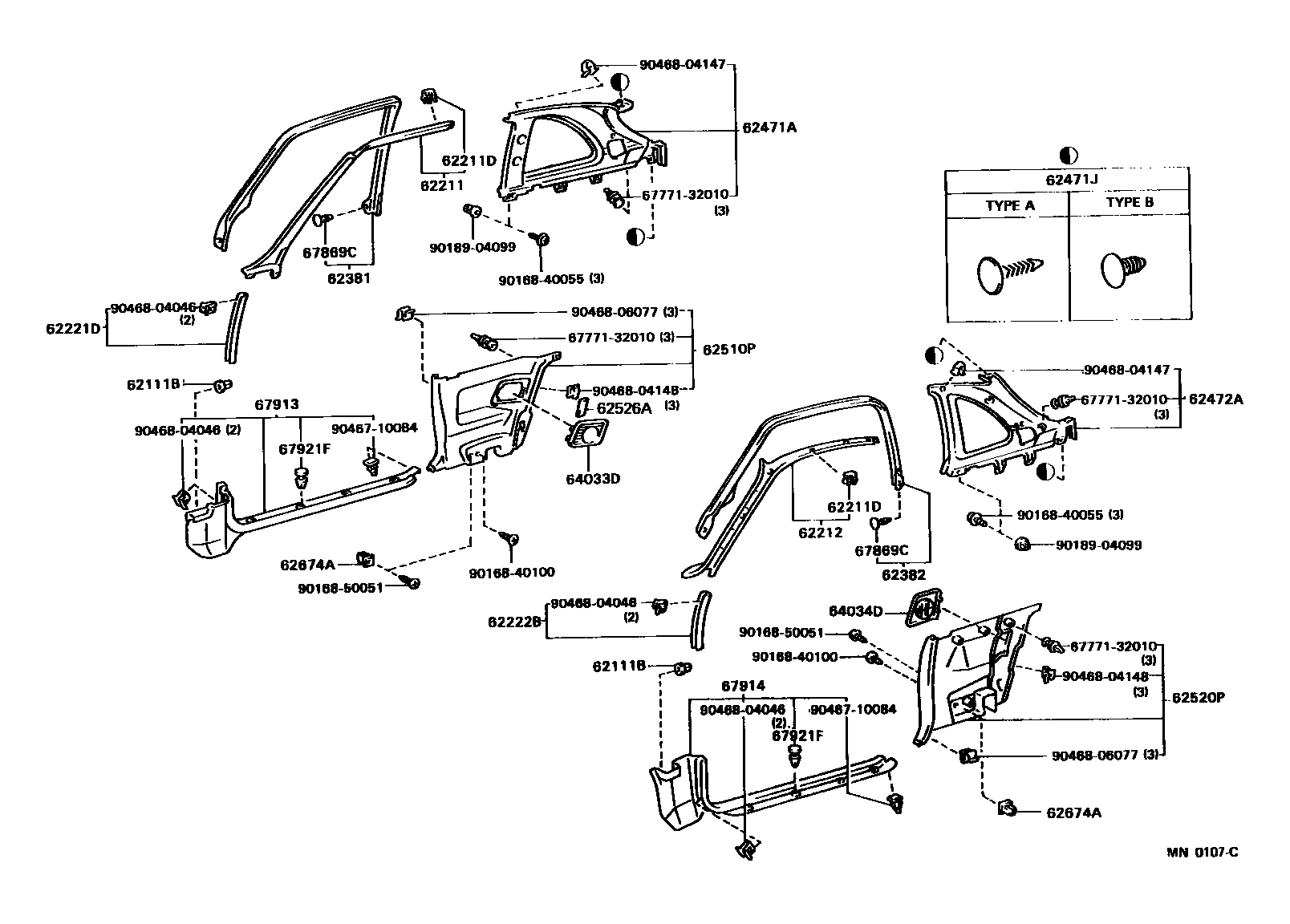

Parts diagram
62111BCLIP(FOR COWL SIDE TRIM)
main90467-06120i198910-199311
62211GARNISH, FRONT PILLAR, RH
main62210-20030-03i198910-199311
SHADOW GRAY,TRIM1#
sub62210-20030
main62210-20030-04i198911-199311
DARK BLUE,TRIM8#
sub62210-20030
main62211-20190-03i198910-199311
SHADOW GRAY,TRIM1#
main62211-20190-04i198910-199311
DARK BLUE,TRIM8#
62211DCLIP(FOR FRONT BODY PILLAR GARNISH)
main90468-05077i198910-199311
62212GARNISH, FRONT PILLAR, LH
main62212-20190-03i198910-199311
SHADOW GRAY,TRIM1#
main62212-20190-04i198910-199311
DARK BLUE,TRIM8#
main62220-20030-03i198910-199311
SHADOW GRAY,TRIM1#
sub62220-20030
main62220-20030-04i198911-199311
DARK BLUE,TRIM8#
sub62220-20030
62221DCOVER, FRONT PILLAR GARNISH, RH
main62221-20020-03i198910-199311
SHADOW GRAY,TRIM1#
sub62221-20020
main62221-20020-04i198910-199311
DARK BLUE,TRIM8#
sub62221-20020
62222BCOVER, FRONT PILLAR GARNISH, LH
main62222-20020-03i198910-199311
SHADOW GRAY,TRIM1#
sub62222-20020
main62222-20020-04i198910-199208
DARK BLUE,TRIM8#
sub62222-20020
main62222-20020-04i199208-199311
DARK BLUE,DARK BLUE,TRIM8#
sub62222-20020
62381WEATHERSTRIP, ROOF SIDE RAIL, FRONT RH
main62381-20070i198910-199008
sub62381-20071
main62381-20071i199008-199103
sub62381-20072
main62381-20072i199103-199311
62382WEATHERSTRIP, ROOF SIDE RAIL, FRONT LH
main62382-20070i198910-199008
sub62382-20071
main62382-20071i199008-199103
sub62382-20072
main62382-20072i199103-199311
62471AGARNISH, ROOF SIDE, INNER RH
main62471-20330-03i198911-199108
SHADOW GRAY,TRIM1#
main62471-20330-04i198911-199108
DARK BLUE,TRIM8#
main62471-20340-03i198911-199311
SHADOW GRAY,TRIM1#
main62471-20340-03i199008-199108
SHADOW GRAY
main62471-20340-03i198911-199311
W(3POINT TYPE SEAT BELT),SHADOW GRAY,TRIM1#
main62471-20340-04i198911-199311
W(3POINT TYPE SEAT BELT),DARK BLUE,TRIM8#
main62471-20340-04i198911-199311
DARK BLUE,TRIM8#
main62471-20360-03i198911-199311
SHADOW GRAY,TRIM1#
main62471-20360-04i198911-199311
DARK BLUE,TRIM8#
main62471-20370-03i198911-199108
SHADOW GRAY,TRIM1#
main62471-20370-04i198911-199108
DARK BLUE,TRIM8#
main62471-20380-03i198910-199311
SHADOW GRAY,TRIM1#
main62471-20380-03i198911-199108
W(3POINT TYPE SEAT BELT),SHADOW GRAY,TRIM1#
main62471-20380-04i198911-199108
W(3POINT TYPE SEAT BELT),DARK BLUE,TRIM8#
main62471-20380-04i198910-199208
DARK BLUE,TRIM8#
62471JCLIP (FOR ROOF SIDE GARNISH)
main90467-05020-01i198911-199108
BLACK,TRIM1#,TYPE A
sub90467-05020
sub90467-05027
main90467-05020-01i198910-199311
BLACK,TRIM1#,8#,TYPE A
sub90467-05020
sub90467-05027
main90467-06119-03i198910-199311
SHADOW GRAY,TRIM1#,TYPE B
sub90467-06119
main90467-06119-03i199008-199108
TYPE B,SHADOW GRAY,SHADOW GRAY,TRIM1#
sub90467-06119
main90467-06119-04i198910-199311
DARK BLUE,TRIM8#,TYPE B
sub90467-06119
62472AGARNISH, ROOF SIDE, INNER LH
main62472-20350-03i198911-199108
SHADOW GRAY,TRIM1#
main62472-20350-04i198911-199108
DARK BLUE,TRIM8#
main62472-20360-03i198911-199311
W(3POINT TYPE SEAT BELT),SHADOW GRAY,TRIM1#
main62472-20360-03i198911-199311
SHADOW GRAY,TRIM1#
main62472-20360-04i198911-199311
W(3POINT TYPE SEAT BELT),DARK BLUE,TRIM8#
main62472-20360-04i198911-199311
DARK BLUE,TRIM8#
main62472-20380-03i198911-199311
SHADOW GRAY,TRIM1#
main62472-20380-04i198911-199311
DARK BLUE,TRIM8#
main62472-20390-03i198911-199108
SHADOW GRAY,TRIM1#
main62472-20390-04i198911-199108
DARK BLUE,TRIM8#
main62472-20400-03i198911-199108
W(3POINT TYPE SEAT BELT),SHADOW GRAY,TRIM1#
main62472-20400-03i198910-199311
SHADOW GRAY,TRIM1#
main62472-20400-04i198911-199108
W(3POINT TYPE SEAT BELT),DARK BLUE,TRIM8#
main62472-20400-04i198910-199208
DARK BLUE,TRIM8#
62510PPANEL ASSY, QUARTER TRIM, FRONT RH
main62510-20510-03i198910-199311
SHADOW GRAY,TRIM1#
main62510-20510-04i198910-199311
DARK BLUE,TRIM8#
62520PPANEL ASSY, QUARTER TRIM, FRONT LH
main62520-20510-03i198910-199311
SHADOW GRAY,TRIM1#
main62520-20510-04i198910-199208
DARK BLUE,TRIM8#
main62520-20510-04i199208-199311
DARK BLUE,DARK BLUE,TRIM8#
62526APAD, QUARTER TRIM, UPPER NO.2
main62526-20060i199107-199311
62674ARETAINER, QUARTER TRIM SET
main62674-20010i198910-199311
64033DGRILLE SUB-ASSY, REAR SPEAKER, RH
main64033-20210-03i198910-199311
SHADOW GRAY,TRIM1#
main64033-20210-04i198910-199208
DARK BLUE,TRIM8#
main64033-20210-04i199208-199311
DARK BLUE,DARK BLUE,TRIM8#
64034DGRILLE SUB-ASSY, REAR SPEAKER, LH
main64034-20180-03i198910-199311
SHADOW GRAY,TRIM1#
main64034-20180-04i198910-199208
DARK BLUE,TRIM8#
main64034-20180-04i199208-199311
DARK BLUE,DARK BLUE,TRIM8#
67869CCLIP, ROOF SIDE RAIL WEATHERSTRIP
main67869-20030i198910-199311
67913PLATE, FRONT DOOR SCUFF, RH
main67910-20010-03i198910-199311
SHADOW GRAY,TRIM1#
sub67910-20010
main67910-20010-04i198910-199311
DARK BLUE,TRIM8#
sub67910-20010
main67910-20020-03i198911-199311
SHADOW GRAY,TRIM1#
sub67910-20020
main67910-20020-04i198911-199311
DARK BLUE,TRIM8#
sub67910-20020
67914PLATE, FRONT DOOR SCUFF, LH
main67920-20020-03i198910-199311
SHADOW GRAY,TRIM1#
main67920-20020-04i198910-199311
DARK BLUE,TRIM8#
main67920-20030-03i198911-199311
SHADOW GRAY,TRIM1#
sub67920-20030
main67920-20030-04i198911-199311
DARK BLUE,TRIM8#
sub67920-20030
67921FRETAINER, FRONT DOOR SCUFF PLATE
main67921-20020i198910-199311
FRONT
main67921-95501i198910-199311
REAR
6777132010WEATHERSTRIP, BACK DOOR TRIM, RH
main67771-32010
9016840055
main90168-40055
9016840100
main90168-40100
9016850051
main90168-50051
9018904099
main90189-04099
9046710084
main90467-10084
9046804046
main90468-04046
9046804147
main90468-04147
9046804148
main90468-04148
9046806077
main90468-06077

31 parts on this diagram · 2 diagrams in section
