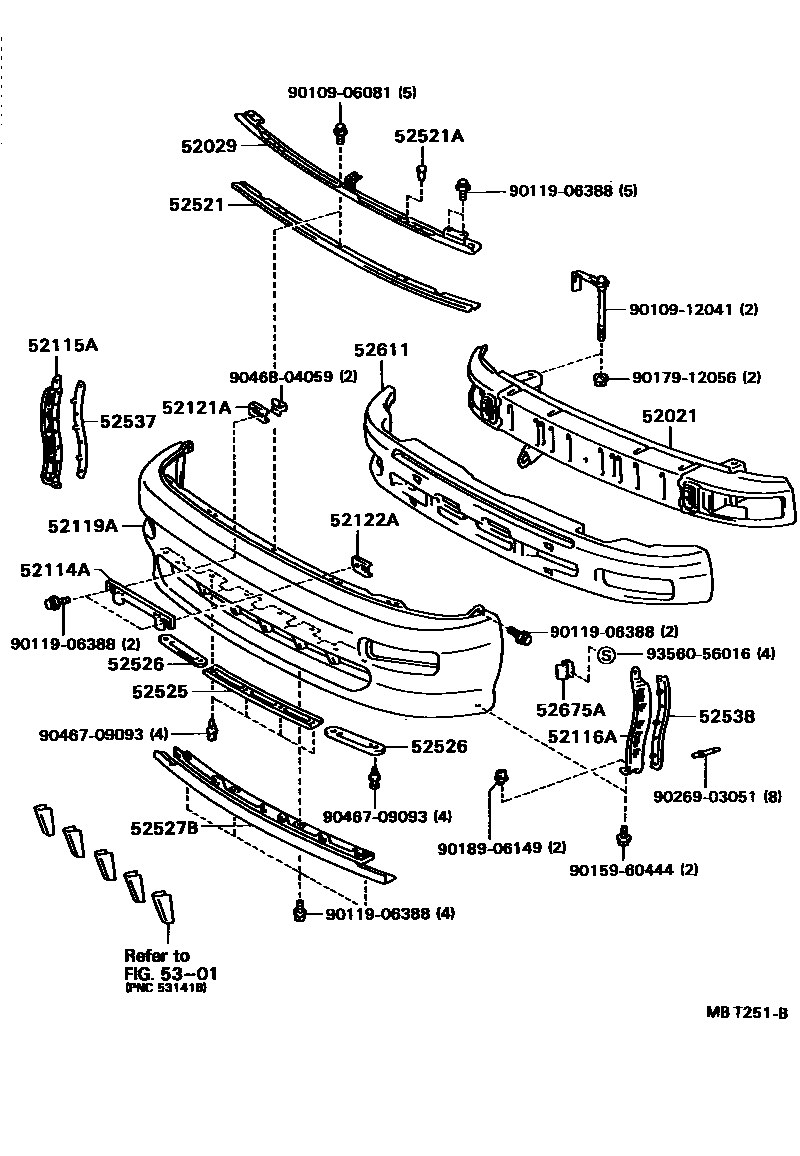

FRONT BUMPER & BUMPER STAY

0001 1 0002 1 0003 1 0005 1 0006 1

52021REINFORCEMENT SUB-ASSY, FRONT BUMPER

main52021-20180iAT180,ST18#198910-199101

main52021-20181iST185..TBO4W;AT180,ST182,184199101-199311

main52021-20210iST185199108-199202

52029REINFORCEMENT SUB-ASSY, FRONT BUMPER, UPPER

main52029-20010iST185..TBO4W;AT180,ST182,184198910-199311

main52029-20020iST185199108-199202

52114ABRACKET, FRONT BUMPER EXTENSION MOUNTING

main52114-20080iST185..TBO4W;AT180,ST182,184198910-199311

52115ASUPPORT, FRONT BUMPER SIDE, RH

main52115-20260iAT180,ST18#198910-199311

52116ASUPPORT, FRONT BUMPER SIDE, LH

main52116-20200iAT180,ST18#198910-199311

52119ACOVER, FRONT BUMPER

main52119-20913iAT180,ST184198910-199108

main52119-20916iST182,185198910-199108

main52119-20926iST185199108-199202

main52119-20935iAT180,ST184..NOB199108-199311

52121ABRACKET, FRONT LICENSE PLATE MOUNTING, RH

main52121-16030iAT180,ST18#198910-198912

main52121-20110iST185..TBO4W;AT180,ST182,184198912-199311

52122ABRACKET, FRONT LICENSE PLATE MOUNTING, LH

main52121-16030iAT180,ST18#198910-198912

main52121-20110iST185..TBO4W;AT180,ST182,184198912-199311

52521RETAINER, FRONT BUMPER, UPPER CENTER

main52521-20110iST185..TBO4W;AT180,ST182,184198910-199311

52521ACLIP(FOR FRONT BUMPER RETAINER)

main90467-09029×2iAT180,ST18#198910-199004

52525RETAINER, FRONT BUMPER, LOWER CENTER

main52525-20090iST185..TBO4W;AT180,ST182,184198910-199311

52526RETAINER, FRONT BUMPER, LOWER SIDE

main52526-20060×2iAT180,ST184198910-199108

main52526-20070×2iST182,185198910-199108

52527BRETAINER, FRONT BUMPER, LOWER NO.2

main52527-20040iAT180,ST184..NOB199108-199311

main52527-20050iST182,185198910-199108

52537RETAINER, FRONT BUMPER END, RH

main52537-20040iAT180,ST18#198910-199311

52538RETAINER, FRONT BUMPER END, LH

main52538-20040iAT180,ST18#198910-199311

52611ABSORBER, FRONT BUMPER ENERGY

main52611-20110iST185..TBO4W;AT180,ST182,184198910-199311

52675ASUPPORT, FRONT BUMPER SIDE, NO.1

main52675-20010×4iAT180,ST18#198910-199311

5301RADIATOR GRILLE

→ Go to FIG 53-01

9010906081

main90109-06081

9010912041

main90109-12041

9011906388

main90119-06388

9015960444

main90159-60444

9017912056

main90179-12056

9018906149

main90189-06149

9026903051

main90269-03051

9046709093

main90467-09093

9046804059

main90468-04059

9356056016

main93560-56016

28 parts on this diagram · 5 diagrams in section
