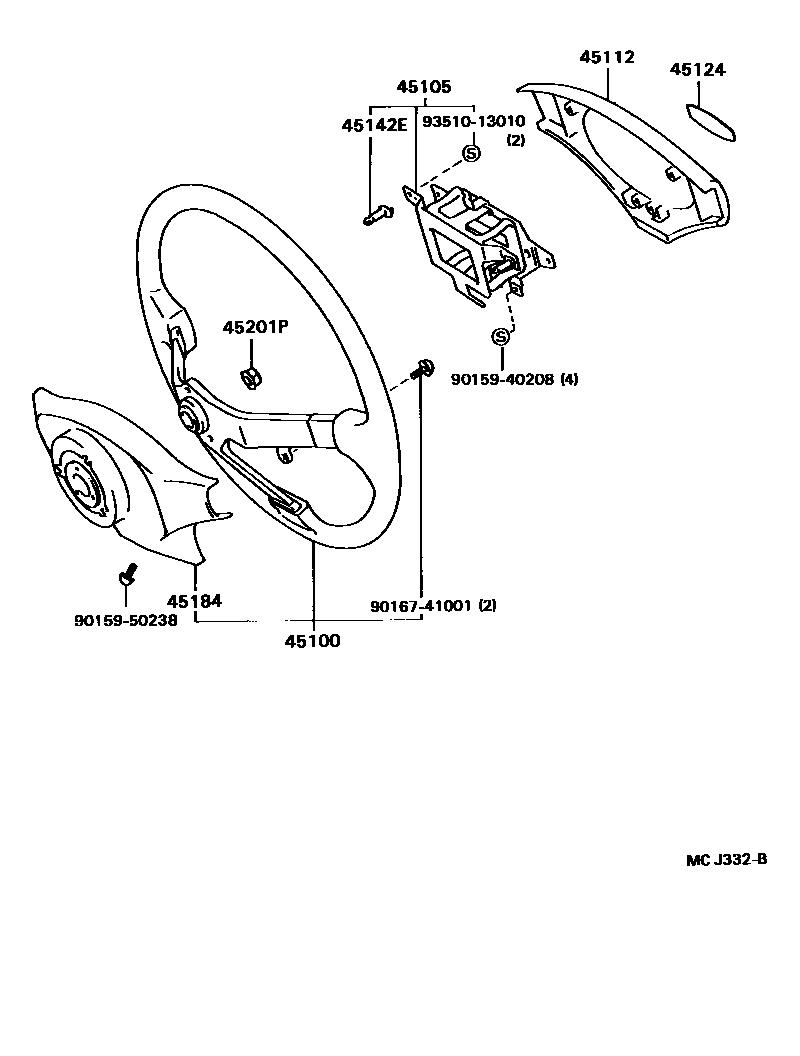

STEERING WHEEL

45100WHEEL ASSY, STEERING

main45100-20700-03iAT180,ST182,184..NOB198910-199108

SHADOW GRAY,TRIM1#

main45100-20700-04iAT180,ST182,184..NOB198910-199108

DARK BLUE,TRIM8#

main45100-20720-03iST184,185..WIB198910-199108

SHADOW GRAY,TRIM1#

main45100-20720-04iST184..WIB199008-199108

DARK BLUE,TRIM8#

main45100-20820-P0iAT180,ST182,184..NOB199108-199311

SHADOW GRAY,TRIM1#

main45100-20820-R8iAT180,ST182199208-199311

DARK BLUE,TRIM8#

main45100-2B050-P0iST184,185..WIB199108-199311

SHADOW GRAY,TRIM1#

main45100-2B050-R8iST184..WIB199108-199208

DARK BLUE,TRIM8#

45105PLATE SUB-ASSY, HORN BUTTON CONTACT, NO.1

main45105-20270iAT180,ST18#198910-199311

45112PAD, STEERING WHEEL

main45112-20420-03iAT180,ST182,184198910-199311

SHADOW GRAY,TRIM1#

main45112-20420-04iAT180,ST182,184198910-199208

DARK BLUE,TRIM8#

main45112-20450-03iST185198910-199311

SHADOW GRAY,TRIM1#

45124ORNAMENT, STEERING WHEEL MARK

main45124-20080-03iST185198910-199311

SHADOW GRAY,TRIM1#

45142EPIECE, HORN CONTACT

main45142-20060×2iAT180,ST18#198910-199311

45184COVER, STEERING WHEEL BOSS, LOWER

main45180-20110-03iAT180,ST18#198910-199311

SHADOW GRAY,TRIM1#

main45180-20110-04iAT180,ST182199208-199311

DARK BLUE,TRIM8#

45201PNUT, STEERING WHEEL SET

main90179-12071iAT180,ST18#199306-199311

main90179-12086iAT180,ST18#198910-199306

9015940208

main90159-40208

9015950238

main90159-50238

9016741001

main90167-41001

9351013010

main93510-13010

11 parts on this diagram · 1 diagram in section
