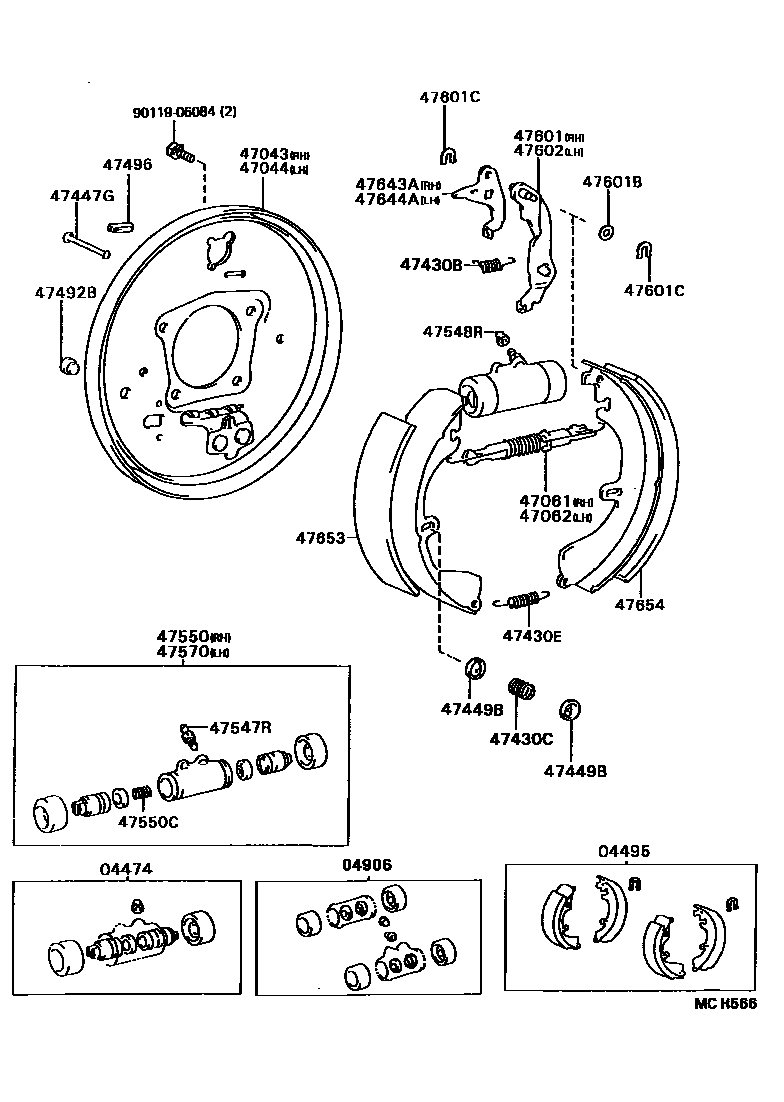

04474CYLINDER KIT, REAR WHEEL
main04474-10032×2iAT160,ST162..(GT,ST)..(ARL,GEN)198708-198908 04495SHOE KIT, REAR BRAKE
main04495-20100iAT160,ST162..(GT,ST)..(ARL,GEN)198708-198809 main04495-20101iAT160,ST162..(GT,ST)..(ARL,GEN)198809-198908 04906CUP KIT, REAR WHEEL CYLINDER
47043PLATE SUB-ASSY, BRAKE BACKING, REAR RH
main47043-32010iAT160,ST162..(GT,ST)..(ARL,GEN)198708-198908 47044PLATE SUB-ASSY, BRAKE BACKING, REAR LH
main47044-32010iAT160,ST162..(GT,ST)..(ARL,GEN)198708-198908 47061STRUT SET, PARKING BRAKE SHOE, RH
main47061-32010iAT160,ST162..(GT,ST)..(ARL,GEN)198708-198908 47062STRUT SET, PARKING BRAKE SHOE, LH
main47062-32010iAT160,ST162..(GT,ST)..(ARL,GEN)198708-198908 47430BSPRING, TENSION(FOR REAR BRAKE SHOE RETURN)
main90506-12036iAT160,ST162..(GT,ST)..(ARL,GEN)198708-198908 47430CSPRING(FOR REAR BRAKE SHOE HOLD DOWN)
main90501-18017×2iAT160,ST162..(GT,ST)..(ARL,GEN)198708-198908 47430ESPRING, TENSION(FOR REAR BRAKE SHOE RETURN)
main90506-18034iAT160,ST162..(GT,ST)..(ARL,GEN)198708-198908 47447GPIN, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)
main47447-30010×2iAT160,ST162..(GT,ST)..(ARL,GEN)198708-198908 47449BCUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)
main47449-30030×4iAT160,ST162..(GT,ST)..(ARL,GEN)198708-198908 47492BPLUG, SHOE INSPECTION(FOR REAR BRAKE)
main47492-32010iAT160,ST162..(GT,ST)..(ARL,GEN)198708-198908 47496PLUG, HOLE(FOR REAR BRAKE)
main47491-20011iAT160,ST162..(GT,ST)..(ARL,GEN)198708-198908 47547RPLUG, BLEEDER(FOR DRUM BRAKE, REAR)
main47547-20010iAT160,ST162..(GT,ST)..(ARL,GEN)198708-198908 47548RCAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR)
main31478-30010×2iAT160,ST162..(GT,ST)..(ARL,GEN)198708-198908 47550CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER)
main47550-32010iAT160,ST162..(GT,ST)..(ARL,GEN)198708-198908 47550CSPRING, COMPRESSION(FOR REAR WHEEL BRAKE CYLINDER)
main90501-07006iAT160,ST162..(GT,ST)..(ARL,GEN)198708-198908 47570CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER)
main47570-32010iAT160,ST162..(GT,ST)..(ARL,GEN)198708-198908 47601LEVER SUB-ASSY, PARKING BRAKE SHOE, RH(FOR REAR BRAKE)
main47601-32010iAT160,ST162..(GT,ST)..(ARL,GEN)198708-198908 47601BSHIM, REAR PARKING BRAKE SHOE LEVER
main90564-08150iAT160,ST162..(GT,ST)..(ARL,GEN)198708-198908 T=0.3
main90564-08151iAT160,ST162..(GT,ST)..(ARL,GEN)198708-198908 T=0.6
main90564-08152iAT160,ST162..(GT,ST)..(ARL,GEN)198708-198908 T=0.9
main90564-08172iAT160,ST162..(GT,ST)..(ARL,GEN)198708-198908 T=0.2
main90564-08173iAT160,ST162..(GT,ST)..(ARL,GEN)198708-198908 T=0.4
main90564-08174iAT160,ST162..(GT,ST)..(ARL,GEN)198708-198908 T=0.5
47601CWASHER, C(FOR REAR BRAKE)
main90213-06013×2iAT160,ST162..(GT,ST)..(ARL,GEN)198708-198908 T=1.2
47602LEVER SUB-ASSY, PARKING BRAKE SHOE, LH (FOR REAR BRAKE)
main47602-32010iAT160,ST162..(GT,ST)..(ARL,GEN)198708-198908 47643ALEVER, REAR BRAKE AUTOMATIC ADJUST, RH
main47643-32010iAT160,ST162..(GT,ST)..(ARL,GEN)198708-198908 47644ALEVER, REAR BRAKE AUTOMATIC ADJUST, LH
main47644-32010iAT160,ST162..(GT,ST)..(ARL,GEN)198708-198908 47653LINING, REAR BRAKE SHOE(FOR FRONT OR UPPER)
main47651-12020×2iAT160,ST162..(GT,ST)..(ARL,GEN)198708-198908 47654LINING, REAR BRAKE SHOE(FOR REAR OR LOWER)
main47651-12020×2iAT160,ST162..(GT,ST)..(ARL,GEN)198708-198908
