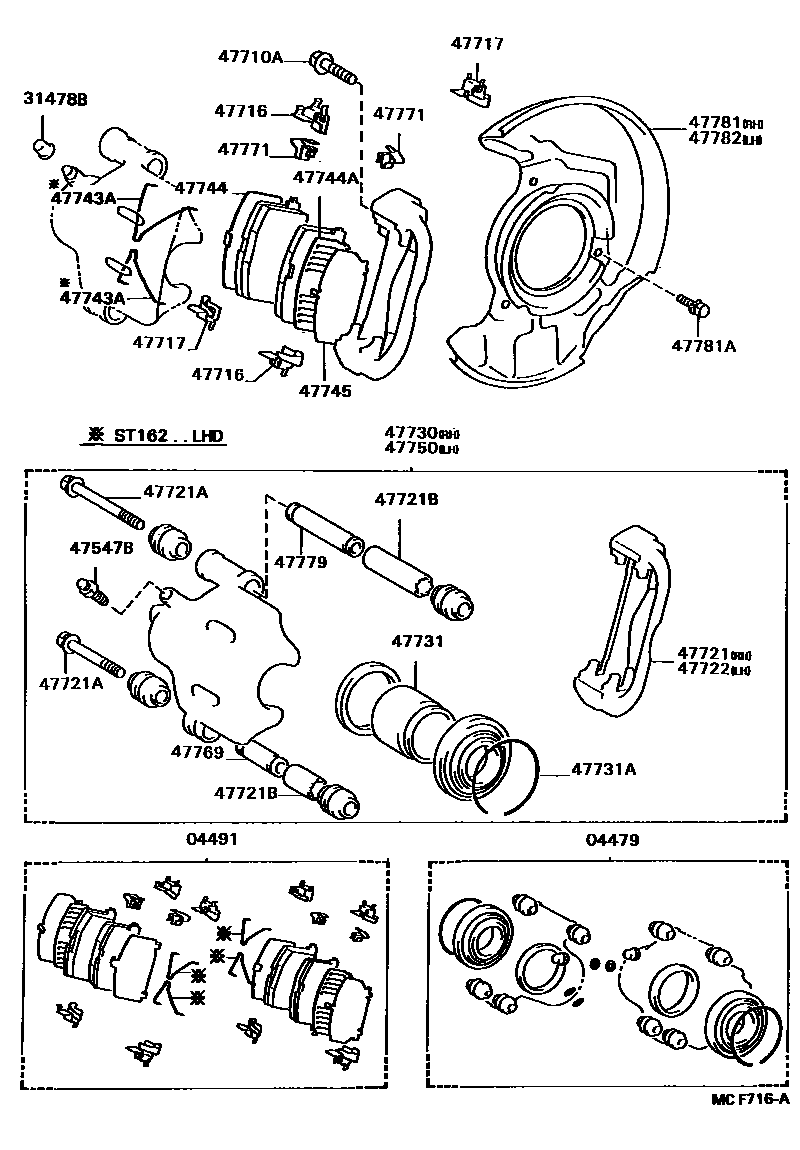

FRONT DISC BRAKE CALIPER & DUST COVER

0001 1 0002 1

04479CYLINDER KIT, DISC BRAKE, FRONT

main04479-20070iAT160,ST162198708-198908

04491PAD KIT, DISC BRAKE, FRONT

main04491-20191iAT160..CBR198708-198812

main04491-20192iAT160..CBR198812-198908

main04491-20220iAT160,ST162..(ARL,GEN)..TWC198708-198812

main04491-20221iAT160,ST162..(GT,ST)..(ARL,GEN)..TWC198812-198908

main04491-20400iST162..ME198708-198812

main04491-20401iST162..GT,SX198812-198908

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-30010×2iAT160,ST162198708-198908

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-20010×2iAT160,ST162198708-198908

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90119-12040×4iAT160,ST162198708-198908

*12-1.25PX25.8-19.5

47716PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)

main47716-20111×4iAT160..CBR; AT160..TWC; ST162198812-198908

47717PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE)

main47717-20061×4iAT160..CBR; AT160..TWC; ST162198812-198908

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-20090iAT160..CBR198708-198908

main47721-20100iAT160,ST162..(GT,ST)..(ARL,GEN)..TWC198708-198908

main47721-20110iST162..GT,SX198708-198908

47721ABOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING)

main90119-09007×2iAT160,ST162198708-198908

*9-1.25PX73-25

main90119-09008×2iAT160,ST162198708-198908

*9-1.25PX93-25

47721BCOLLAR(FOR FRONT DISC BRAKE CYLINDER MOUNTING)

main90387-15004×2iAT160,ST162198708-198908

main90387-15005×2iAT160,ST162198708-198908

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47721-20090iAT160..CBR198708-198908

main47721-20100iAT160,ST162..(GT,ST)..(ARL,GEN)..TWC198708-198908

main47721-20110iST162..GT,SX198708-198908

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-20190iAT160..CBR198708-198908

main47730-20201iAT160,ST162..(GT,ST)..(ARL,GEN)..TWC198708-198908

main47730-20211iST162..GT,SX198708-198908

47731PISTON, FRONT DISC BRAKE

main47731-20090×2iAT160,ST162198708-198908

47731ARING, SET(FOR FRONT DISC BRAKE PISTON)

main90522-64003×2iAT160,ST162198708-198908

47743ASPRING, ANTI-SQUEAL(FOR FRONT DISC BRAKE)

main47743-32020×4iST162..ME198708-198812

47744SHIM, ANTI-SQUEAL, NO.1(FOR FRONT DISC BRAKE)

main47744-20050×2iAT160,ST162198708-198908

47744ASHIM, ANTI-SQUEAL, NO.3(FOR FRONT DISC BRAKE)

main47742-17010×2iST162..ME198708-198812

main47742-20010×2iAT160,ST162..(ARL,GEN)..TWC198708-198812

main47742-20030×2iAT160,ST162..(GT,ST)..(ARL,GEN)..TWC198812-198908

main47742-32040×2iST162..GT,SX198812-198908

47745SHIM, ANTI-SQUEAL, NO.2(FOR FRONT DISC BRAKE)

main47744-20050×2iAT160..CBR198708-198908

main47745-17020×2iST162..ME198708-198812

main47745-32010×2iAT160,ST162..(ARL,GEN)..TWC198708-198812

main47745-32040×2iAT160,ST162..TWC198812-198908

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-20180iAT160..CBR198708-198908

main47750-20191iAT160,ST162..(GT,ST)..(ARL,GEN)..TWC198708-198908

main47750-20201iST162..GT,SX198708-198908

47769BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)

main47769-20010×2iAT160,ST162198708-198908

47771PLATE, PAD WEAR INDICATOR, NO.1

main47771-20030×4iAT160,ST162198708-198812

47779BUSH, CYLINDER SLIDE, NO.2(FOR FRONT DISC BRAKE)

main47779-20010×2iAT160,ST162198708-198908

47781COVER, DISC BRAKE DUST, FRONT RH

main47781-20140iAT160,ST162..(GT,ST)..(ARL,GEN)198708-198908

main47781-20150iST162..GT,SX198708-198908

47781ABOLT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)

main90119-06227×6iAT160,ST162198708-198908

47782COVER, DISC BRAKE DUST, FRONT LH

main47782-20140iAT160,ST162..(GT,ST)..(ARL,GEN)198708-198908

main47782-20150iST162..GT,SX198708-198908

25 parts on this diagram · 2 diagrams in section
