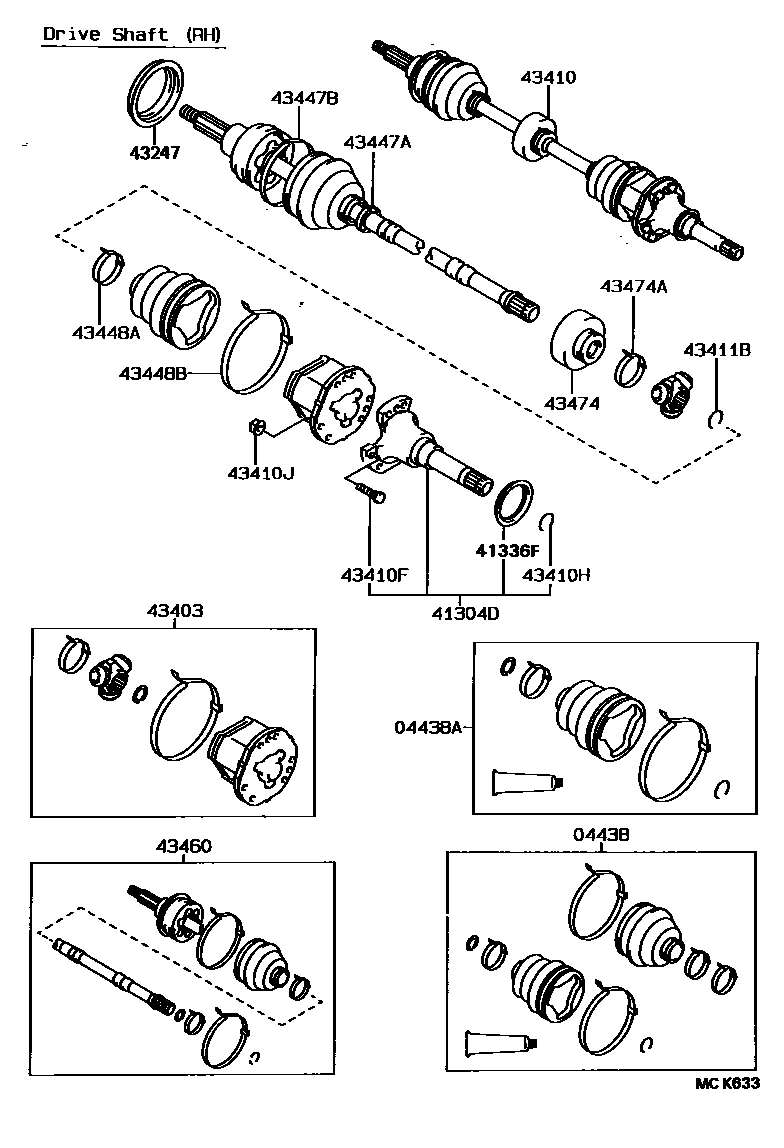

FRONT DRIVE SHAFT

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1

04438BOOT KIT, FRONT DRIVE SHAFT

main04438-12031×2iST162..ST198708-198908

main04438-12080×2iAT160..CBR198801-198908

main04438-12120×2iAT160..TWC198801-198908

main04438-17012×2iAT160..CBR198708-198801

main04438-17021×2iAT160..TWC198708-198801

main04438-20010×2iST162..GT,SX198708-198803

main04438-32050×2iST162..GT,SX198803-198908

04438ABOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT

main04438-12011×2iAT160..CBR198708-198801

main04438-12050×2iST162..ST198811-198908

main04438-12070×2iAT160198801-198908

main04438-12150×2iST162..4FC..ST198708-198811

main04438-17031×2iAT160..TWC198708-198801

main04438-32040×2iST162..GT,SX198708-198908

41304DSHAFT SUB-ASSY, DIFFERENTIAL SIDE GEAR, RH

main41304-12010iAT160..CBR198708-198801

main41304-17010iAT160..TWC198708-198801

41336FCOVER, DUST(FOR FRONT AXLE INBOARD JOINT SET)

main41336-12010iAT160198708-198908

main41336-20011iST162198708-198908

RH

main41336-32020iST162198708-198908

LH

43247DEFLECTOR, FRONT WHEEL BEARING DUST, NO.2

main43247-32011×2iAT160,ST162198708-198908

43403JOINT SET, FRONT AXLE INBOARD, RH

main43403-19036iAT160..CBR198708-198801

main43403-19055iAT160198801-198805

main43403-19085iAT160198805-198908

main43403-39016iAT160..TWC198708-198801

43410SHAFT ASSY, FRONT DRIVE, RH

main43410-20040iST162..4FC..ST198708-198811

main43410-20050iST162..5F..ST198708-198811

main43410-20061iST162..4FC..(GT,SX)198708-198908

main43410-20071iST162..5F..(GT,SX)198708-198908

main43410-20090iAT160..CBR198708-198801

main43410-20100iAT160..TWC198708-198801

main43410-20110iAT160..TWC198801-198908

main43410-20140iAT160..CBR198801-198905

main43410-20141iAT160..CBR198905-198908

main43410-20180iST162..ST198811-198908

43410FBOLT, SERRATION (FOR FRONT DRIVE SHAFT)

main90114-08006×6iST162..ST198801-198908

43410HRING, HOLE SNAP (FOR FRONT DRIVE SHAFT)

main90521-26002iAT160198708-198801

main90521-26004iAT160198801-198908

main90521-27005iST162198708-198908

43410JNUT (FOR FRONT DRIVE SHAFT)

main90179-08053×6iAT160,ST162..(GT,ST)..(ARL,GEN)198708-198801

43411BRING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER)

main90520-22005iAT160,ST162..(GT,ST)..(ARL,GEN)198708-198908

main90520-25034iST162..GT,SX198708-198908

43447ACLAMP, NO.1 (FOR FRONT AXLE OUTBOARD JOINT BOOT SETTING)

main42345-14010iST162..ST198801-198908

main90949-01078iAT160..CBR198708-198801

main90949-01108iST162..GT,SX198708-198908

43447BCLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT SETTING)

main90949-01076iAT160,ST162..(GT,ST)..(ARL,GEN)..TWC198708-198908

main90949-01080iAT160..CBR198708-198908

main90949-01107iST162..GT,SX198708-198908

43448ACLAMP, NO.1 (FOR FRONT AXLE INBOARD JOINT BOOT SETTING)

main42345-14010iAT160,ST162..(GT,ST)..(ARL,GEN)..TWC198708-198908

main90949-01078iAT160..CBR198708-198908

main90949-01108iST162..GT,SX198708-198908

43448BCLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT SETTING)

main42345-14020iST162..ST198801-198908

main42346-22010iST162..GT,SX198708-198908

main90949-01076iAT160198801-198908

main90949-01079iAT160..CBR198708-198801

43460SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH

main43460-29045iAT160..TWC198708-198801

main43460-29085iAT160..CBR198801-198905

main43460-29086iAT160..CBR198905-198908

main43460-29115iAT160..TWC198801-198908

main43470-29055iST162..ST198811-198908

main43470-29065iST162..5F..ST198708-198811

main43470-29285iST162..4FC..(GT,SX)198708-198908

main43470-29295iST162..5F..(GT,SX)198708-198908

43474DAMPER, DRIVE SHAFT

main43474-12020iAT160198708-198908

main43474-20030iST162..ST198811-198908

43474ACLAMP (FOR DRIVE SHAFT DAMPER SETTING)

main42345-14010iAT160198708-198908

18 parts on this diagram · 8 diagrams in section
