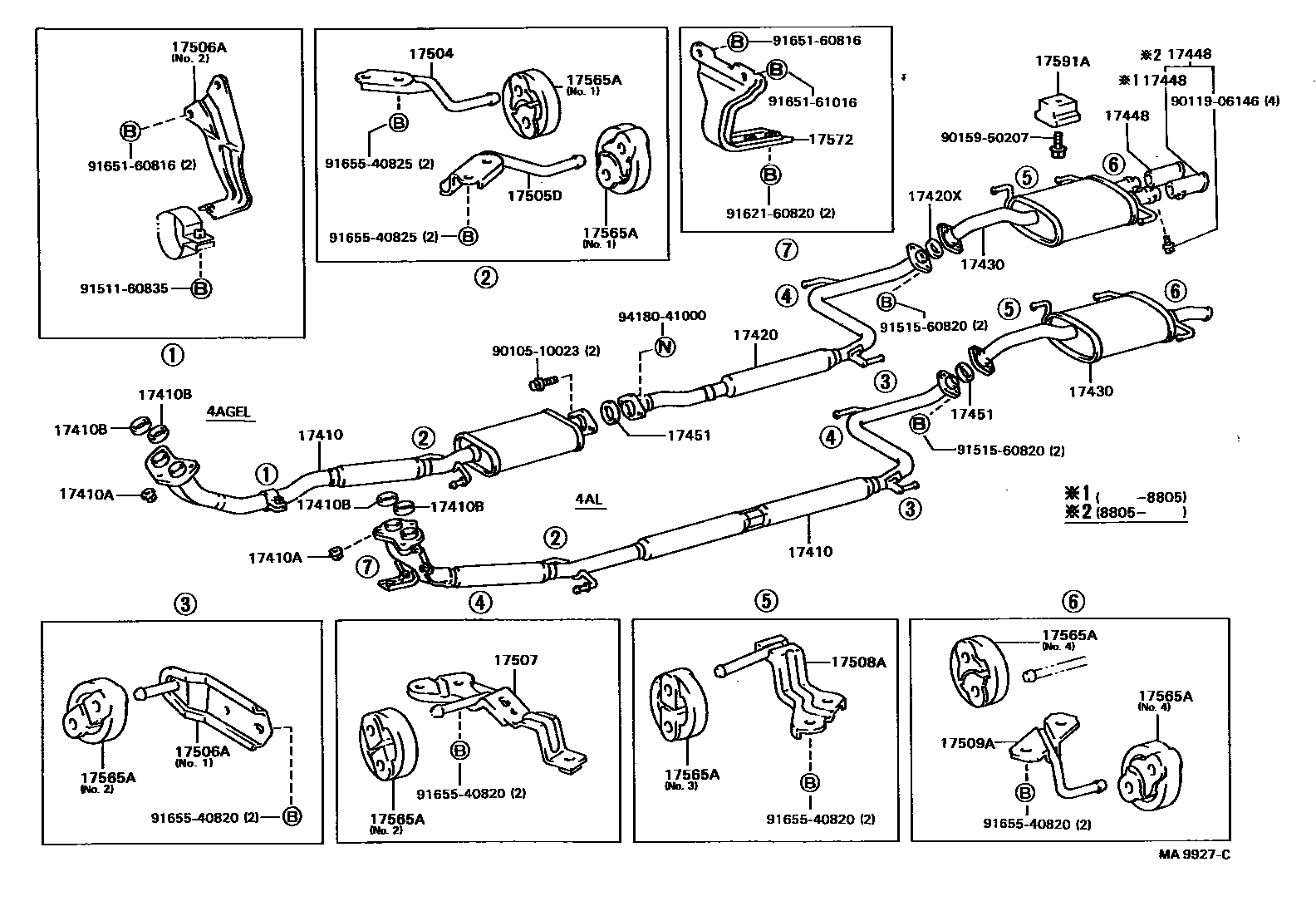

EXHAUST PIPE
17410PIPE ASSY, EXHAUST, FRONT
17410ANUT, EXHAUST PIPE SET STUD BOLT
17410BGASKET, EXHAUST PIPE
17420PIPE ASSY, EXHAUST, CENTER
17420XGASKET, EXHAUST PIPE, CENTER
17430PIPE ASSY, EXHAUST, TAIL
17448BAFFLE, TAILPIPE
17451GASKET, EXHAUST PIPE
FR
RR
17504BRACKET SUB-ASSY, CATALYTIC CONVERTER
17505DBRACKET SUB-ASSY, CONVERTER SUPPORT, LH
17506ABRACKET SUB-ASSY, EXHAUST PIPE NO.1 SUPPORT
NO.2
NO.1
NO.2
17507BRACKET SUB-ASSY, EXHAUST PIPE NO.2 SUPPORT
17508ABRACKET SUB-ASSY, EXHAUST PIPE NO.3 SUPPORT
17509ABRACKET SUB-ASSY, EXHAUST PIPE NO.4 SUPPORT
17565ASUPPORT, EXHAUST PIPE, NO.4
NO.4
NO.3
NO.3; NO.4
NO.1,2; NO.2
NO.1
17572BRACKET, EXHAUST PIPE NO.1 SUPPORT
W(POWER STEERING)
17591ASTOPPER, EXHAUST PIPE SUPPORT
9010510023
main90105-10023
9011906146
main90119-06146
9015950207
main90159-50207
9151160835
main91511-60835
9151560820
main91515-60820
9162160820
main91621-60820
9165160816
main91651-60816
9165161016
main91651-61016
9165540820
main91655-40820
9165540825
main91655-40825
9418041000
main94180-41000
28 parts on this diagram · 3 diagrams in section
