ENGINE OVERHAUL GASKET KIT

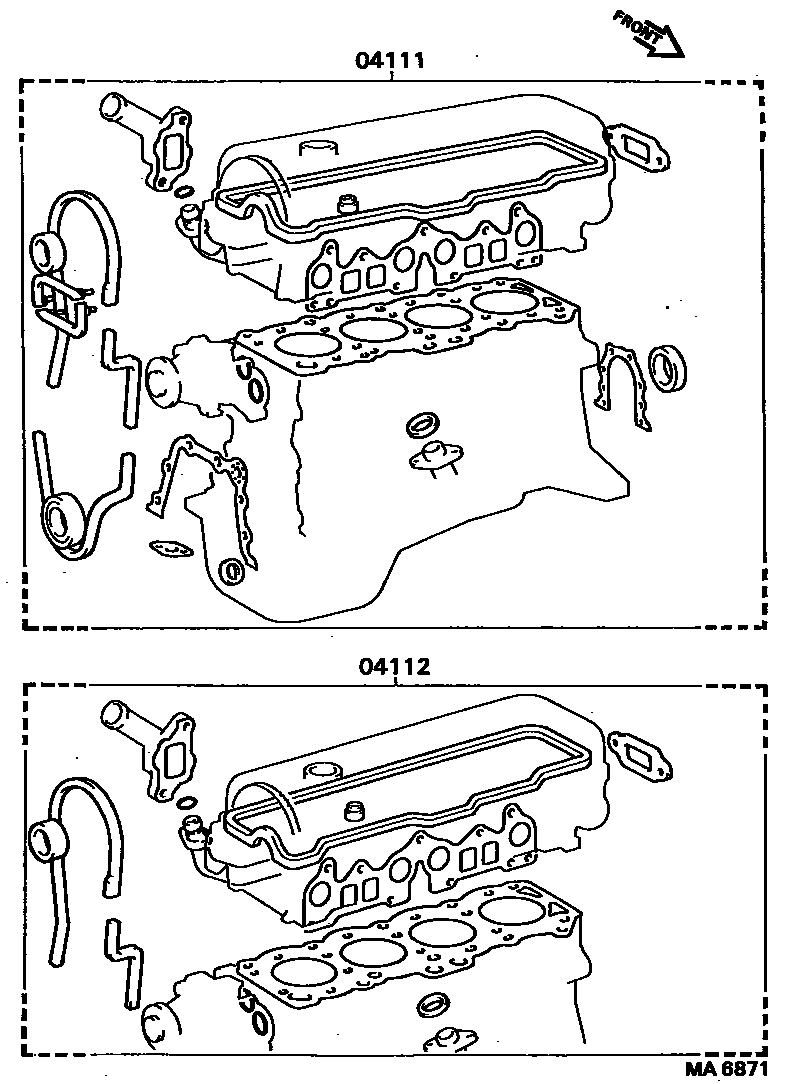

Parts diagram
04111GASKET KIT, ENGINE OVERHAUL
main04111-16090i198708-198908
sub04111-16091
main04111-74033i198708-198910
sub04111-74034
main04111-74042i198708-198910
sub04111-74043
main04111-74051i198708-198910
sub04111-74052
04112GASKET KIT, ENGINE VALVE GRIND
main04112-16090i198708-198908
sub04112-16091
main04112-74032i198708-198910
sub04112-74033
main04112-74041i198708-198910
sub04112-74042
main04112-74050i198708-198908
sub04112-74051

2 parts on this diagram · 4 diagrams in section
