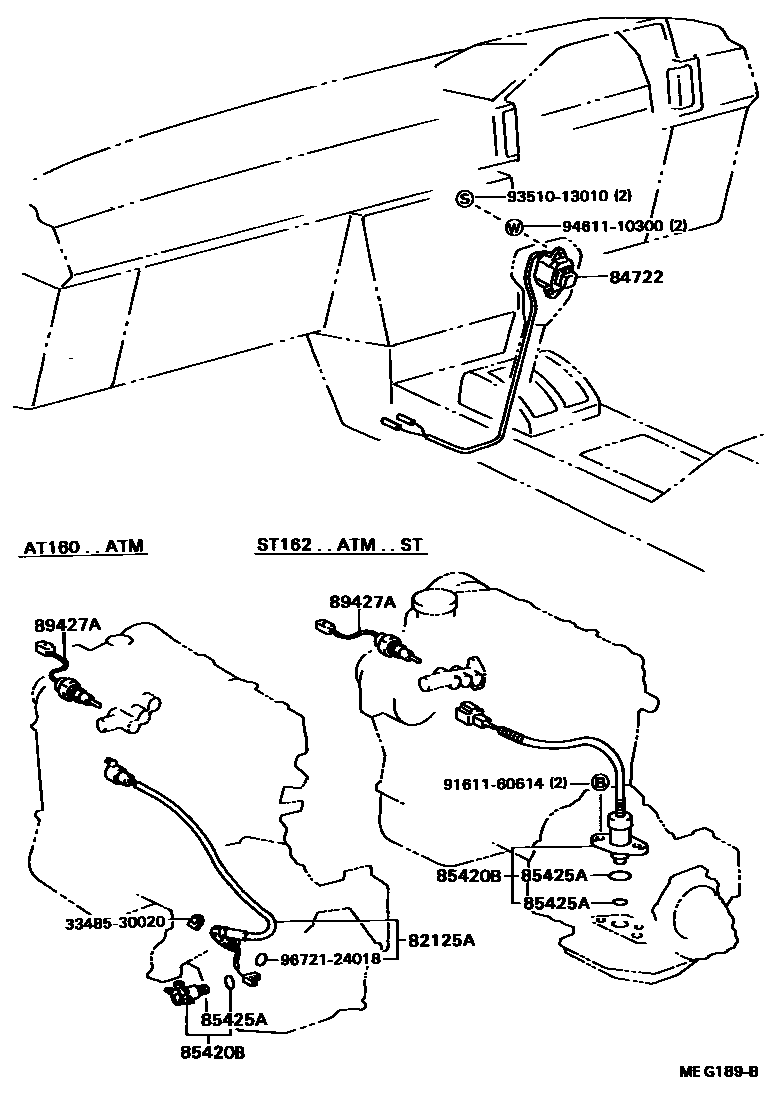

OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION

82125AWIRE, TRANSMISSION

main82125-12310iAT160..4FC198508-198708

84722SWITCH, TRANSMISSION CONTROL

main84722-20040-03iAT160,ST162..4FC..ST198508-198708

GRAY,GRAY

main84722-20040-05iAT160,ST162..4FC..ST198508-198708

BEIGE,BEIGE

main84722-20040-24iAT160,ST162..4FC..ST198508-198708

BLUE,BLUE

85420BSOLENOID ASSY, TRANSMISSION

main85420-10010iAT160..4FC198605-198708

main85420-20060iAT160..4FC198508-198605

main85420-32081iST162..4FC..ST198608-198708

85425ARING, O (FOR OVERDRIVE SOLENOID)

main90301-06004iAT160..4FC198508-198708

main90301-06005iST162..4FC..ST198608-198708

ID=6.6

main96721-19017iST162..4FC..ST198608-198708

ID=17

89427ASWITCH, TEMPERATURE

main89427-12070iST162..4FC..ST198608-198708

main89427-32010iAT160..4FC198508-198708

3348530020PLATE, SPEEDOMETER SLEEVE LOCK (MTM)

main33485-30020

9161160614

main91611-60614

9351013010

main93510-13010

9461110300

main94611-10300

9672124018

main96721-24018

10 parts on this diagram · 1 diagram in section
