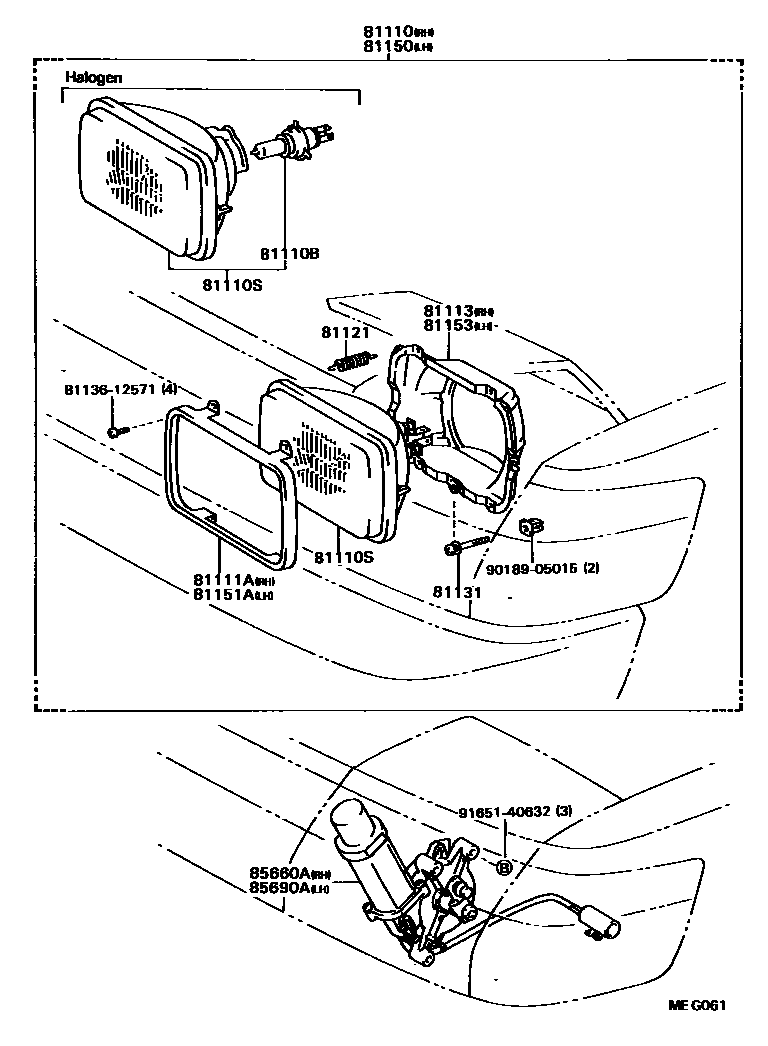

HEADLAMP
81110HEADLAMP ASSY, RH
HALOGEN
HALOGEN
HALOGEN
IKI; IKI, LH TRAFFIC SPEC(*46)
HALOGEN,YELLOW
KOITO
IKI
KOITO; KOITO,LH TRAFFIC SPEC(*46)
HALOGEN
HALOGEN
HALOGEN; HALOGEN,LH TRAFFIC SPEC(*46)
81110BBULB(FOR HEADLAMP, NO.1)
12V 60/55W,*HAL *WH,HALOGEN,LH TRAFFIC SPEC(*46)
12V 60/55W,*HAL *YE,12V 60/55W,HALOGEN,YELLOW
81110SSEALED BEAM UNIT, NO.1
12V 65/55W,*WB,IKI,12V 65/55W
12V 65/55W,*WB,KOITO,12V 65/55W
12V 65/35W,*HAL,*WB,12V 65/35W,HALOGEN
12V 60/55W,*HWS,HALOGEN,LH TRAFFIC SPEC(*46)
12V 60/55W,*HWS,12V 60/55W,HALOGEN
12V 60/55W,*HYS,12V 60/55W,HALOGEN,YELLOW
12V 65/55W,*WB,KOITO,12V 65/55W; 12V 65/55W,*WB,KOITO,LH TRAFFIC SPEC(*46)
12V 65/55W,*WB,IKI,12V 65/55W; 12V 65/55W,*WB,IKI,LH TRAFFIC SPEC(*46)
81111ARING, SEALED BEAM RETAINING, NO.1 RH
IKI
KOITO
81113RING, SEALED BEAM MOUNTING, NO.1 RH
KOITO
IKI
81121SPRING, HEADLAMP TENSION
IKI
KOITO
81131SCREW, HEADLAMP ADJUSTING
IKI
KOITO
81150HEADLAMP ASSY, LH
HALOGEN
HALOGEN
HALOGEN,LH TRAFFIC SPEC(*46)
IKI; IKI,LH TRAFFIC SPEC(*46)
HALOGEN,YELLOW
KOITO
IKI
KOITO; KOITO,LH TRAFFIC SPEC(*46)
HALOGEN
HALOGEN
HALOGEN; HALOGEN,LH TRAFFIC SPEC(*46)
81151ARING, SEALED BEAM RETAINING, NO.1 LH
IKI
KOITO
81153RING, SEALED BEAM MOUNTING, NO.1 LH
KOITO
IKI
85660AMOTOR ASSY, LIGHT RETRACTOR, RH
85690AMOTOR ASSY, LIGHT RETRACTOR, LH
8113612571PROTECTOR, HEADLAMP, NO.1 RH
main81136-12571
9018905015
main90189-05015
9165140632
main91651-40632
15 parts on this diagram · 1 diagram in section
