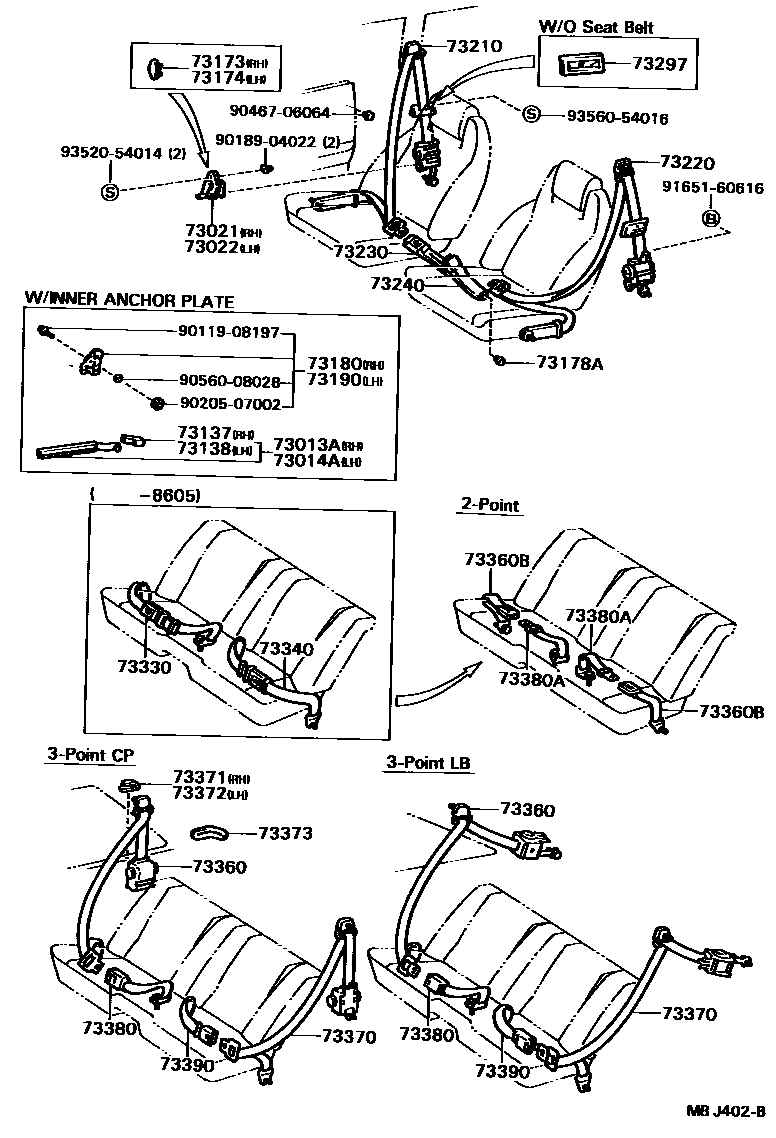

SEAT BELT & CHILD RESTRAINT SEAT
73013APLATE SUB-ASSY, FRONT SEAT BELT INNER ANCHOR, RH
73014APLATE SUB-ASSY, FRONT SEAT BELT INNER ANCHOR, LH
73021LEVER SUB-ASSY, SEAT BELT COMFORT, RH
sub73021-20011
73022LEVER SUB-ASSY, SEAT BELT COMFORT, LH
sub73022-20011
73137CAP, FRONT SEAT BELT INNER ANCHOR, RH
73138CAP, FRONT SEAT BELT INNER ANCHOR, LH
73173COVER, FRONT SEAT BELT HOLE, RH
73174COVER, FRONT SEAT BELT HOLE, LH
73178ACAP, SEAT BELT ANCHOR COVER
73180BRACKET ASSY, SEAT BELT INNER ANCHOR, RH
73190BRACKET ASSY, SEAT BELT INNER ANCHOR, LH
73210BELT ASSY, FRONT SEAT OUTER, RH
73220BELT ASSY, FRONT SEAT OUTER, LH
GRAY,SHADOW GRAY
BLUE,DEEP BLUE
BROWN,BROWN
73230BELT ASSY, FRONT SEAT INNER, RH
73240BELT ASSY, FRONT SEAT INNER, LH
73297COVER, QUARTER TRIM OR CENTER PILLAR BELT HOLE
RH,GRAY,SHADOW GRAY
RH,BLUE,DEEP BLUE
RH,BROWN,BROWN
LH,GRAY,SHADOW GRAY
LH,BLUE,DEEP BLUE
LH,BROWN,BROWN
73330BELT ASSY, REAR SEAT LAP TYPE, RH
GRAY,SHADOW GRAY
BLUE,DEEP BLUE
BROWN,BROWN
73340BELT ASSY, REAR SEAT LAP TYPE, LH
GRAY,SHADOW GRAY
BLUE,DEEP BLUE
BROWN,BROWN
73360BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER RH
GRAY,SHADOW GRAY
BLUE,DEEP BLUE
BROWN,BROWN
73360BBELT ASSY, REAR SEAT, OUTER
GRAY,SHADOW GRAY
BLUE,DEEP BLUE
BROWN,BROWN
73370BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER LH
GRAY,SHADOW GRAY
BLUE,DEEP BLUE
BROWN,BROWN
73371HANGER, REAR SEAT SHOULDER BELT, RH
73372HANGER, REAR SEAT SHOULDER BELT, LH
73373COVER, REAR SEAT SHOULDER BELT
73380BELT ASSY, REAR SEAT 3 POINT TYPE, INNER, RH
GRAY,SHADOW GRAY
BLUE,DEEP BLUE
BROWN,BROWN
73380ABELT ASSY, REAR SEAT, INNER
GRAY,SHADOW GRAY
BLUE,DEEP BLUE
BROWN,BROWN
73390BELT ASSY, REAR SEAT 3 POINT TYPE, INNER, LH
GRAY,SHADOW GRAY
BLUE,DEEP BLUE
BROWN,BROWN
9011908197
main90119-08197
9018904022
main90189-04022
9020507002
main90205-07002
9046706064
main90467-06064
9056008028
main90560-08028
9165160616
main91651-60616
9352054014
main93520-54014
9356054016
main93560-54016
35 parts on this diagram · 2 diagrams in section
