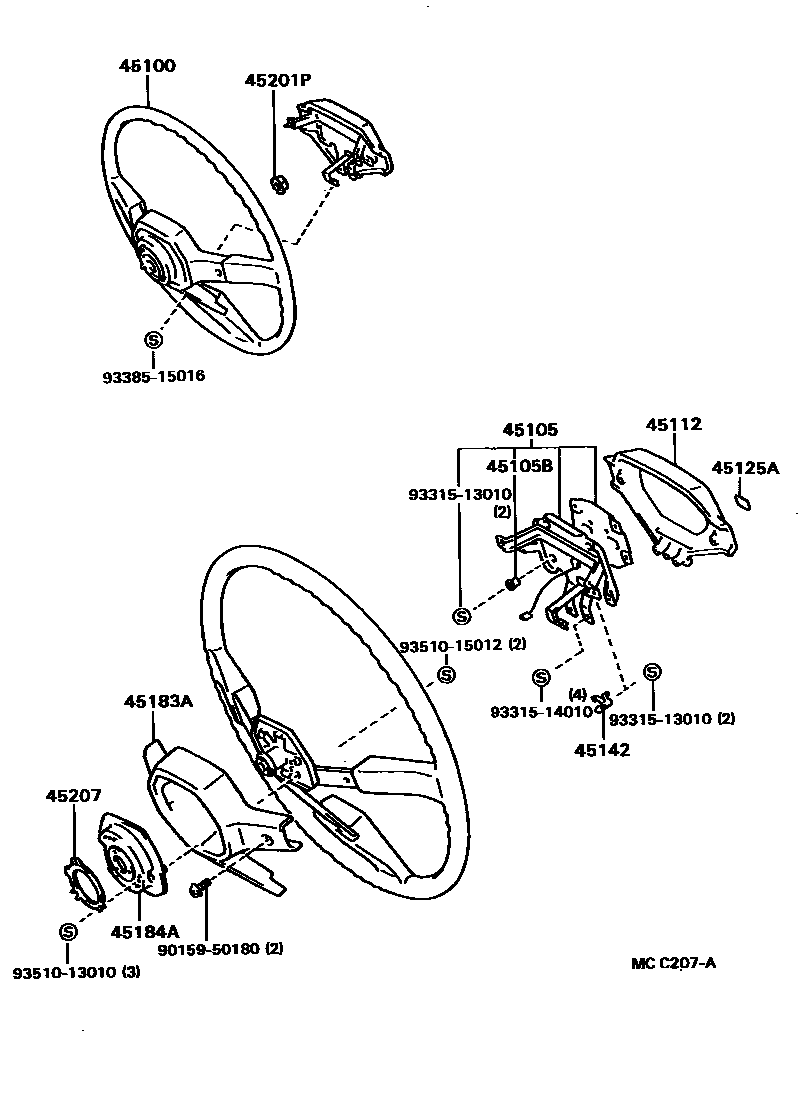

STEERING WHEEL

0001 1 0002 1

45100WHEEL ASSY, STEERING

main45100-20330-03iAT160,ST162..ST198608-198708

SHADOW GRAY,SHADOW GRAY

main45100-20330-04iAT160,ST162,182..ST,SX198508-198608

DEEP BLUE,DEEP BLUE

main45100-20330-06iAT160,ST162,182..ST,SX198508-198608

BROWN,BROWN

main45100-20340-03iST162,182..ARL198508-198608

W/CRUISE CONTROL,SHADOW GRAY,SHADOW GRAY

main45100-20340-04iST162,182..ARL198508-198608

W/CRUISE CONTROL,DEEP BLUE,DEEP BLUE

main45100-20340-06iST162,182..ARL198508-198608

W/CRUISE CONTROL,BROWN,BROWN

main45100-20350-03iAT160,ST162..GT198508-198608

SHADOW GRAY,SHADOW GRAY

main45100-20350-04iAT160,ST162,182..GT,SX198608-198708

DEEP BLUE,DEEP BLUE

main45100-20350-06iAT160,ST162..GT198508-198608

BROWN,BROWN

main45100-20360-03iST162..GT198508-198608

W/CRUISE CONTROL,SHADOW GRAY,SHADOW GRAY

main45100-20360-04iST162,182..GT,SX198608-198708

W/CRUISE CONTROL,DEEP BLUE,DEEP BLUE

main45100-20360-06iST162..GT198508-198608

W/CRUISE CONTROL,BROWN,BROWN

45105PLATE SUB-ASSY, HORN BUTTON CONTACT, NO.1

main45105-20060iAT160,ST162,182198508-198708

main45105-20080iST162,182198508-198608

W/CRUISE CONTROL

45105BSPACER(FOR HORN BUTTON CONTACT PLATE)

main90561-02001×2iAT160,ST162,182198508-198708

45112PAD, STEERING WHEEL

main45112-20190-03iAT160,ST162..ST198608-198708

SHADOW GRAY,SHADOW GRAY

main45112-20190-04iAT160,ST162,182..ST,SX198508-198608

DEEP BLUE,DEEP BLUE

main45112-20190-06iAT160,ST162,182..ST,SX198508-198608

BROWN,BROWN

main45112-20220-03iAT160,ST162,182..GT,SX198608-198708

SHADOW GRAY,SHADOW GRAY

main45112-20220-04iAT160,ST162..GT198508-198608

DEEP BLUE,DEEP BLUE

main45112-20220-06iAT160,ST162..GT198508-198608

BROWN,BROWN

45125AMARK, HORN

main45148-20020-03iAT160,ST162,182198508-198708

SHADOW GRAY,GRAY

main45148-20020-04iAT160,ST162,182198508-198708

DEEP BLUE,BLUE

main45148-20020-06iAT160,ST162,182198508-198708

BROWN,BROWN

45142SEAT, HORN BUTTON CONTACT, NO.1

main45142-20060×2iAT160,ST162,182198508-198708

45183ACOVER, STEERING WHEEL BOSS, LOWER NO.1

main45183-20020-03iAT160,ST162,182198508-198708

SHADOW GRAY,SHADOW GRAY

main45183-20020-04iAT160,ST162,182198508-198708

DEEP BLUE,DEEP BLUE

main45183-20020-06iAT160,ST162,182198508-198708

BROWN,BROWN

main45183-20030-03iST162,182..GT,SX198508-198708

W/CRUISE CONTROL,SHADOW GRAY,SHADOW GRAY

main45183-20030-04iST162,182..GT,SX198508-198708

W/CRUISE CONTROL,DEEP BLUE,DEEP BLUE

main45183-20030-06iST162,182..GT,SX198508-198708

W/CRUISE CONTROL,BROWN,BROWN

45184ACOVER, STEERING WHEEL BOSS, LOWER NO.2

main45184-20080iAT160,ST162,182198508-198708

main45184-20120iST162,182..GT,SX198508-198708

W/CRUISE CONTROL

45201PNUT, STEERING WHEEL SET

main90179-12086iAT160,ST162,182198508-198708

45207RING, HORN CONTACT

main45176-20060iAT160,ST162,182198508-198708

9015950180

main90159-50180

9331513010

main93315-13010

9331514010

main93315-14010

9338515016

main93385-15016

9351013010

main93510-13010

9351015012

main93510-15012

16 parts on this diagram · 2 diagrams in section
