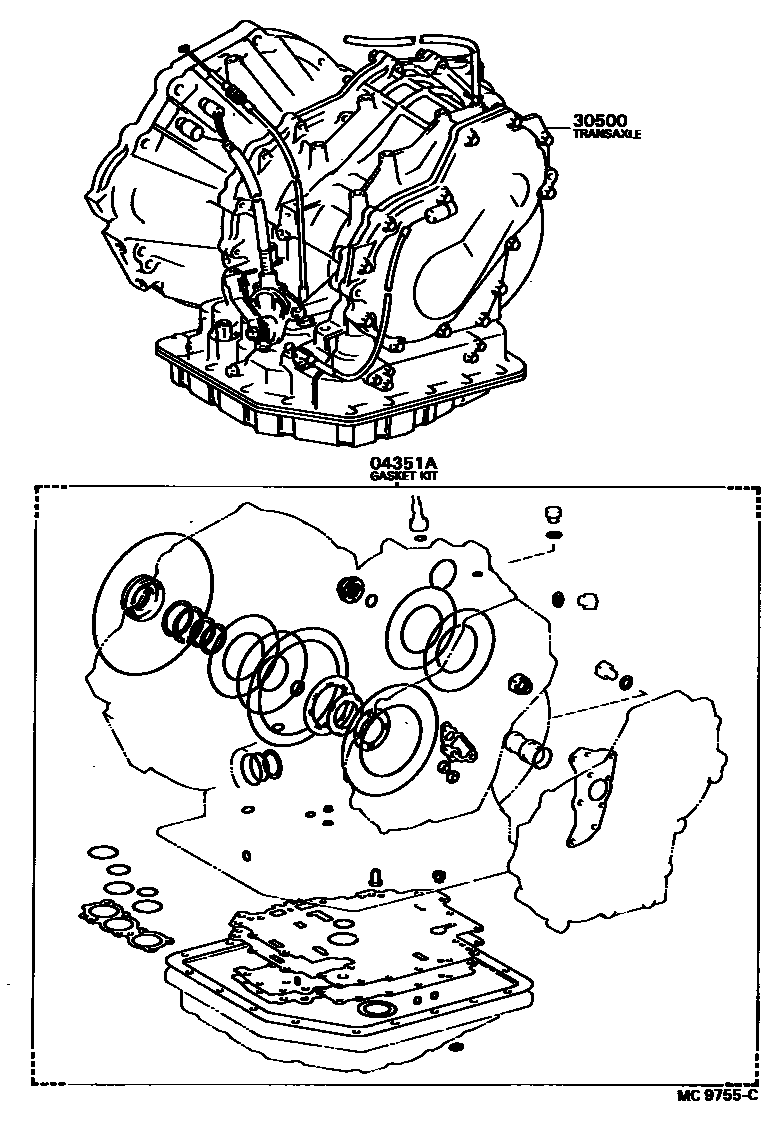

TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (ATM)

Parts diagram

04351AGASKET KIT, TRANSAXLE OVERHAUL(ATM)

main04351-20060i198508-198708

main04351-20080i198608-198708

main04351-20090i198508-198708

30500TRANSAXLE ASSY, AUTOMATIC

main30500-20190i198508-198607

main30500-20191i198607-198609

main30500-20192i198609-198704

main30500-20280i198508-198704

main30500-20281i198704-198708

main30500-20290i198508-198607

W/OIL COOLER

main30500-20291i198607-198609

W/OIL COOLER

main30500-20310i198608-198609

main30500-20311i198609-198704

main30500-20400i198704-198708

main30500-20410i198704-198708

2 parts on this diagram · 2 diagrams in section
