ENGINE OVERHAUL GASKET KIT

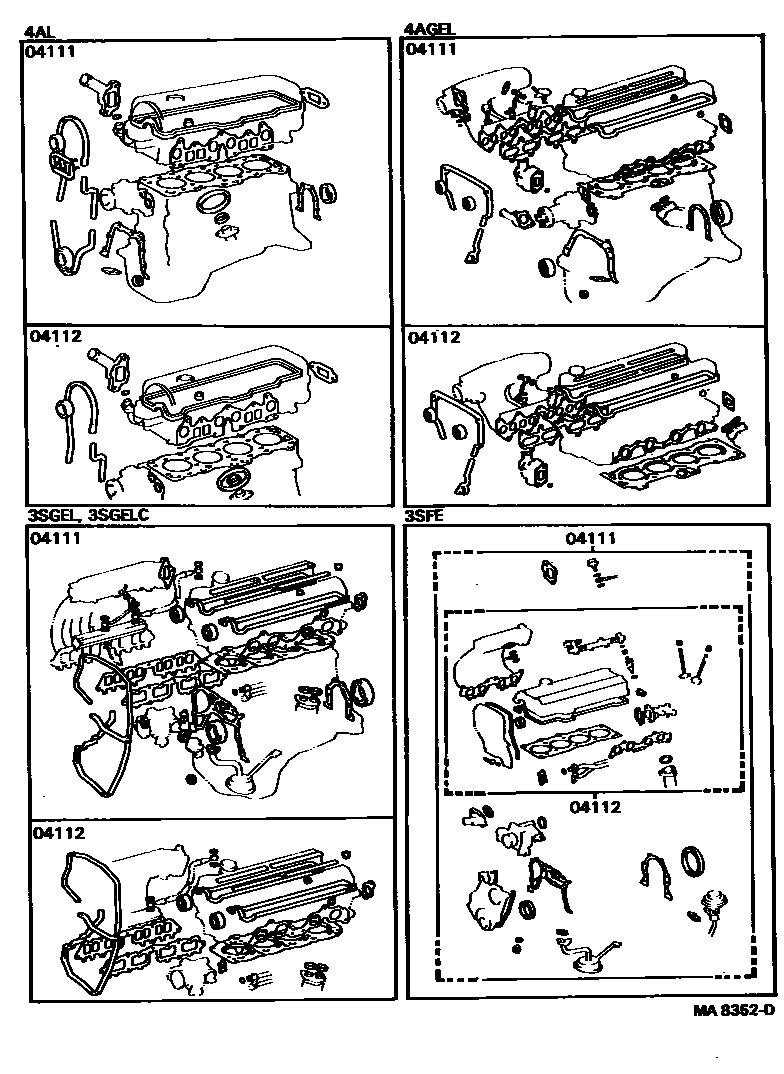

Parts diagram

04111GASKET KIT, ENGINE OVERHAUL

main04111-16071i198508-198708

main04111-16090i198508-198708

main04111-74031i198508-198610

main04111-74032i198610-198708

main04111-74040i198508-198610

main04111-74041i198610-198708

main04111-74050i198608-198610

main04111-74051i198610-198708

04112GASKET KIT, ENGINE VALVE GRIND

main04112-16071i198508-198708

main04112-16090i198508-198708

main04112-74031i198508-198708

main04112-74040i198508-198708

main04112-74050i198608-198708

2 parts on this diagram · 1 diagram in section
