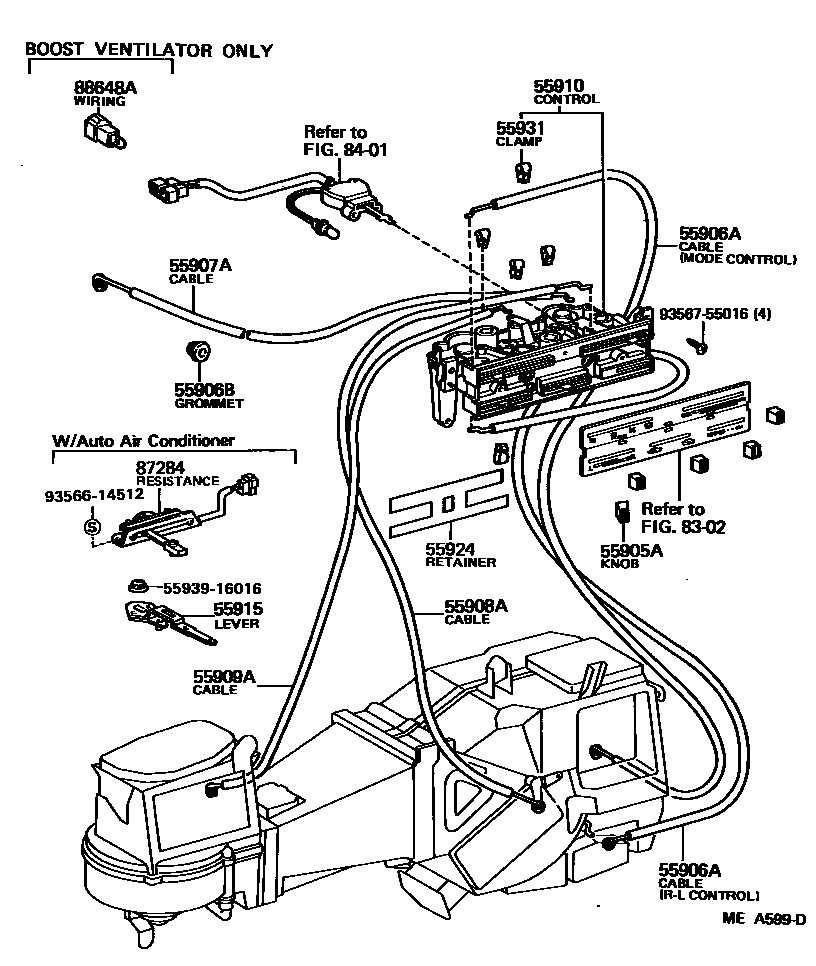

HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

0001 1 0002 1 0003 1 0004 1

55905AKNOB, HEATER CONTROL

main55905-12060×5iAA63,MA61,RA6#,SA63,TA60..ARL,EUR,GEN,ME,SAA198108-198512

main55905-12080×5iMA61..TWC..(EUR,SA);AA63,RA61,63,TA60..EUG198108-198512

*IPM

55906ACABLE SUB-ASSY, DEFROSTER DAMPER CONTROL

main55906-14130iAA63,MA61,RA6#,SA63..RHD198108-198512

L=550

main55906-14140iAA63,MA61,RA60,61,63,TA60..LHD198108-198512

L=470

main55906-14160iAA63,MA61,RA6#,SA63..RHD198108-198512

L=555

main55906-14170iAA63,MA61,RA60,61,63,TA60..LHD198108-198512

L=585

55906BGROMMET(FOR HEATER CONTROL CABLE)

main90480-01108iAA63,MA61,RA6#,SA63..RHD198108-198512

main90480-13009iAA63,RA60,61,63,TA60..LHD198108-198507

55907ACABLE SUB-ASSY, WATER VALVE CONTROL

main55907-14220iAA63,MA61,RA6#,SA63..RHD198108-198512

main55907-14230iAA63,RA60,61,63,TA60..LHD198108-198507

main55907-14240iMA61..LHD198112-198512

55908ACABLE SUB-ASSY, AIR INLET DAMPER CONTROL

main55908-14100iAA63,MA61,RA6#,SA63..RHD198108-198512

main55908-14110iAA63,MA61,RA60,61,63,TA60..LHD198108-198512

55909ACABLE SUB-ASSY, AIRMIX DAMPER CONTROL

main55909-14050iAA63,MA61,RA6#,SA63..RHD198108-198512

main55909-14060iAA63,MA61,RA60,61,63,TA60..LHD198108-198512

55910CONTROL ASSY, HEATER OR BOOST VENTILATOR

main55910-14290iAA63,MA61,RA6#,SA63..RHD198108-198512

main55910-14300iAA63,RA60,61,63..RHD..GEN198108-198507

W/BOOST VENTILATOR

main55910-14310iAA63,RA60,61,63..RHD..GEN198108-198507

W/COOLER & BOOST VENTILATOR

main55910-14320iAA63,MA61,RA60,61,63,TA60..LHD198108-198512

main55910-14340iMA61..SAA198308-198512

W/HEAVY DUTY HEATER

main55910-14350iAA63,RA60,61,63,TA60..LHD..(GEN,ME,SAA)198108-198507

W/BOOST VENTILATOR

main55910-14360iAA63,RA60,61,63,TA60..LHD..(GEN,SAA)198108-198507

W/COOLER & BOOST VENTILATOR

55915LEVER, COOLER CONTROL

main55917-14140iMA61..ARL198308-198512

W/*AAC

55924RETAINER, HEATER CONTROL, LOWER

main55924-14040iMA61..ARL198308-198512

55931CLAMP, HEATER CONTROL WIRE

main55933-14020×5iAA63,MA61,RA6#,SA63..RHD198108-198512

main55933-24010×5iAA63,MA61,RA60,61,63,TA60..LHD198108-198512

8302INDICATOR

→ Go to FIG 83-02

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

87284RESISTOR SUB-ASSY, VARIABLE

main88032-14070iMA61..ARL198308-198512

W/*AAC

main88032-14080iMA61..SAA198308-198512

W/*AAC

main88032-14090iAA63,RA60,61,63,TA60..GEN,ME,SAA198108-198507

W/BOOST VENTILATOR

88648AWIRING, COOLER

main88605-14450iAA63,RA60,61,63,TA60..GEN,ME,SAA198108-198512

W/BOOST VENTILATOR

5593916016ORNAMENT, HEATER CONTROL

main55939-16016

9356614512

main93566-14512

9356755016

main93567-55016

17 parts on this diagram · 4 diagrams in section
