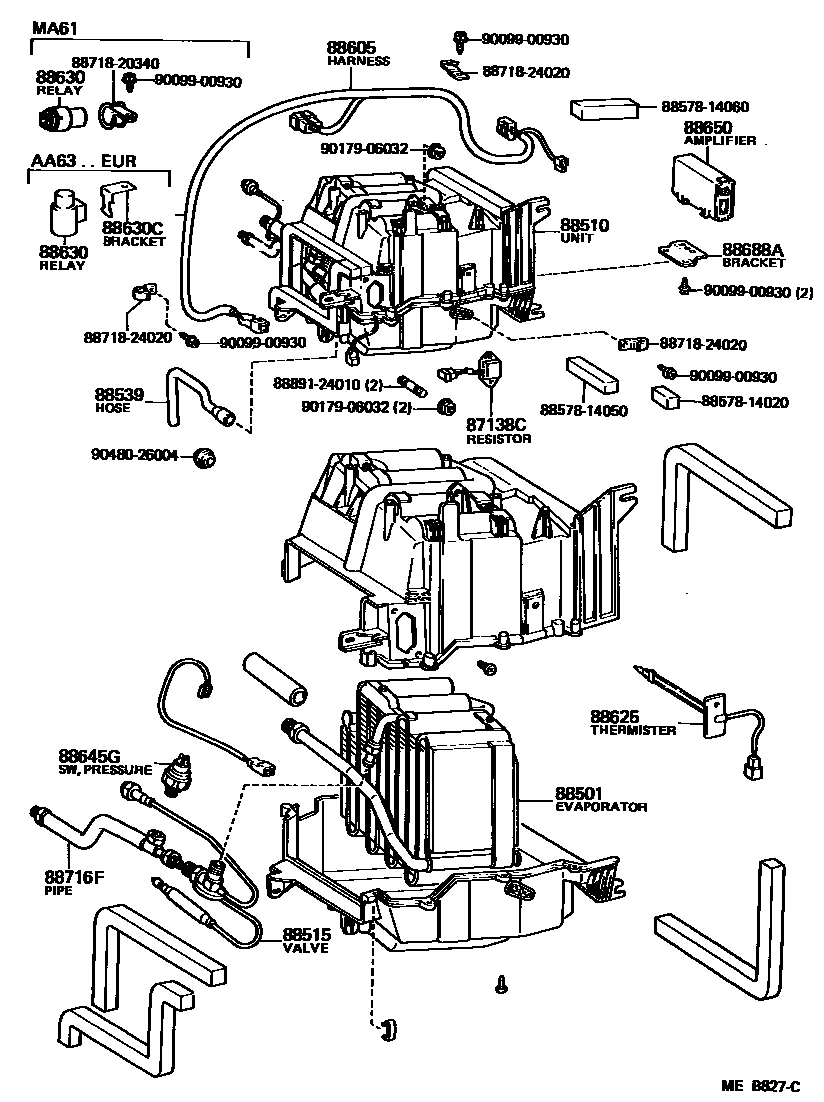

HEATING & AIR CONDITIONING - COOLER UNIT

0001 1 0004 1

87138CRESISTOR, BLOWER

main87138-14060iRA61..LHD..4FC;RA61..LHD..5F..EUG;AA63,RA60,63,TA60..LHD;RA61..5F..XT..(GEN,SAA)198108-198405

main87138-14061iAA63,TA60..LHD;RA61..LHD..4FC;RA61..LHD..5F..EUG;RA61..5F..XT..(GEN,SAA)198405-198507

main87138-24010iAA63,MA61,RA6#..RHD..(EUR,GEN)198108-198405

main87138-24011iAA63,MA61,RA61..RHD..(EUR,GEN)198405-198512

88501EVAPORATOR SUB-ASSY, COOLER, NO.1

main88501-14180iMA61,RA6#..RHD198108-198302

main88501-14190iRA61..LHD..EUG;MA61,RA60,63,TA60..LHD198108-198302

main88501-14191iMA61..LHD..TWC;RA61..LHD..4FC;RA61..LHD..5F..EUG;AA63,RA60,63,TA60..LHD;RA61..5F..XT..(GEN,SAA)198302-198512

main88501-24021iMA61,RA6#..RHD198302-198308

88510UNIT ASSY, COOLER

main88510-14320iAA63,MA61,RA6#..RHD198308-198512

main88510-14330iMA61..LHD..TWC..(EUR,GEN)198308-198512

main88510-14340iMA61..LHD..(GEN,SAA)198308-198512

W/*AAC

88515VALVE, COOLER EXPANSION

main88515-14050iMA61..LHD..(GEN,SAA)198308-198512

W/*AAC

main88515-20040iMA61..TWC..(EUR,GEN,SA)198308-198512

88539HOSE, COOLER UNIT DRAIN, NO.1

main88539-14060iAA63,TA60..LHD;MA61..LHD..TWC;RA61..LHD..4FC;RA61..LHD..5F..EUG;RA61..5F..XT..(GEN,SAA)198308-198512

main88539-14080iAA63,RA61..RHD198308-198507

main88539-24010iTA60;MA61,RA6#..RHD198108-198204

main88539-24020iMA61..RHD..TWC198204-198512

88605HARNESS SUB-ASSY, COOLER WIRING, NO.1

main88605-14330iAA63..GEN; TA60;RA61..RHD;RA61..LHD..4FC;RA61..LHD..5F..EUG;RA61..5F..XT..(GEN,SAA)198408-198507

main88605-14360iAA63,RA60,61,63,TA60..GEN,ME,SAA198108-198507

W/BOOST VENTILATOR

main88605-14500iMA61..5F..SAA;MA61..TWC..(EUR,GEN,SA)198112-198512

main88605-14710iAA63..EUG198408-198507

88625THERMISTOR, COOLER, NO.1

main88625-90A00iMA61..TWC..(EUR,GEN,SA)198308-198512

88630RELAY ASSY, COOLER

main88630-14030iAA63..EUG198408-198507

main90987-03001iMA61198112-198308

88630CBRACKET, COOLER RELAY

main88688-14640iAA63..EUG198408-198507

88645GSWITCH, PRESSURE

main88645-30250iRA61..EUG;MA61,RA60,63,TA60198108-198308

88650AMPLIFIER ASSY, COOLER STABILIZER

main88650-14030iMA61..5F..SAA;MA61..TWC..(EUR,GEN,SA)198112-198512

main88650-14070iAA63,TA60;RA61..RHD;RA61..LHD..4FC;RA61..LHD..5F..EUG;RA61..5F..XT..(GEN,SAA)198308-198507

main88650-14130iMA61..LHD..(GEN,SAA)198308-198512

W/*AAC

main88650-14150iRA65198408-198507

88688ABRACKET, COOLER STABILIZER AMPLIFIER

main88688-14320iMA61,RA6#..RHD198108-198308

main88688-14480iRA61..LHD..EUG;MA61,RA60,63,TA60..LHD198108-198308

88716FPIPE, COOLER REFRIGERANT LIQUID, F

main88716-14820iMA61..LHD..TWC;RA61..LHD..4FC;RA61..LHD..5F..EUG;AA63,RA60,63,TA60..LHD;RA61..5F..XT..(GEN,SAA)198108-198512

main88716-24010iMA61,RA6#..RHD198108-198308

8857814020PAKING, COOLER AIR DUCT

main88578-14020

8857814050PAKING, COOLER AIR DUCT

main88578-14050

8857814060PAKING, COOLER AIR DUCT

main88578-14060

8871820340PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-20340

8871824020PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-24020

8889124010PACKING (FOR COOLER)

main88891-24010

9009900930

main90099-00930

9017906032

main90179-06032

9048026004

main90480-26004

22 parts on this diagram · 2 diagrams in section
